| Quantity: | |
|---|---|

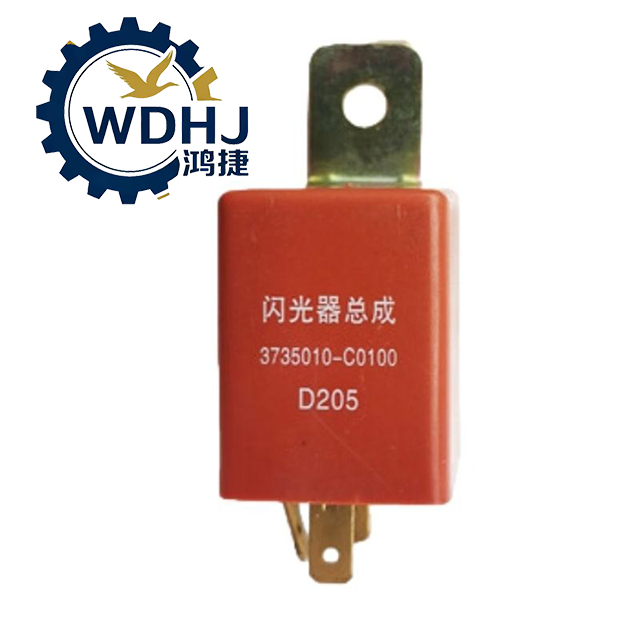

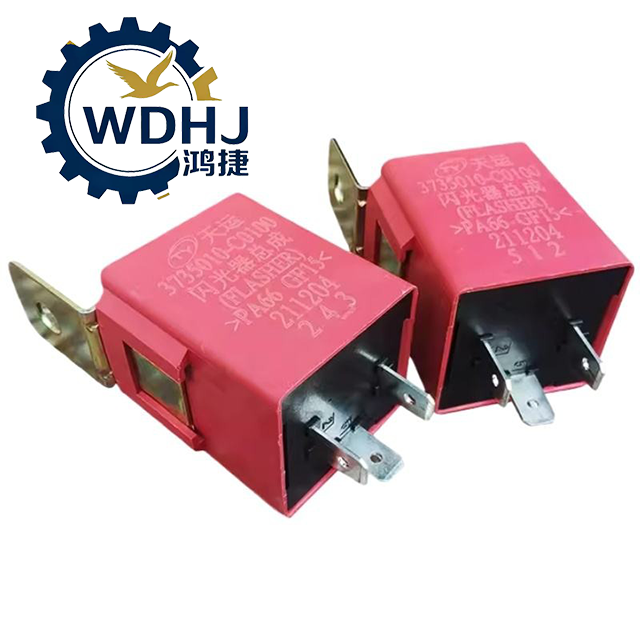

3735010-C0100
Dongfeng
| Attribute | Description |
|---|---|
| Product Name | Flasher Relay Assembly / Turn Signal Flasher Unit |
| OEM Part Number | 3735010-C0100 |
| Function | Controls blink rate of turn signals and hazard warning lights |
| Mounting Type | Plug-in or screw-mounted relay (fits standard relay socket) |
| Application | Turn Indicators, Hazard Warning System |
| Relay Type | Electronic Flasher (Solid-State or Hybrid) |
| Voltage System | 24V DC (Standard for Heavy-Duty Commercial Vehicles) |
| Load Capacity | Supports multiple lamps (typically up to 6–8 bulbs per side) |
| Flashing Frequency | Standard: 60–120 flashes per minute (~1–2 Hz) |
| Status Indicator | Some versions include pilot lamp or test function |
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC (Nominal), operates within 20–28V range |
| Operating Current | Max load: ~10A (adjustable based on connected lamp wattage) |
| Flash Rate | 60–120 cycles/min (adjusts automatically with load) |
| Type of Output | Pulse-width modulated (PWM) or relay-switched output |
| Compatibility | Works with incandescent bulbs and compatible LED turn signals |
| Circuit Protection | Overload, short-circuit, and reverse polarity protection (on advanced models) |
| Insulation Resistance | ≥ 10 MΩ at 500V DC |
| Dielectric Strength | Withstands 500V AC for 1 minute |
| Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Housing Material | Flame-retardant engineering plastic (UL94-V0) |
| Connector Type | ISO 20-pin plug or 4–5 pin relay base (e.g., ISO 2594) |
| Compliance Standards | Meets GB/T, QC/T, ECE R6, and ISO 10232 automotive lighting regulations |
