C03054-20
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | C03054-20 |

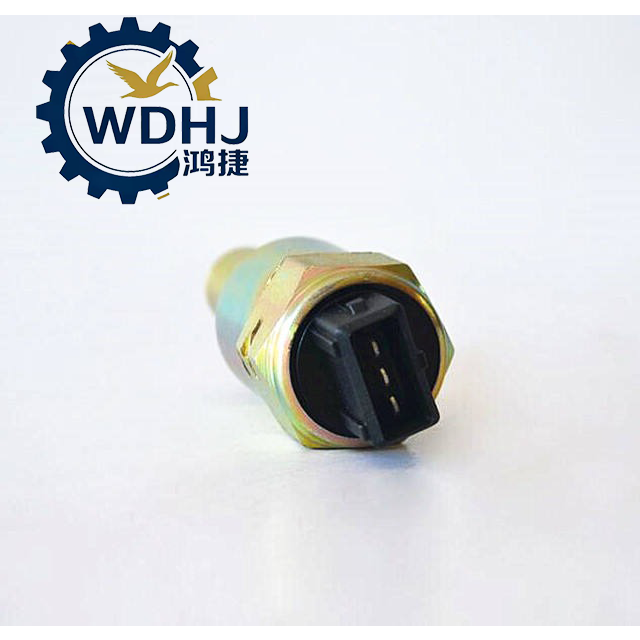

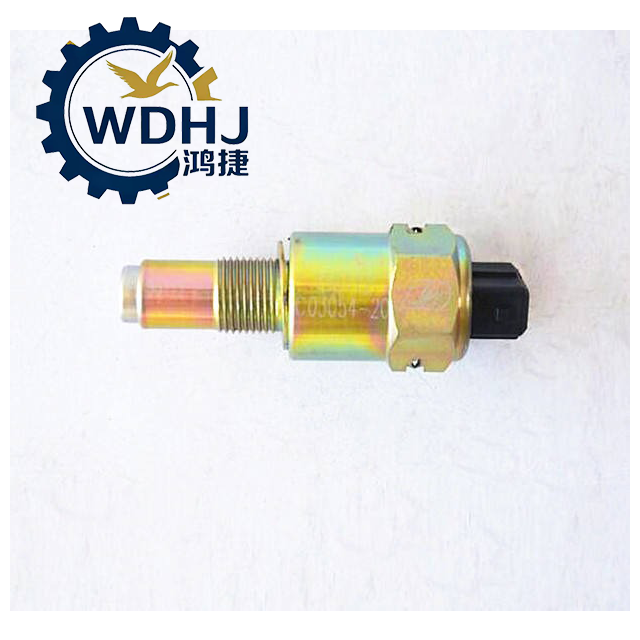

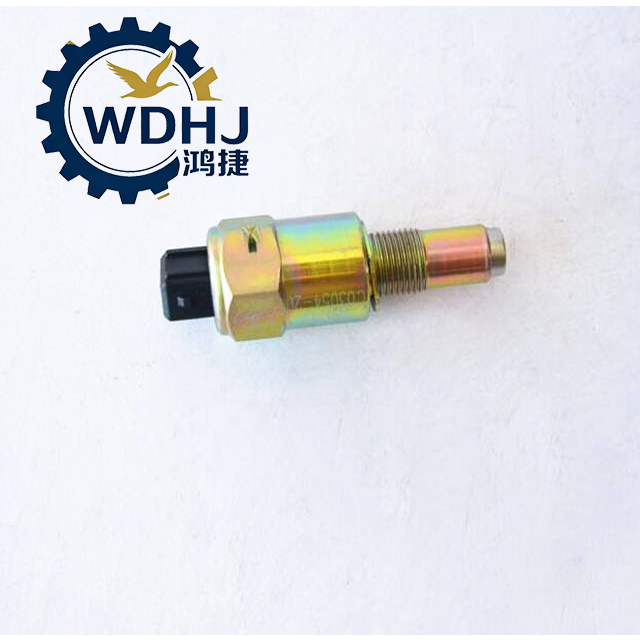

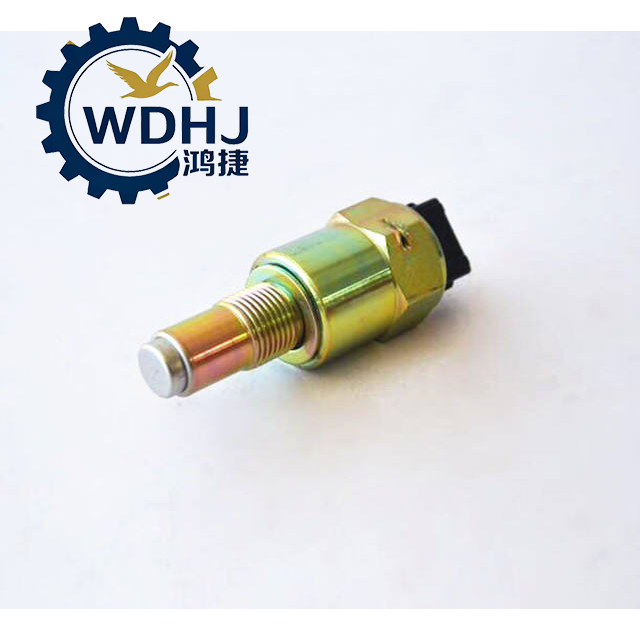

| Product Name | Electronic Vehicle Speed & Odometer Sensor Assembly |
| Sensor Type | Active Magnetic / Hall-Effect Digital Sensor |
| Function | Measures vehicle speed and cumulative distance (odometer) |
| Installation Location | Mounted on transmission case or rear axle differential |
| Signal Output Type | Digital square wave pulse signal (frequency proportional to speed) |
| Connector Type | 2-pin sealed automotive connector (waterproof) |
| Housing Material | Reinforced engineering plastic + metal threaded base |
| Sensing Technology | Hall-effect or variable reluctance (depending on version) |
| Thread Size | M16 × 1.5 (standard thread for most applications) |
| Mounting Method | Screw-in with O-ring seal (axial or radial mounting orientation) |
| Sealing Type | Integrated rubber O-ring for dust and water protection |
| Compatibility | Designed as direct replacement for original equipment |
| Application Vehicle Type | Heavy-duty trucks, buses, medium-duty commercial vehicles |
| Manufacturer Standard | Dongfeng OE specification; also fits Foton, Sinotruk, and select export models |
| Certifications | ISO 9001, TS 16949, GB/T 28046 compliant |
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V – 24V DC (typically powered by ECU or cluster) |
| Output Signal Frequency | Proportional to wheel speed (e.g., ~4,000 Hz at 100 km/h) |
| Pulse Per Revolution (PPR) | Typically 48 or 96 pulses per revolution (model-dependent) |
| Detection Gap (Air Gap) | 0.3 mm – 1.0 mm (between sensor tip and tone ring) |
| Operating Temperature Range | -40°C to +150°C (-40°F to +302°F) |
| Storage Temperature | -50°C to +170°C |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Withstand Voltage | 500V AC for 1 minute (no breakdown) |
| Vibration Resistance | Meets GB/T 28046-4 / ISO 16750-3 standards |
| Shock Resistance | Up to 100g (6ms half-sine pulse) |
| Cable Length (if applicable) | Approx. 1.0 m – 1.5 m (varies by harness kit) |
| Response Time | < 1 ms |
