3527010-92100
Dongfeng
| Attribute | Description |
|---|---|

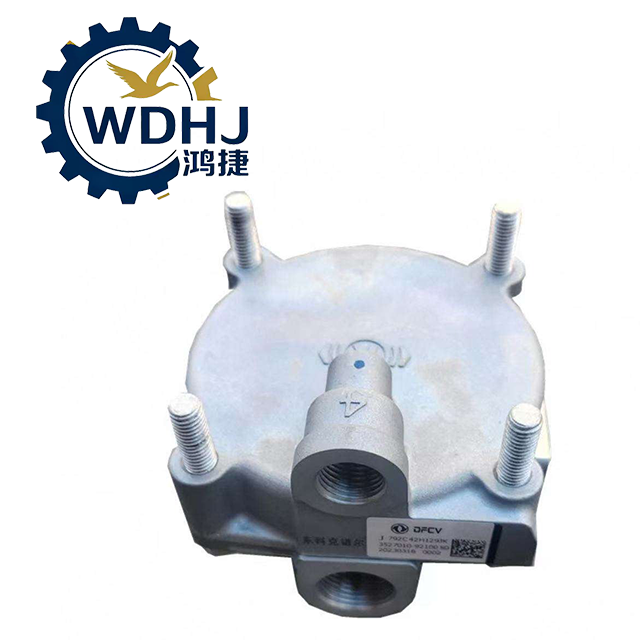

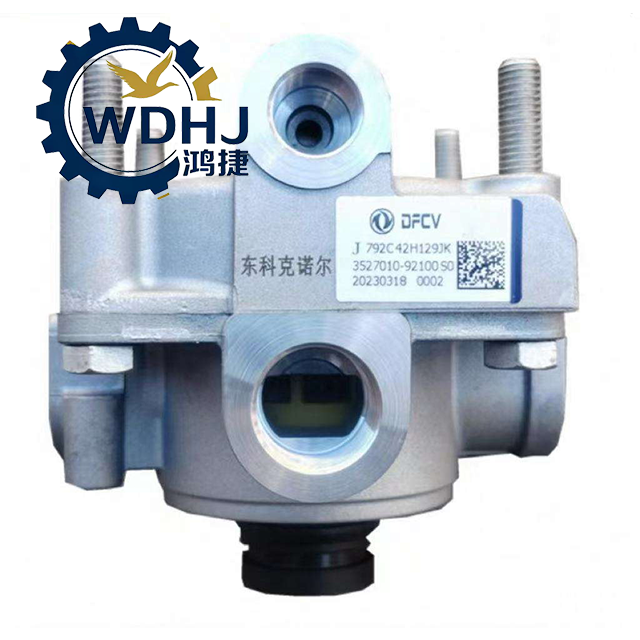

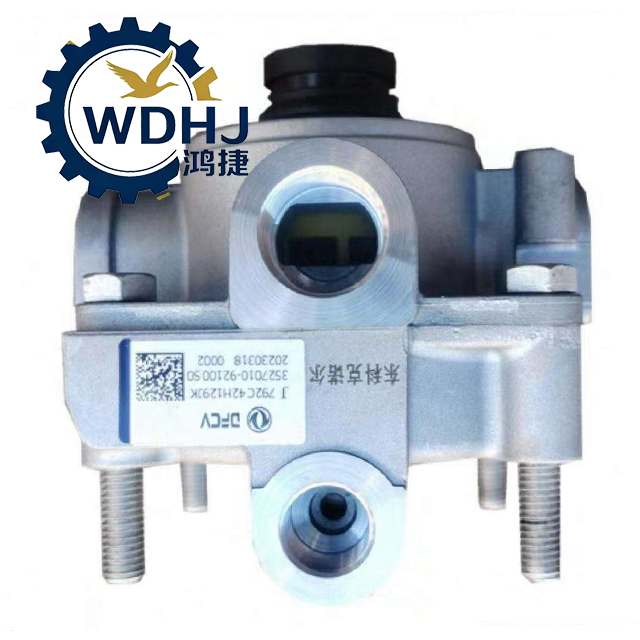

| Product Name | Relay Valve Assembly / Quick Release Relay Valve |
| OEM Part Number | 3527010-92100 |
| Function | Amplifies pilot air signal to apply full-service brake pressure quickly |
| Application | Pneumatic Brake Systems – Front/Rear Axle Brake Circuits |
| Valve Type | Diaphragm-Type Relay Valve with Inlet, Outlet, Exhaust Ports |
| Control Signal Input | Low-pressure pilot line from brake pedal valve or ABS unit |
| Output Function | Delivers high-volume compressed air from main reservoir to brake chambers |
| Release Feature | Fast exhaust design for quick brake release and reduced drag |
| Mounting Style | Bracket-mounted with rubber bushing or metal flange |
| Sealing Material | Nitrile Rubber (NBR) or HNBR for oil and temperature resistance |
| Parameter | Specification |
|---|---|
| Operating Pressure Range | 0.5 MPa – 1.0 MPa (72–145 psi) |
| Nominal Port Sizes | - Supply Port (P): G1/4" or ISO 1/4" NPT - Control Port (S): G1/4" - Output Port (A): G1/4" - Exhaust Port (E): Open muffler or hose barb |
| Response Time | ≤ 0.2 seconds (from signal input to full output) |
| Exhaust Speed | Rapid depressurization to minimize brake dragging |
| Flow Capacity (CV Value) | High-flow design (~2.5–3.0 Cv), supports multi-chamber operation |
| Working Medium | Compressed Air (dried and filtered) |
| Temperature Range | -40°C to +80°C (-40°F to 176°F) |
| Protection Class | IP65 – Dust-tight and protected against water jets |
| Weight | Approx. 1.1–1.3 kg |
| Material Construction | Die-cast aluminum body, stainless steel fasteners, internal rubber diaphragms |
