4932320
Dongfeng
| Attribute | Description |
|---|---|

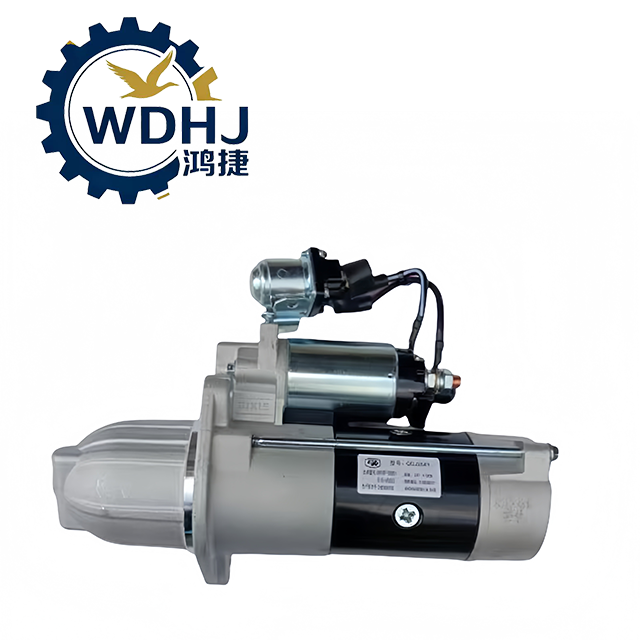

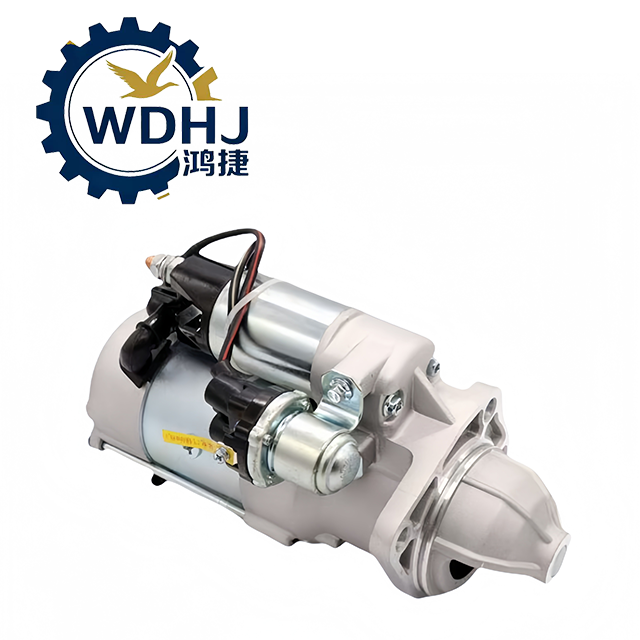

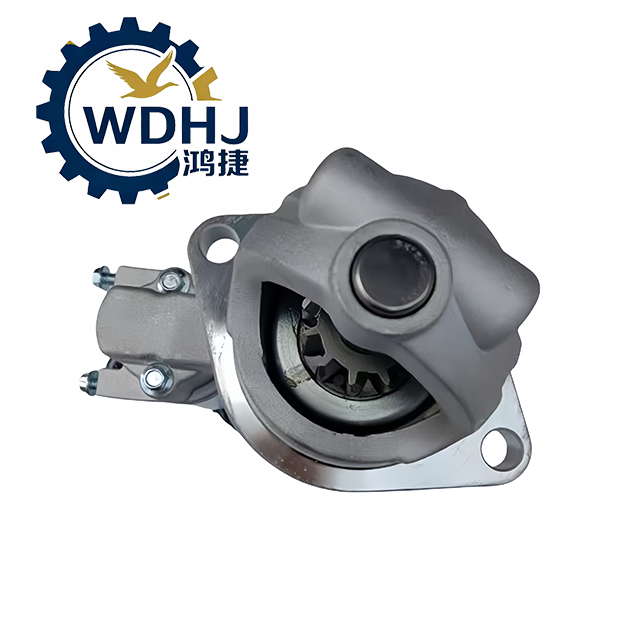

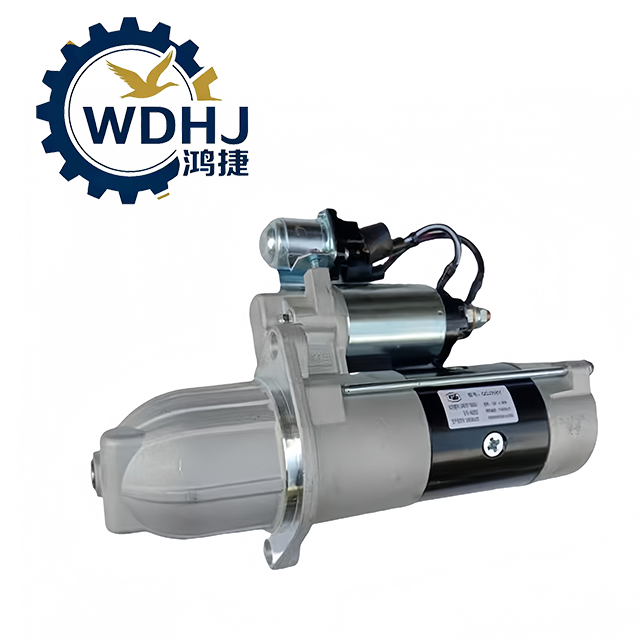

| Product Name | Starting Motor Assembly / Starter Motor |
| OEM Manufacturer | Cummins Inc. |
| OEM Part Number | 4932320 |
| Function | Cranks diesel engine to initiate startup |
| Application | Heavy-Duty Diesel Engines – Trucks, Construction Equipment, Buses |
| Drive Type | Bendix-Type Overrunning Clutch with Axial Engagement |
| Control Method | Electromagnetic Switch (Solenoid-Controlled) |
| Rotation Direction | Clockwise (CW), as viewed from pinion end |
| Duty Cycle | Intermittent (S2), suitable for short-duration cranking |
| Environmental Rating | Dust-resistant and splash-proof design for harsh operating environments |
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC (Standard for Commercial Vehicle Systems) |
| Rated Output Power | 5.5 kW – 6.5 kW (depending on configuration) |
| Pinion Gear Teeth | 10T (10 teeth, standard mesh with flywheel ring gear) |
| Drive Mechanism | Inertia-type Bendix drive with pre-engagement solenoid |
| No-Load Speed | ~5,000 RPM |
| Full-Load Current | 800–1,300 A (varies with engine compression and temperature) |
| Mounting Configuration | Flange-mounted (typically 3-bolt pattern) |
| Shaft Type | D-cut or splined shaft for secure gear attachment |
| Insulation Class | Class H (withstands up to 180°C) |
| Protection Level | IP54 – Protected against dust ingress and water splashes |
| Weight | Approx. 11–13 kg |
