5005011-C4300
Dongfeng
| Attribute | Description |
|---|---|

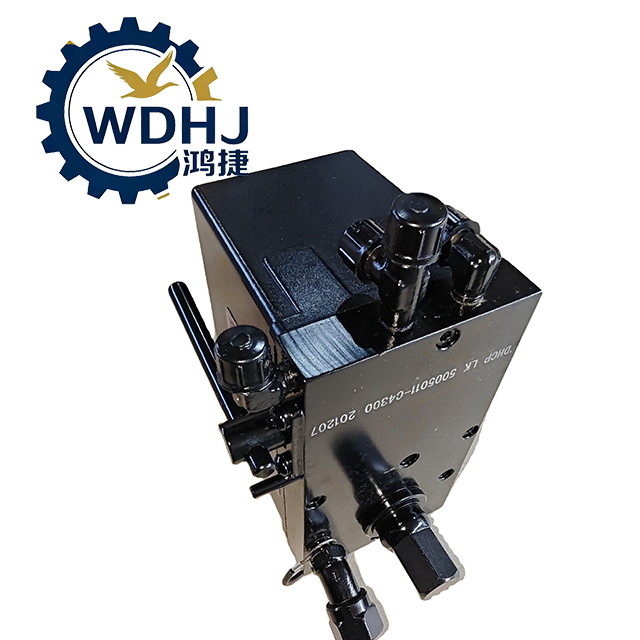

| Product Name | Electric Cab Lift Pump / Electric Hydraulic Tilting Pump Assembly |
| OEM Part Number | 5005011-C4300 |
| Function | Drives hydraulic system to raise and lower the truck cab for engine access |
| Drive Type | Electric Motor-Driven + Integrated Manual Override Option |
| Application | Heavy-Duty Commercial Trucks – Cab Tilt Systems |
| Control Method | Electronically Controlled (Auto), with Emergency Manual Operation Capability |
| Built-in Safety | Pressure Relief Valve, Limit Control, Overload Protection |
| Origin | Manufactured in Hubei, China (Dongfeng Production Base) |
| Quality Standard | Complies with ISO/TS 16949 Automotive Quality Management System |
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC (Standard for Commercial Truck Electrical Systems) |
| Operating Current | Typically 15–25A (varies by load and condition) |
| Hydraulic Output Pressure | Adjustable; equipped with overflow valve (~120–160 bar max, system-dependent) |
| Pump Type | Gear or Piston-Type Hydraulic Pump (integrated motor-pump unit) |
| Reservoir Capacity | Integrated oil tank (~1.0–1.5L typical, check actual unit) |
| Lifting Speed | Smooth and controlled ascent/descent (full cycle ~30–50 seconds) |
| Mounting Position | Typically mounted near front chassis frame or radiator support |
| Material Construction | High-Strength Corrosion-Resistant Metal Housing (Cast Iron/Steel Alloy) |
| Sealing Performance | NBR/FKM Seals for Oil Resistance and Long Service Life |
