| Quantity: | |
|---|---|
3750410-C0100
Dongfeng
| Attribute | Specification |
|---|---|

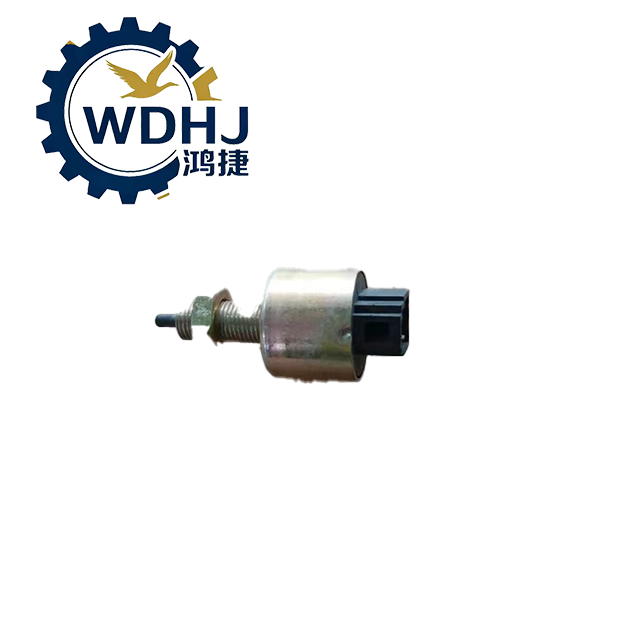

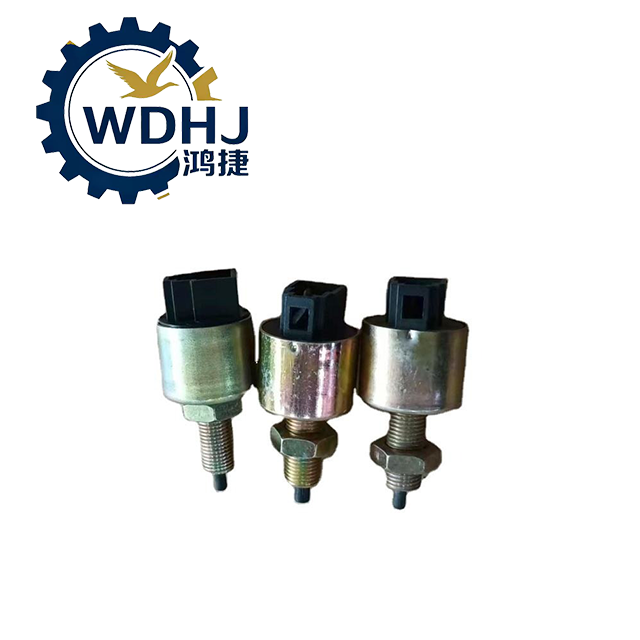

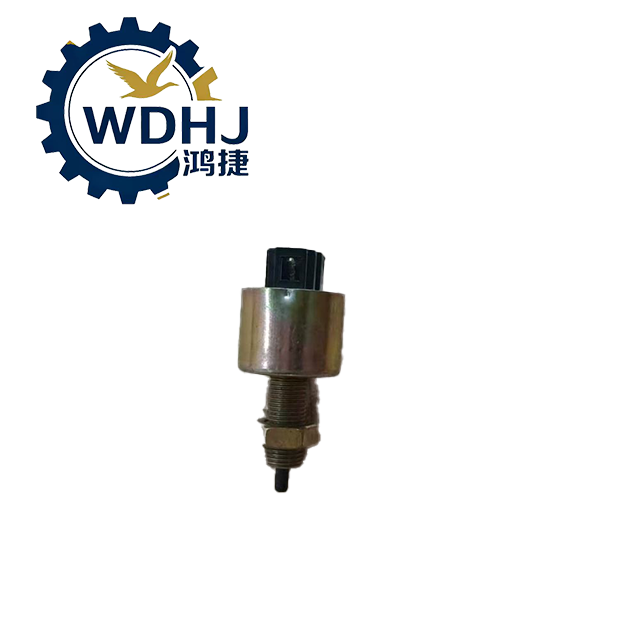

| Product Name | Reverse Light Switch / Reverse Gear Position Sensor |
| Manufacturer | Dongfeng Commercial Vehicles Co., Ltd. (OEM) |
| Primary Part Number | 3750410-C0100 |
| Alternative Names | Backup Light Switch, Transmission Reverse Switch |
| Operating Voltage | 24V DC (standard for heavy-duty trucks) |
| Contact Type | Normally Open (NO) — closes on plunger compression |
| Mounting Thread | M18 × 1.5 mm (fine thread; some variants use M16 × 1.5) |
| Actuation Method | Mechanical push-type plunger |
| Housing Material | High-strength brass or stainless steel (oil-resistant) |
| Contact Material | Hard-wearing alloy tip (resistant to arcing and wear) |
| Sealing Level | IP67 – Dust-tight and protected against temporary immersion |
| Operating Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Connector Type | 2-pin waterproof plug (round or square interface) |
| Application Class | Heavy-Duty Manual Transmissions |
| Parameter | Value / Detail |
|---|---|
| Electrical Rating | 24V DC, up to 5A resistive load |
| Plunger Stroke | ~1.5–2.0 mm (ensures reliable contact closure upon shift) |
| Switch Function | Momentary closed circuit during reverse gear engagement |
| Environmental Resistance | |
| - Oil Immersion | Resists gear oil penetration |
| - Vibration | Withstands continuous road shock and gear impact |
| - Thermal Cycling | Stable performance from cold start to hot idle |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | > 1,000V AC between terminal and housing |
| Weight | Approx. 150–220 g |
