| Attribute | Description |
|---|---|

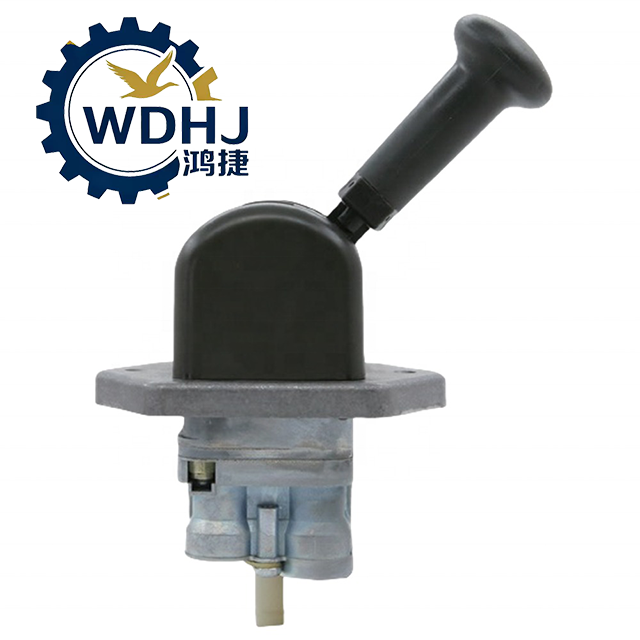

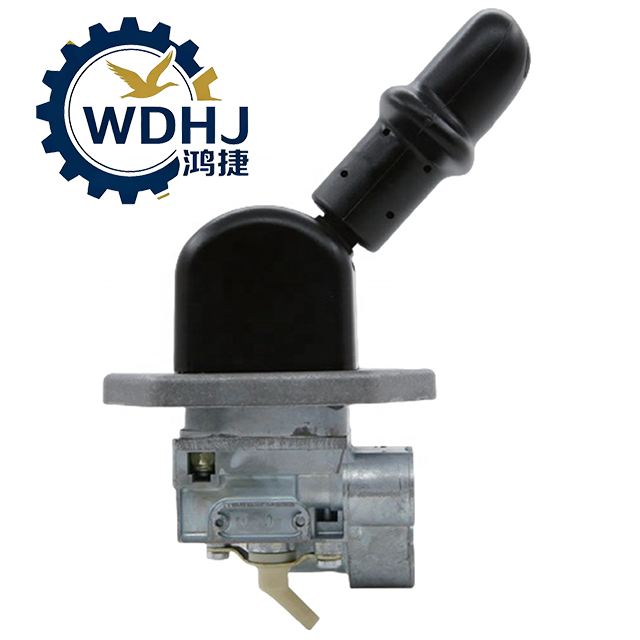

| Product Name | Manual Control Valve Assembly / Hand Control Valve |
| OEM Part Number | 3517020-H0100 |
| Function | Manually controls compressed air distribution in pneumatic systems |
| Operation Type | Lever-type, push-pull or toggle action (3-position common) |
| Application | Parking Brake Release, Trailer Brake Control, Auxiliary Air Systems |
| Control Positions | Typically 3-position: Apply – Neutral – Release |
| Mounting Location | Dashboard or console within driver’s reach |
| Sealing Material | Nitrile Rubber (NBR) or HNBR for oil and temperature resistance |
| Valve Body Material | Die-cast aluminum or engineering plastic with metal internals |
| Protection Level | IP65 – Dust-tight and protected against water jets |
| Parameter | Specification |
|---|---|
| Operating Pressure Range | 0.5 MPa – 0.8 MPa (72–116 psi) |
| Nominal Port Sizes | - Inlet (P): G1/4" NPT/F - Outlet A / B: G1/4" - Exhaust (E): M10×1 or hose barb |
| Working Medium | Clean, dry compressed air |
| Temperature Range | -40°C to +80°C (-40°F to 176°F) |
| Actuation Method | Manual lever (spring return or detent lock options) |
| Flow Path Configuration | 3/2-way or 4/2-way (depending on version) |
| Leakage Rate | < 3 cm³/min at max pressure (meets GB/T and QC/T standards) |
| Durability Life | ≥ 100,000 cycles under normal operation |
| Weight | Approx. 0.6–0.9 kg |
| Compliance Standards | Meets QC/T 1145-2019, GB16919, ISO 5782-1 |
