| Quantity: | |
|---|---|
1103010-Q205
FAW
| Attribute | Description |
|---|---|

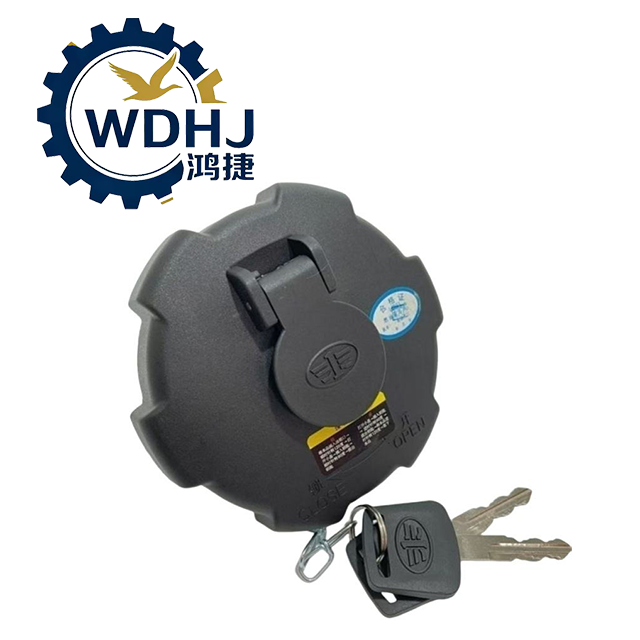

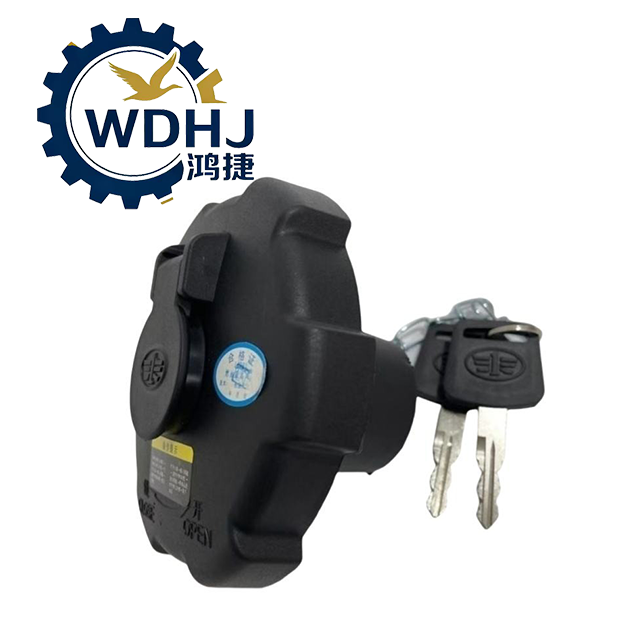

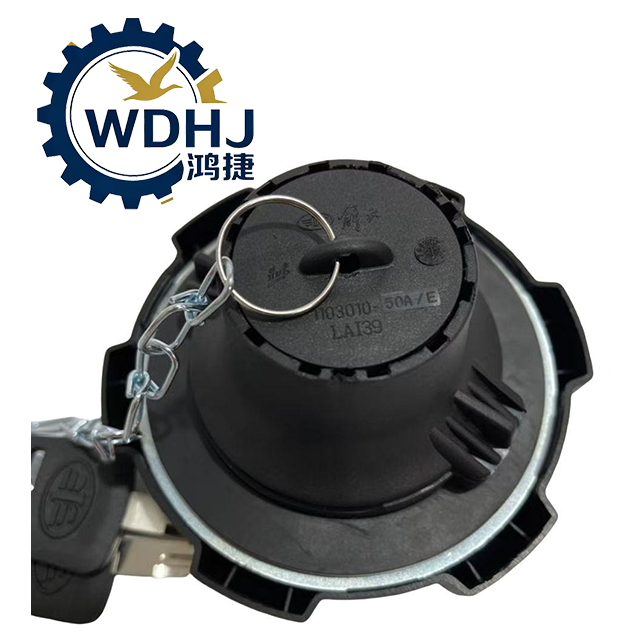

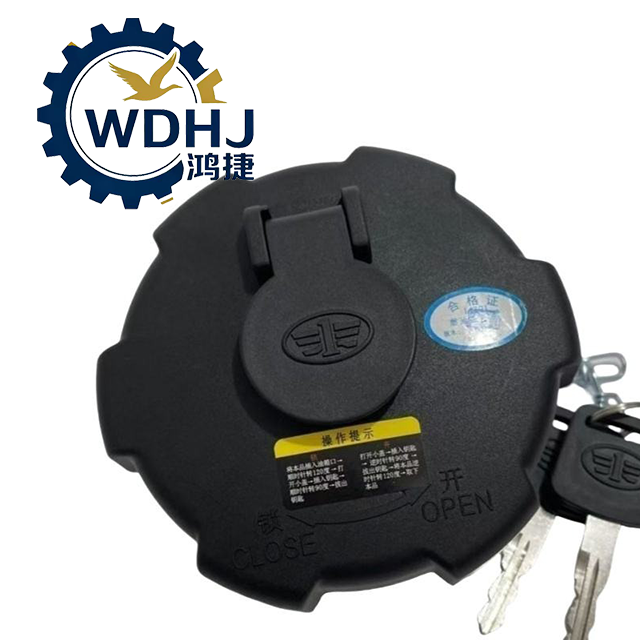

| Product Name | Fuel Tank Cap / Filler Cap Assembly |
| Manufacturer | FAW Jiefang Co., Ltd., China |
| Type | Non-locking (standard), compatible with optional locking versions |
| Function | Seals fuel tank opening; prevents leaks, evaporation, and foreign matter entry |
| Application | Diesel fuel tanks on FAW J series trucks (steel or aluminum tanks) |
| Sealing Material | Nitrile rubber (NBR) O-ring — highly resistant to diesel and aging |
| Valve Feature | Built-in pressure/vacuum relief valve for automatic pressure balancing |
| Color | Standard black (UV-stabilized) |
| Quality Standard | Complies with FAW Q/FAW enterprise standards; tested for seal integrity, durability, and chemical resistance |
| Parameter | Value / Detail |
|---|---|
| OEM Part Number | 1103010-Q205 |
| Alternate Variants | - 1103010-Q205/B (supplier revision) - 1103010-50AF (locking/keyed version) - 1103010-240-0000 (alternate batch code) |
| Cap Type | Twist-on, threaded design with bayonet-style locking mechanism |
| Thread Compatibility | Matches standard FAW diesel fuel tank filler necks (M60×1.5 typical) |
| Material Composition | - Outer Shell: Reinforced engineering plastic (ABS/PA-based) - Internal Structure: Zinc-coated steel - Seal: NBR rubber |
| Breather Valve Function | Automatically regulates internal tank pressure: - Releases at ~+3 psi (over-pressure) - Intakes at ~–1 psi (under-vacuum) |
| Operating Temperature | –40°C to +85°C |
| Fuel Resistance | Resistant to diesel, biodiesel blends (B20), and common contaminants |
| Packaging | Single unit per package (1 pc/box) |
| Weight | Approx. 180–220 grams |
