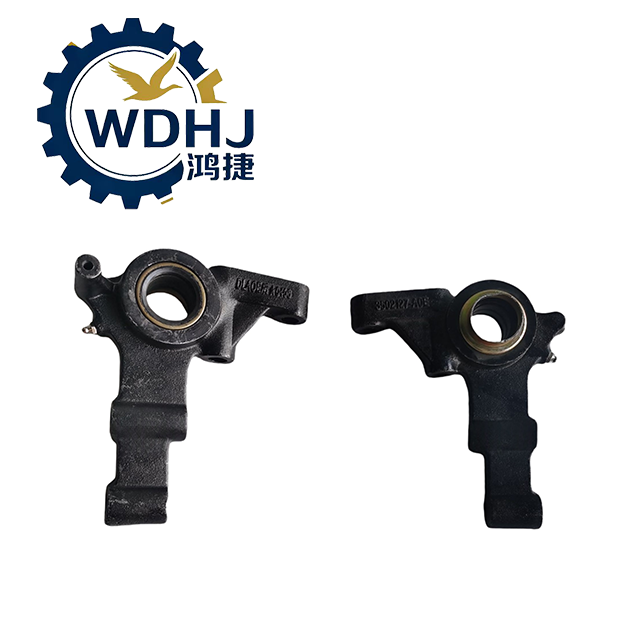

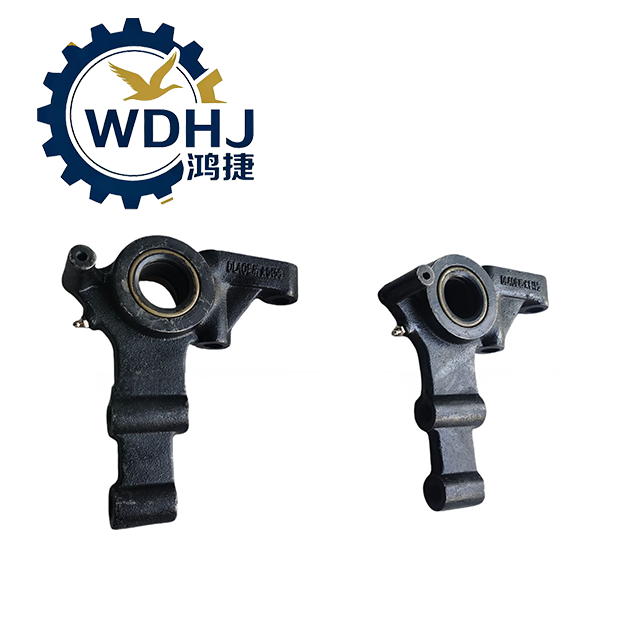

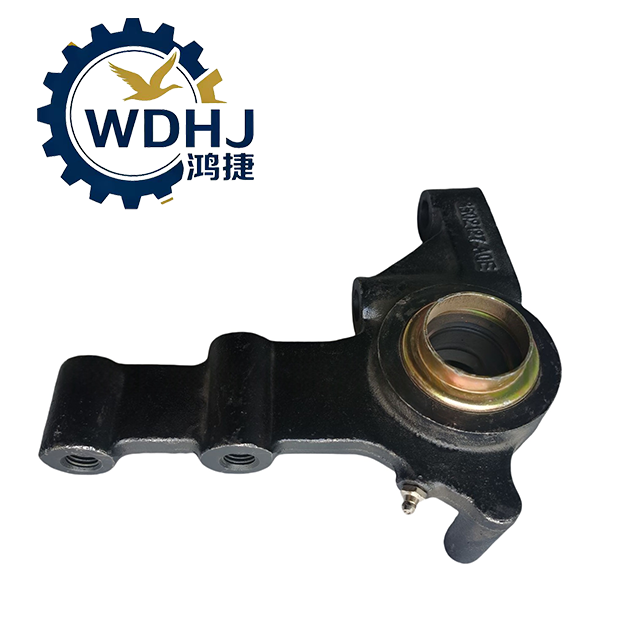

The Left Rear Brake Camshaft Bracket (Part No. 3502127-A0E) is an original equipment (OE) structural component produced by FAW Jiefang for use in the drum brake systems of its heavy- and medium-duty commercial trucks. As a critical mounting support for the brake camshaft, this bracket ensures precise alignment and stable operation of the S-cam braking mechanism on the left side of the rear axle.

Constructed from high-strength cast steel or ductile iron, it is engineered to withstand repeated high-load impacts during frequent braking cycles — especially under full-load conditions common in long-haul freight, mining, and construction transport. The bracket provides secure housing for the camshaft bushing and features a grease nipple (Zerk fitting) to allow periodic lubrication, minimizing wear and ensuring smooth brake return action.

Quantity:
Availability:





Inquire Add to Basket

Model:
3502127-AOE
Brand:
FAW

Product Description

Attribute	Description
Product Name	Left Rear Brake Camshaft Bracket / Support
Manufacturer	FAW Jiefang Co., Ltd., China
Type	OE Replacement Part – Structural Mounting Bracket
Function	Supports and aligns the brake S-cam shaft; transfers actuator pushrod motion into brake shoe expansion
Application	Drum brake system – rear axle, left side
Material	High-quality cast steel or ductile (nodular) iron
Surface Treatment	Anti-rust coating or powder paint finish
Design Standard	Meets IATF 16949 automotive quality standards; precision-machined for fitment accuracy
Mounting Side	Left-hand side (LH) of the rear axle

Parameter	Value / Detail
OEM Part Number	3502127-A0E (also written as 3502127-AOE)
Side Designation	Left-side bracket only
Counterpart (Right Side)	3502128-A0E (mirror image for right side)
Material Type	Cast steel or ductile iron (tensile strength ≥ 600 MPa)
Bushing Bore Diameter	Designed for standard S-cam bushings (typically Ø25–Ø30 mm)
Positional Tolerance	±0.02 mm (machined using CNC processing center)
Grease Nipple (Zerk Fitting)	Yes – allows regular greasing of camshaft pivot point
Heat Resistance	Stable under brake operating temperatures up to +300°C
Weight	Approx. 3.5 kg – 4.2 kg
Quality Certification	Complies with IATF 16949, ISO14001, and FAW internal inspection protocols
