| Quantity: | |
|---|---|
DZ9114160044
FAW
| Attribute | Specification |
|---|---|

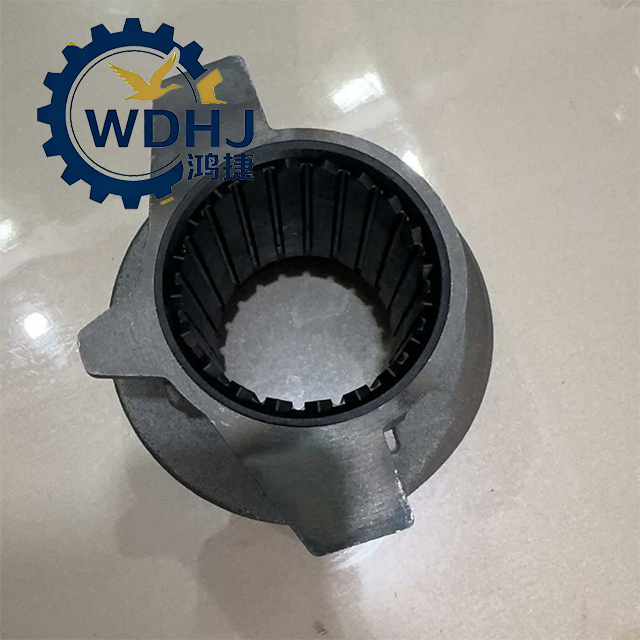

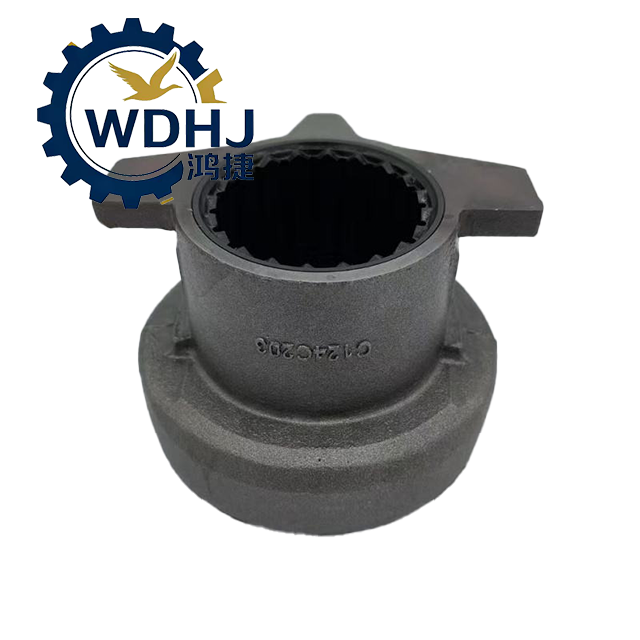

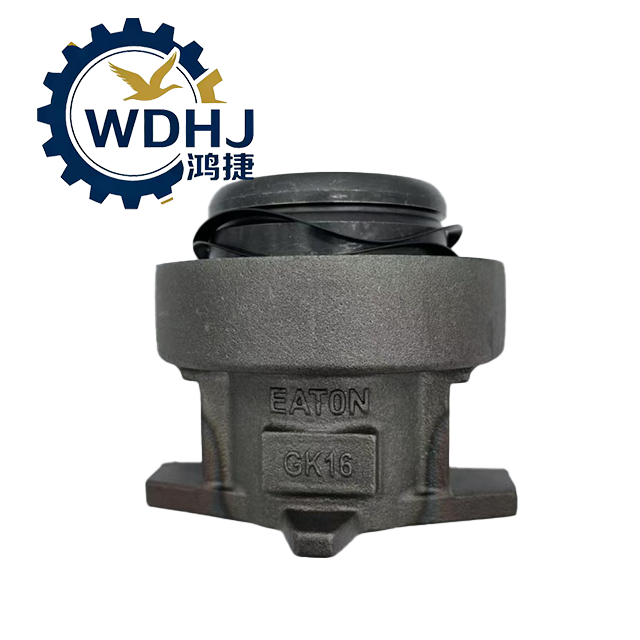

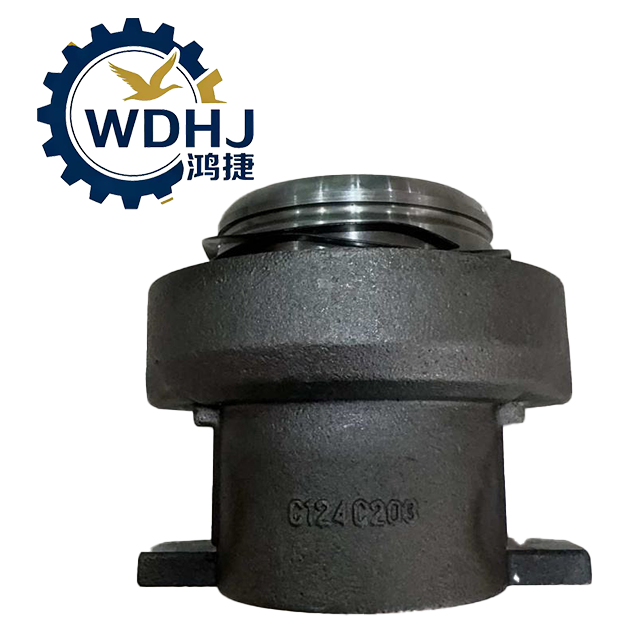

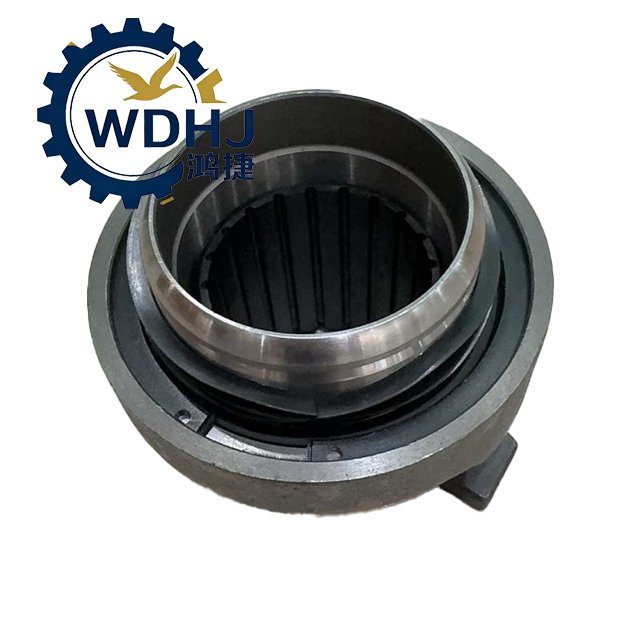

| Product Name | Clutch Release Bearing (Throwout Bearing / Thrust Bearing) |
| Part Number | DZ9114160044 |
| Alternate Numbers | 85CT5787F2, 86CL6395F0, 86CL6395F0R, C124C203, 125693, 125693XA..., DZ9114160044-WX |
| Type | Ball-Type Rolling Bearing, Push/Pull Compatible (Commonly Used in Pull-Type Systems) |
| Vehicle Application | Shacman F2000, F3000, L3000, M3000, X3000, X6000 Series |
| Engine Compatibility | High-Output Diesel Engines (e.g., Weichai WP12, WP13; Cummins ISGe) |
| Primary Function | Transmits force from release fork to pressure plate for clutch disengagement |
| Main Material | High-Quality Chrome Steel / Bearing Steel (GCr15 or equivalent) |
| Sealing Type | Double-Sealed or Open Design (varies by manufacturer) |
| Weight | Approx. 1.1 – 1.4 kg |
| Mounting Location | Slides over clutch release sleeve (guide tube) inside bell housing |
| Parameter | Value |
|---|---|
| Outer Diameter (OD) | 120 mm – 190 mm (standard range; exact size matches OEM spec) |
| Inner Diameter (ID) | Matches input shaft guide sleeve (~40–50mm typical) |
| Width/Thickness | Varies by model (typically 50–70mm) |
| Dynamic Load Capacity | High axial load rating suitable for >2500 Nm torque systems |
| Speed Rating | Designed for continuous operation at engine idle to full RPM |
| Operating Temperature Range | -30°C to +180°C (-22°F to 356°F) |
| Lubrication | Pre-greased with high-temperature grease (lithium complex or synthetic) |
| Design Type | Pull-Type (Predominant), compatible with standard Shacman clutch assemblies |
