| Quantity: | |
|---|---|
1002491967
FAW
| Attribute | Description |
|---|---|

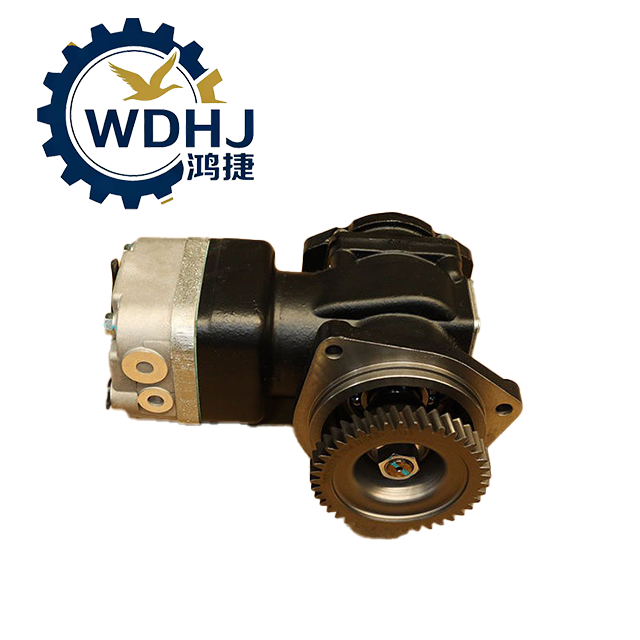

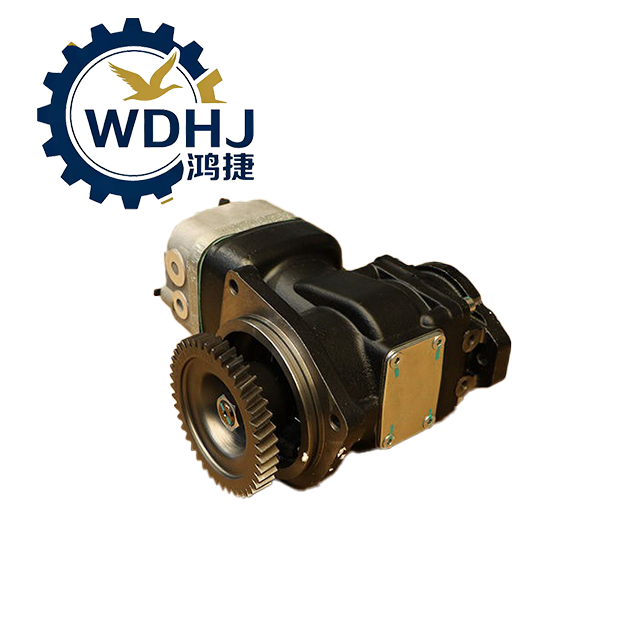

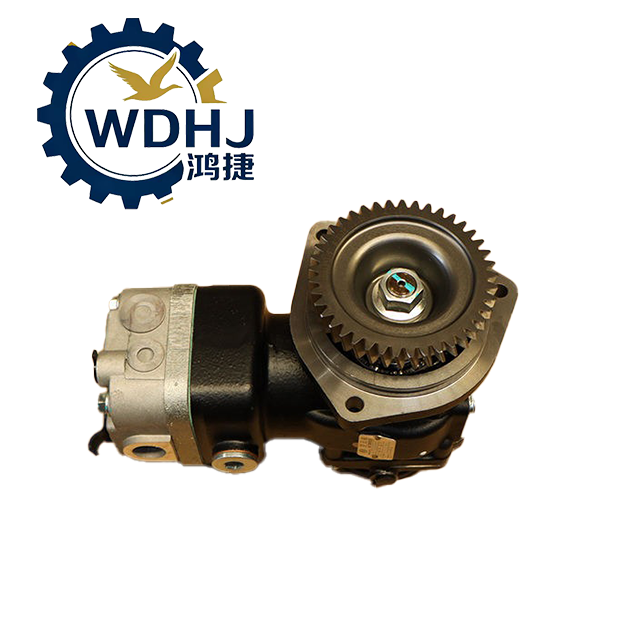

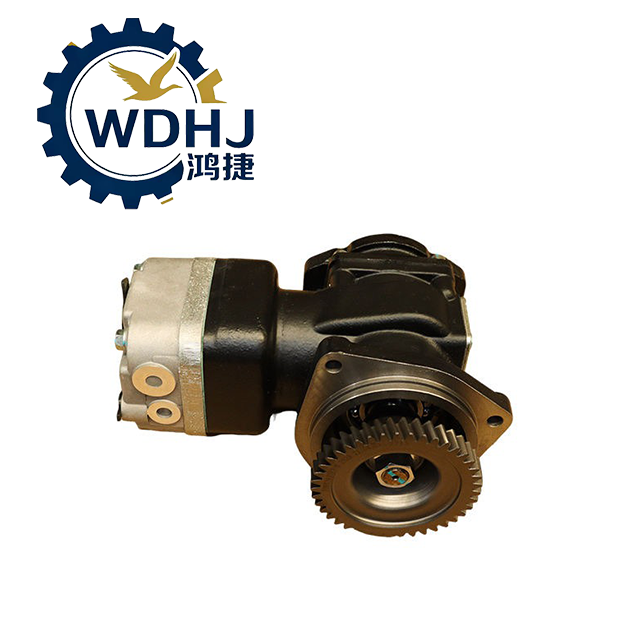

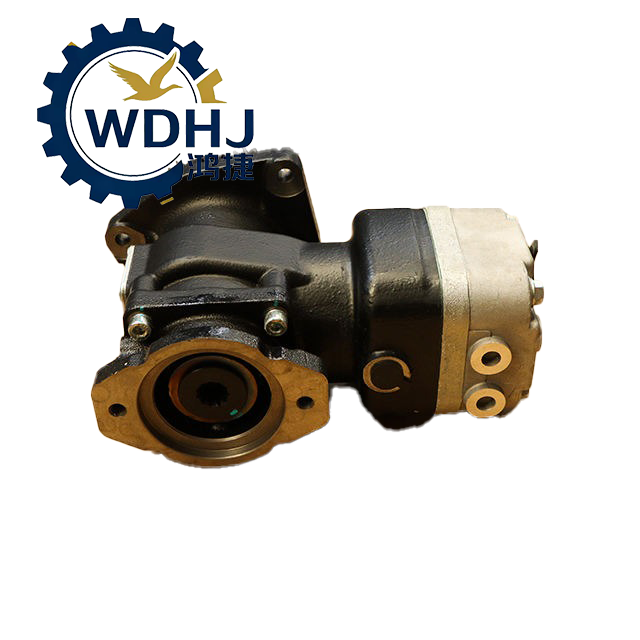

| Product Name | Air Compressor Assembly / Air Brake Pump |
| Manufacturer | Weichai Power Co., Ltd., China |
| Type | Single-cylinder, reciprocating piston type |
| Function | Generates compressed air for braking and auxiliary pneumatic systems |
| Application | Front-mounted on diesel engine gear housing |
| Cooling Method | Water-cooled (integrated into engine cooling circuit) |
| Drive Mechanism | Gear-driven from engine timing gear set |
| Cylinder Configuration | Single cylinder (high-efficiency design) |
| Material Construction | - Cylinder Block: High-strength cast iron - Crankcase Cover: Die-cast aluminum alloy |
| Quality Standard | Meets Weichai OE specifications; compliant with IATF 16949 automotive quality management |
Name1
Name2
| Parameter | Value / Detail |
|---|---|
| OEM Part Number | 1002491967 |
| Compressor Type | Reciprocating piston, single-stage compression |
| Number of Cylinders | 1 (Single Cylinder) |
| Drive Type | Gear-driven (mounted at rear of engine gear chamber) |
| Cooling System | Water-cooled – connected to engine coolant loop |
| Rated Output Pressure | 10–12 bar (145–175 psi) |
| Displacement | Optimized for rapid tank filling (up to ~280 L/min free air delivery) |
| Intake & Exhaust Design | Top-mounted inlet and outlet with reed valve system |
| Lubrication Method | Pressure-fed lubrication via engine oil system |
| Operating Temperature | Designed to operate safely up to +120°C coolant temp |
| Expected Service Life | Matches engine overhaul interval (typically 800,000+ km) |
| Weight | Approx. 15 kg – 18 kg |
| Attribute | Description |
|---|---|
| Product Name | Air Compressor Assembly / Air Brake Pump |
| Manufacturer | Weichai Power Co., Ltd., China |
| Type | Single-cylinder, reciprocating piston type |
| Function | Generates compressed air for braking and auxiliary pneumatic systems |
| Application | Front-mounted on diesel engine gear housing |
| Cooling Method | Water-cooled (integrated into engine cooling circuit) |
| Drive Mechanism | Gear-driven from engine timing gear set |
| Cylinder Configuration | Single cylinder (high-efficiency design) |
| Material Construction | - Cylinder Block: High-strength cast iron - Crankcase Cover: Die-cast aluminum alloy |
| Quality Standard | Meets Weichai OE specifications; compliant with IATF 16949 automotive quality management |
Name1
Name2
| Parameter | Value / Detail |
|---|---|
| OEM Part Number | 1002491967 |
| Compressor Type | Reciprocating piston, single-stage compression |
| Number of Cylinders | 1 (Single Cylinder) |
| Drive Type | Gear-driven (mounted at rear of engine gear chamber) |
| Cooling System | Water-cooled – connected to engine coolant loop |
| Rated Output Pressure | 10–12 bar (145–175 psi) |
| Displacement | Optimized for rapid tank filling (up to ~280 L/min free air delivery) |
| Intake & Exhaust Design | Top-mounted inlet and outlet with reed valve system |
| Lubrication Method | Pressure-fed lubrication via engine oil system |
| Operating Temperature | Designed to operate safely up to +120°C coolant temp |
| Expected Service Life | Matches engine overhaul interval (typically 800,000+ km) |
| Weight | Approx. 15 kg – 18 kg |
