445120081
FAW
| Attribute | Description |
|---|---|

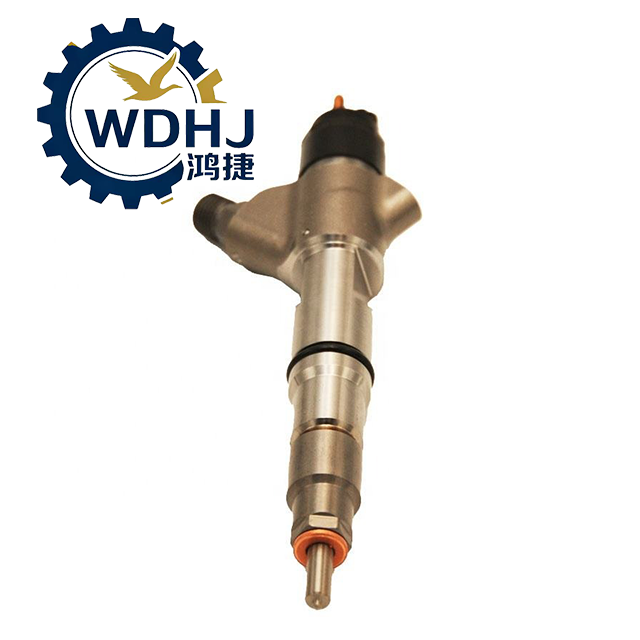

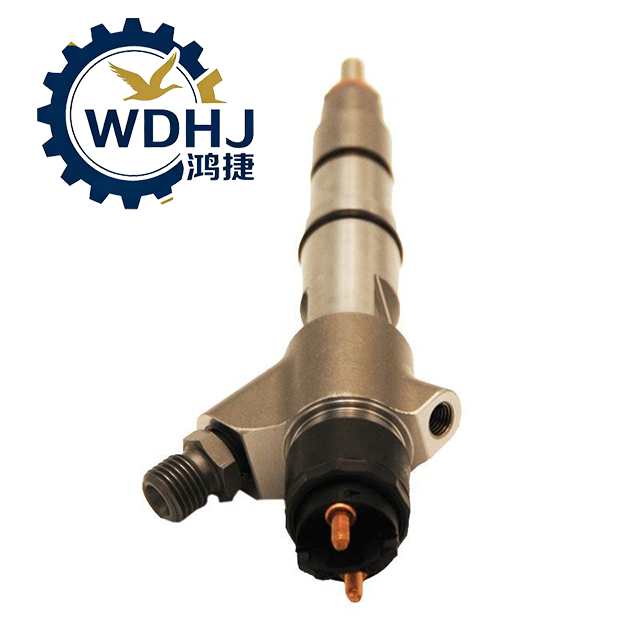

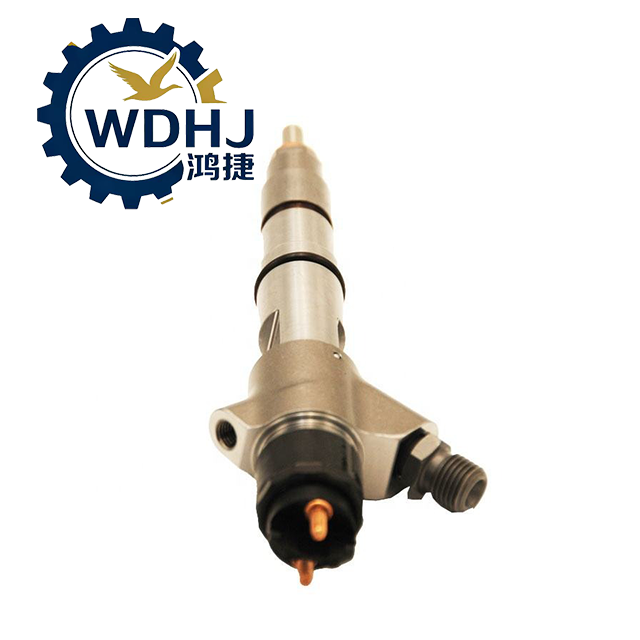

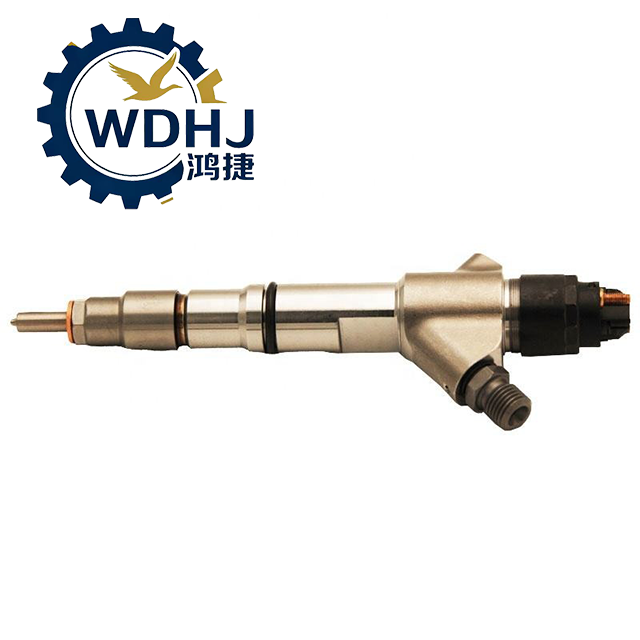

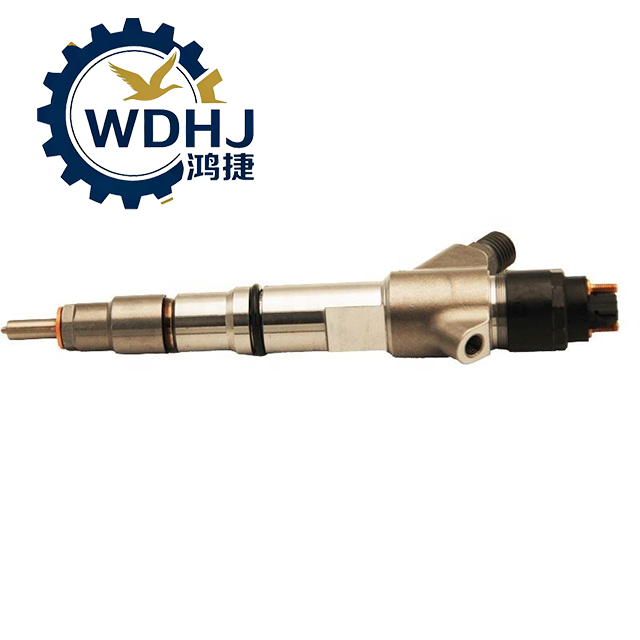

| Official Name | Electronically Controlled High-Pressure Common Rail Injector |
| Brand | Bosch (Original Equipment & Aftermarket Standard) |
| Function | Precisely meters and injects diesel fuel into the combustion chamber under ultra-high pressure via solenoid actuation |
| Injection Type | Multi-pulse capable – Pilot, Main, and Post-injection for optimized NOx and PM control |
| Actuation Method | Solenoid valve-controlled (high-speed electromagnetic response) |
| Core Technology | Bosch CR (Common Rail) generation platform |
| Sealing Design | Precision metal-ceramic seals and needle valve guidance system |
| Durability | Designed for long service life in harsh environments (vibration, heat, contamination risk) |
| Application Level | OEM fitment on FAW Jiefang medium/heavy-duty trucks and industrial powertrains |
| Parameter | Value / Description |
|---|---|
| OEM Part Number | 0445120081 (also written as 0 445 120 081 or shortened to 445120081) |
| Weight | Approx. 0.65 kg per unit |
| Maximum System Pressure | Up to 1,600 – 1,800 bar (23,200 – 26,100 psi) |
| Emission Compliance | Compatible with China IV (GB17691-2005), China V (GB17691-2013) standards |
| Nozzle Type | DLLA151P1656 (Bosch P/N: 0433172017) |
| Control Valve | F00RJ01692 |
| Solenoid Valve | F00RJ02703 |
| Material Construction | High-strength alloy steel body; ceramic-coated internal components for wear resistance |
| Injector Body Type | Vertical mount, top electrical connector |
| Electrical Connection | Standard Bosch multi-pin plug with waterproof seal (IP67 rated) |
| Response Time | < 0.2 ms (enables ultra-fast start/stop of injection events) |
| Fuel Lubrication | Operates using diesel fuel as lubricant – cleanliness is critical |
