1602300-D149E
FAW
| Attribute | Specification |
|---|---|

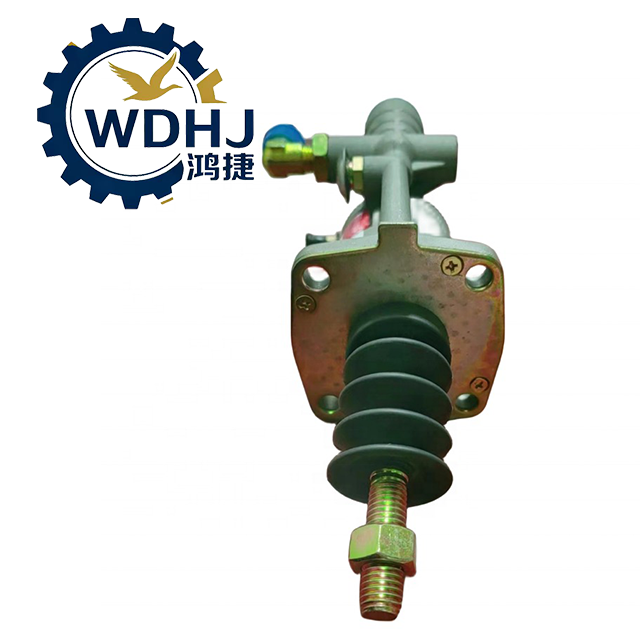

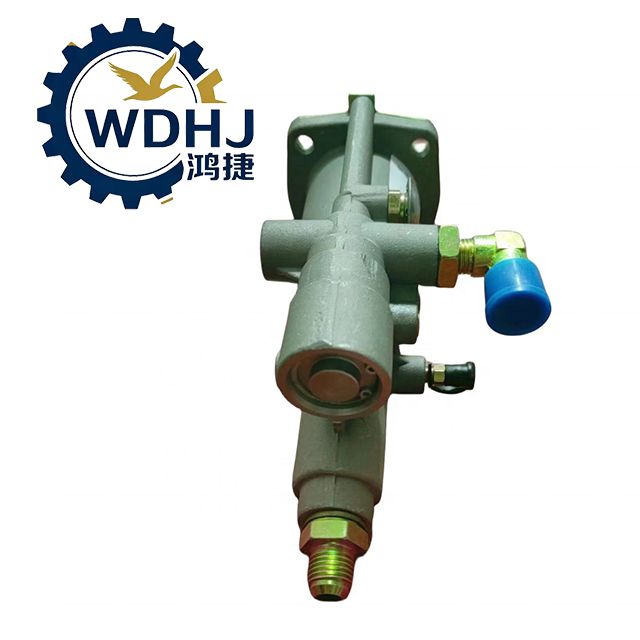

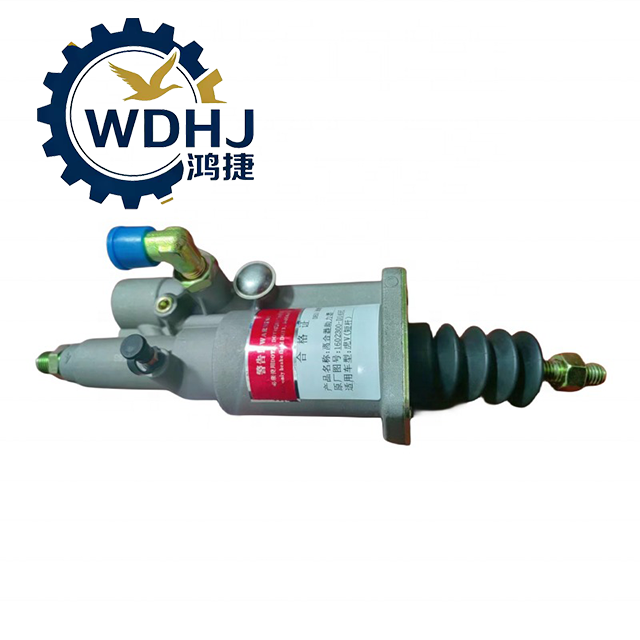

| Product Name | Clutch Booster Assembly / Clutch Servo Cylinder |
| Part Number | 1602300-D149E |
| Alternative Numbers | 1608010-T38H0, 1602300-D149E/B, 1602300-392, 1602300-392J |
| Type | Pneumatic-Hydraulic Assist (Air-Over-Oil Type) |
| Primary Function | Amplifies hydraulic pressure from clutch master cylinder using air pressure to actuate release bearing |
| Main Material | Die-Cast Aluminum Housing, High-Strength Steel Piston Rod & Internal Components |
| Sealing Material | Fluororubber (FKM/Viton®), heat & oil resistant |
| Weight | 2.3 kg – 2.8 kg |
| Vehicle Application | FAW Jiefang J5, J6P, J6L, JH6, Tiger V / Tiger VH Series |
| Model Years | Widely used from 2010 – Present (especially in export and domestic fleet models) |
| Certification | Complies with ISO/TS 16949 Quality Management System |
| Parameter | Value |
|---|---|
| Operating Principle | Pneumatic-hydraulic amplification (air pressure drives hydraulic output) |
| Working Medium | DOT 3 or DOT 4 Brake Fluid + Compressed Air |
| Air Pressure Range | 0.6 MPa – 0.8 MPa (87 – 116 psi) |
| Hydraulic Output Pressure | Up to 3–5× input pressure (depending on piston ratio) |
| Dimensions (Approx.) | 245 mm × 110 mm (length varies slightly with pushrod extension) |
| Mounting Style | Bracket-mounted with rigid connections |
| Air Inlet Thread | M16×1.5 or M12×1.5 (standard metric threads) |
| Hydraulic Port Size | Standard -6 AN / 9.5mm OD tube compatible |
| Temperature Range | -40°C to +80°C (-40°F to 176°F) |
| Packaging Dimensions | 10×10×25 cm or 53×12×12 cm (varies by supplier/packaging method) |
