| Quantity: | |
|---|---|

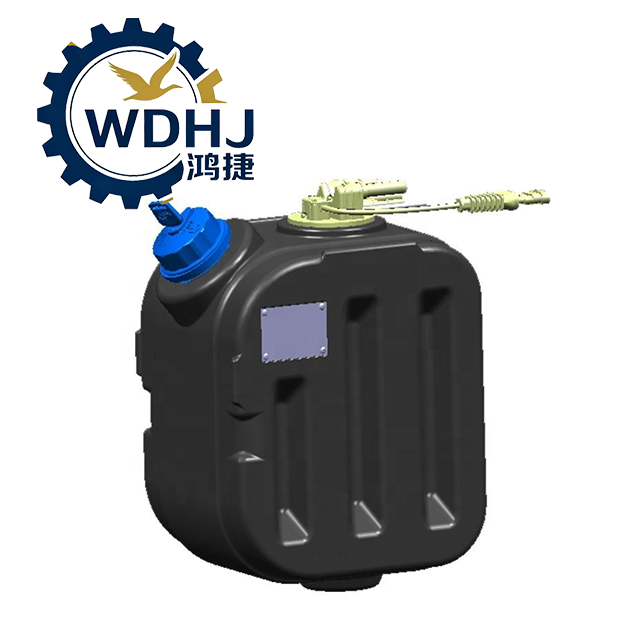

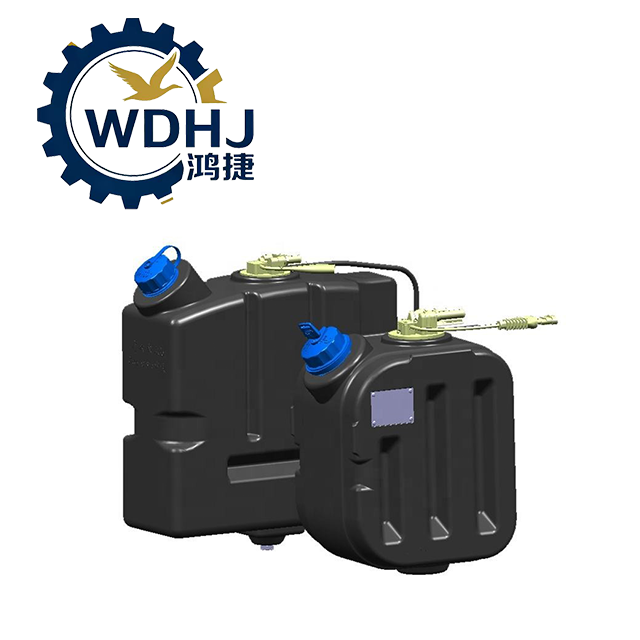

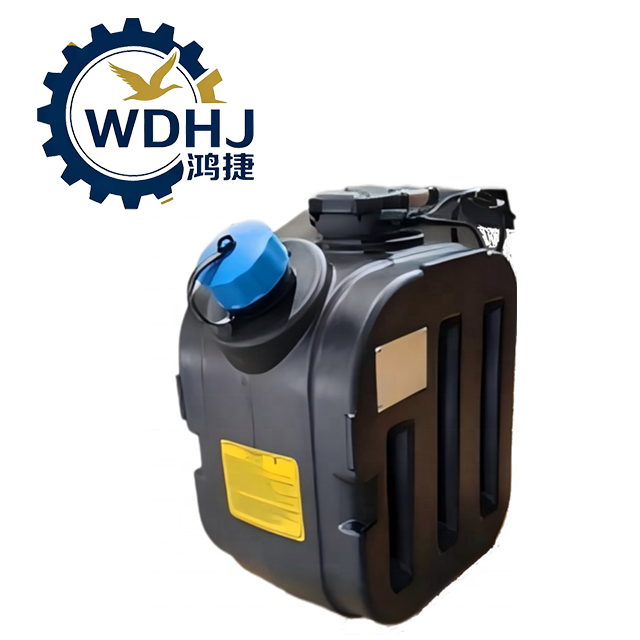

1160010A-DR100
FAW
| Attribute | Description |
|---|---|
| Function | Stores and supplies DEF to the SCR dosing system |
| Material | High-density polyethylene (HDPE) or engineering plastic (UV-resistant, chemical corrosion-resistant) |
| Design Type | Integrated assembly including tank body, level/temperature sensor, filler cap, heating element (optional), and mounting brackets |
| Mounting Style | Side-mount, rear-mount, or custom configuration based on vehicle layout |
| Heating Feature | Built-in electric heating pad or coolant-heated jacket (for cold climate operation) |
| Ventilation | Integrated breather valve to prevent pressure build-up |
| Sealing | Leak-proof design with ISO 22241-compliant sealing standards |
| Compatibility | Works with all major SCR control units and dosing pumps |
| Parameter | Value / Description |
|---|---|
| Capacity Range | 15L – 120L (custom sizes available) |
| Operating Temperature | -30°C to +80°C (with heater); -11°C to +50°C (without heater) |
| Storage Temperature | -11°C to +50°C (DEF freezes at -11°C) |
| Def Fluid Standard | Complies with ISO 22241-1/-2/-3 (AUS 32: 32.5% high-purity urea + deionized water) |
| Sensor Output | Analog signal (e.g., 0.5–4.5V) or digital CAN output for urea level and temperature |
| Electrical Connection | IP67 waterproof connector; standard pin configuration per OEM specs |
| Filler Neck Standard | Blue-colored cap and nozzle (ISO 22241 safety design to prevent misfuelling) |
| Weight (Empty) | 2.5 kg – 12 kg (depending on capacity) |
| Pressure Resistance | Withstands up to 1.5 bar internal pressure |
| Service Life | ≥ 10 years under normal operating conditions |
