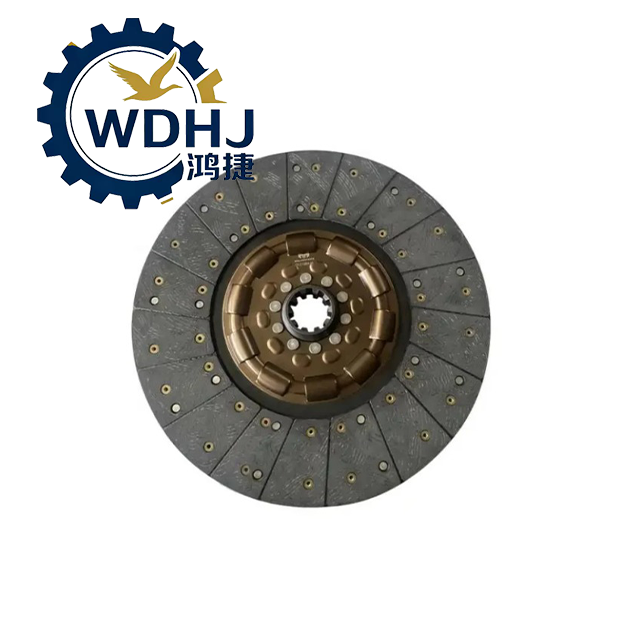

Good Quality Truck Spare Parts Shacman Clutch Plate Clutch Disc DZ91189160032 Clutch Disc for Shacman Faw

Good Quality Truck Spare Parts Shacman Clutch Plate Clutch Disc DZ91189160032 Clutch Disc for Shacman Faw

The DZ91189160032 Clutch Disc is a high-performance, OEM-standard replacement component designed specifically for heavy-duty commercial vehicles operating under extreme torque and load conditions. Widely used across Chinese-made heavy trucks — especially Shacman (Shaanxi) F2000, F3000, X3000, H3000, and M3000 series — this clutch disc ensures smooth power transmission, reliable engagement, and enhanced drivetrain protection.

Engineered with advanced triple-stage damping technology, it effectively reduces vibration during gear shifts, improves ride comfort, and extends the life of the transmission system. It is particularly optimized for high-torque diesel engines such as Weichai WP10, WP12, and WP13 series, making it an ideal choice for long-haul transport, construction, and mining applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ91189160032
Brand:
FAW

Product Description

Attribute	Specification
Part Name	Clutch Disc (Driven Plate)
Part Number	DZ91189160032
Type	Push-Type Triple-Damped Clutch Disc
Application	Heavy-Duty Trucks & Commercial Vehicles
Primary Brand Fitment	Shacman (F2000, F3000, X3000, H3000, M3000), HOWO, FAW, Foton, Dongfeng
Engine Compatibility	Weichai WP10, WP12, WP13 Series
Material Construction	High-Strength Steel Core, Aluminum Damping Elements, Organic/Non-Asbestos Friction Lining
Design Feature	Triple Stage Vibration Damping System
Torque Capacity	Suitable for systems exceeding 2500 Nm
Origin	China (Original Equipment Manufacturer - OEM Quality)

Parameter	Value
Outer Diameter	430 mm (17 inches)
Number of Splines	10 Teeth (10T)
Spline Inner Diameter	41 mm
Spline Length / Outer Diameter	54.8 mm
Friction Facing Material	High-Temperature Resistant Organic Compound (Non-Asbestos)
Max Operating Temperature	Up to 350°C (662°F)
Weight	Approx. 8.5 – 9.2 kg (varies by manufacturer)
Balanced For	High-Speed Rotation & Smooth Engagement
