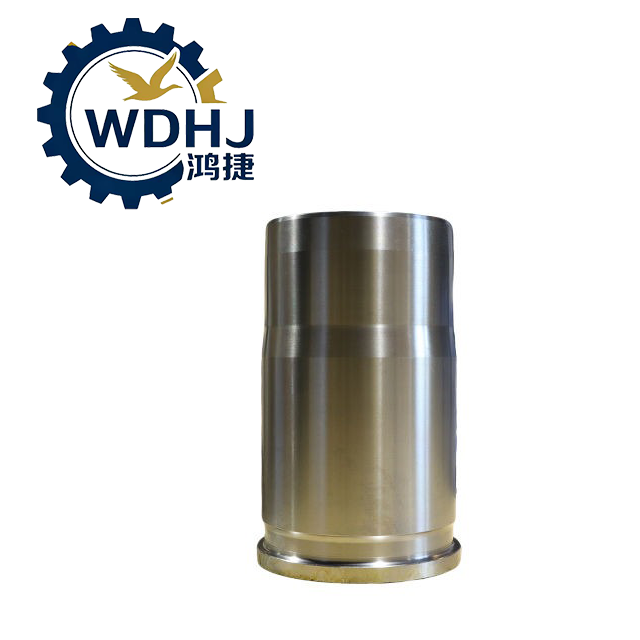

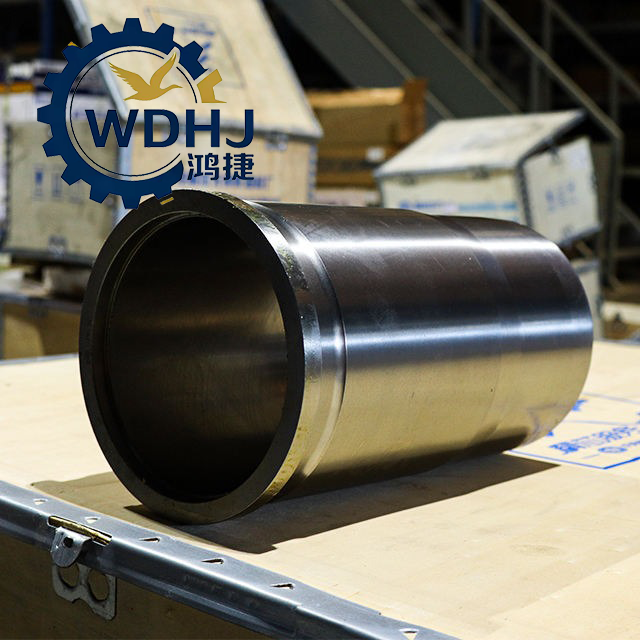

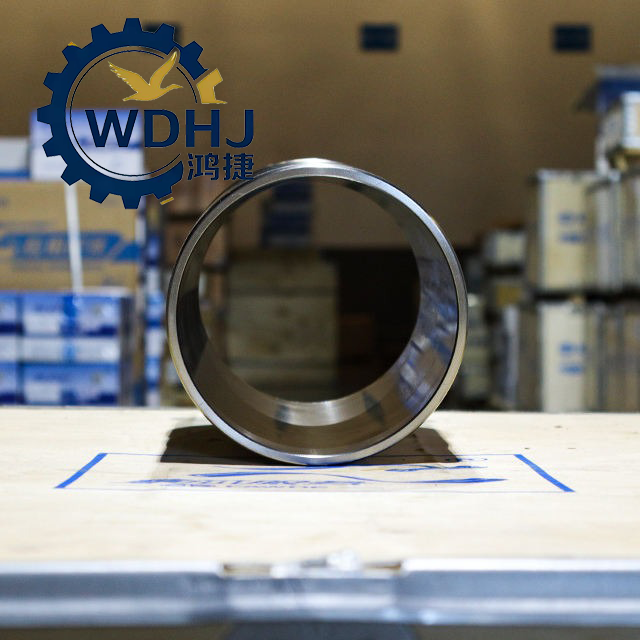

FAW Jiefang Truck Parts New Cylinder Liner for J5 J6 J7 JH6 J6P J6L Tiger V Engine Accessories

The Cylinder Liner (Part No. 1002016-M6G-0000Y) is an original equipment (OE) wet-type cylinder liner manufactured by FAW Jiefang in collaboration with its powertrain division FAWDE (Xichai / AWEIL Engine). Designed specifically for high-output diesel engines in heavy-duty commercial vehicles, this component serves as the core combustion chamber wall where piston movement occurs under extreme pressure and temperature conditions.

Engineered to meet the rigorous demands of modern long-haul transport and high-load logistics, this liner is built from advanced boron- or phosphorus-alloyed cast iron, featuring high-frequency induction hardening and platform honing surface treatment to deliver superior wear resistance, thermal stability, and oil retention performance. It plays a critical role in ensuring engine durability, fuel efficiency, and compliance with China VI / Euro VI emission standards.

Quantity:
Availability:





Inquire Add to Basket

Model:
1002016-M6G-0000Y
Brand:
FAW

Product Description

Attribute	Description
Product Name	Wet Cylinder Liner (Bore Liner)
Manufacturer	FAW Jiefang Co., Ltd. / FAWDE (AWEIL), China
Type	Replaceable wet liner – directly cooled by coolant
Function	Forms the internal surface of the combustion chamber; guides piston travel and transfers heat to cooling system
Application	Inline 6-cylinder heavy-duty diesel engines
Material	High-strength alloyed cast iron (e.g., boron-modified or phosphated gray iron)
Surface Treatment	Internal bore treated with Platform Honing (Cross-Hatch Pattern) for enhanced oil retention
Design Standard	Meets FAW OE specifications for dimensional accuracy, hardness, and fatigue strength

Parameter	Value / Detail
OEM Part Number	1002016-M6G-0000Y
Alternate Designation	1002016-M6G (base drawing number)
Liner Type	Wet-type (coolant contacts outer wall)
Bore Diameter	126 mm (standard for 13L CA6DM3 engines)
Total Height	Approximately 498–505 mm (varies slightly by batch)
Top Shoulder	Integrated support flange for cylinder head load transfer
Sealing Features	Two O-ring grooves at bottom section for water sealing (uses part: 1002017-M2D)
Wall Thickness	Precision-machined for consistent heat transfer
Hardness	Surface hardness ≥ 50 HRC after induction hardening
Finish Process	Platform honing with controlled Ra (surface roughness): ~0.8–1.2 μm
Thermal Performance	Efficient heat dissipation due to direct coolant contact on outer surface
