1308010-263/B
FAW
| Attribute | Description |
|---|---|
| Official Name | Engine Cooling Fan Assembly with Shroud Ring |

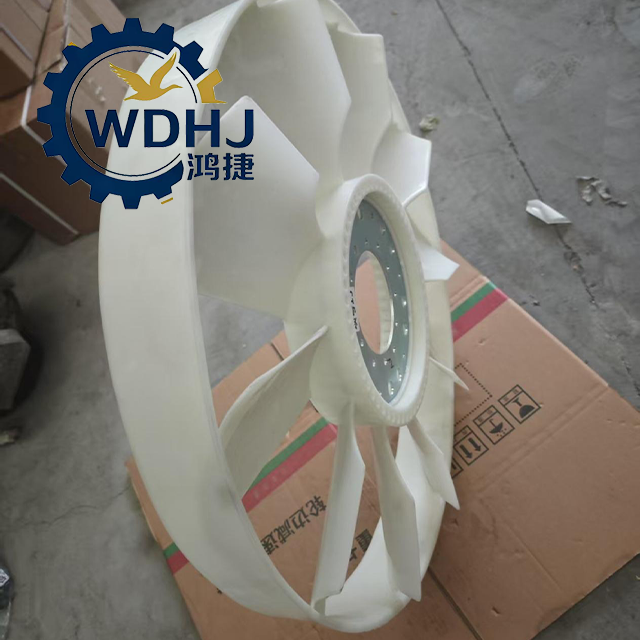

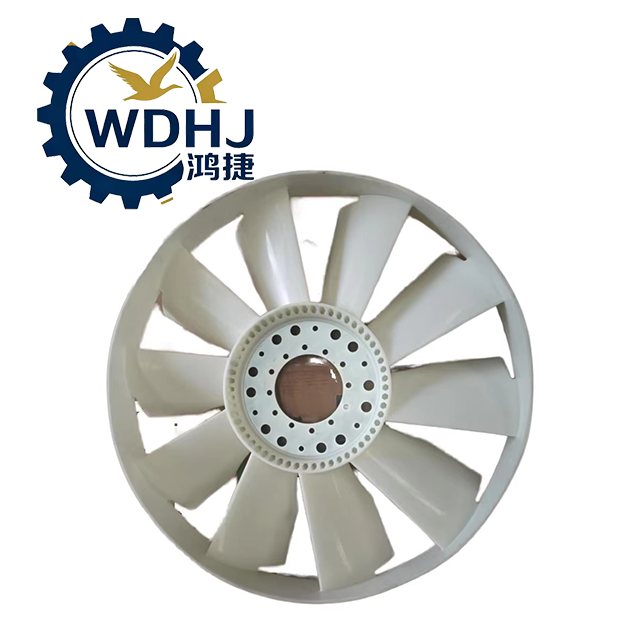

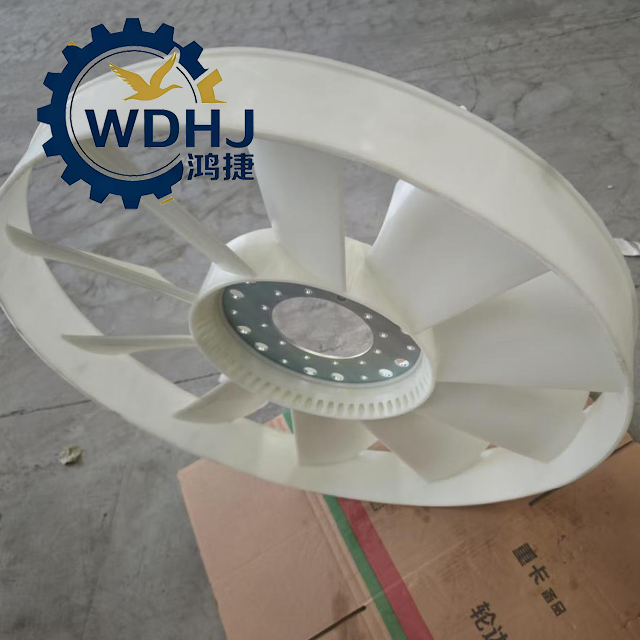

| Design Type | 9-blade axial fan with full perimeter shroud (ring-type) |
| Primary Function | Generates forced air across the radiator core to maintain optimal engine coolant temperature |
| Material | Reinforced engineering plastic – PA66 + Glass Fiber (PA66+GF), heat-resistant up to 150°C |

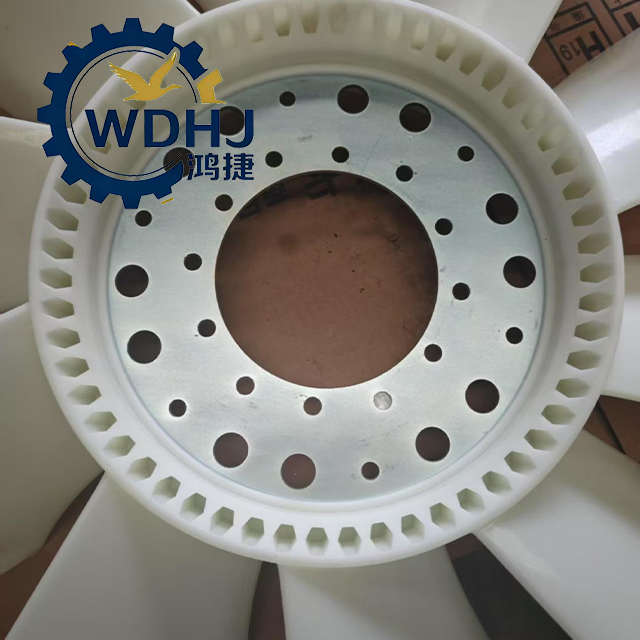

| Mounting Style | Central 6-hole flange mount for direct coupling with fan clutch or pulley hub |
| Key Feature | Integrated shroud ring minimizes tip vortex losses, improves static pressure and volumetric airflow by 10–15% vs. open fans |
| Balance Standard | Precision-dynamically balanced to ISO G6.3 grade for smooth high-speed rotation |
| Application | OEM fitment on FAWDE CA6DL series engines; suitable for severe-duty cycles |
Name1
Name2
| Parameter | Value / Description |
|---|---|
| Part Number (OEM) | 1308010-263/B (also written as 1308010-263B or 1308010-263) |
| Blade Count | 9 blades |
| Outer Diameter (with Ring) | Φ700 mm (approx. 27.56 inches); range: Φ690–700 mm |
| Hub Mounting Pattern | 6-hole bolt circle (specific pitch and diameter per FAW standard) |
| Material Grade | PA66 + 30% Glass Fiber (high strength, anti-warp, UV & heat resistant) |
| Operating Temperature Range | -40°C to +150°C (short-term exposure) |
| Dynamic Balance Level | ISO 1940-1 G6.3 |
| Airflow Efficiency | Optimized for high-static-pressure environments (e.g., clogged radiators, uphill driving) |
| Noise Performance | Reduced tip noise due to shroud design; lower operational dB(A) level |
| Weight | Approx. 3.8–4.2 kg (varies slightly by production batch) |
