You are here: Home » Products » FAW » Engine Systems » Fast Logistics Speed Engine Oil Pump Faw Semi Trailer Truck Accessories Z20190015 Oil Pump

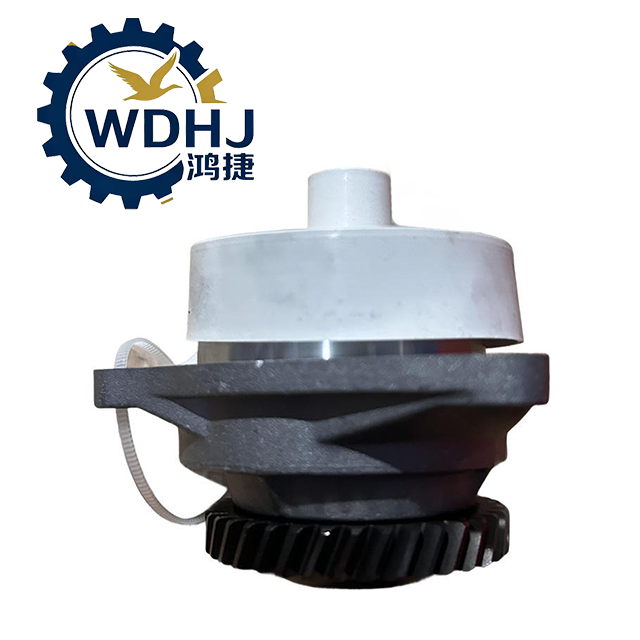

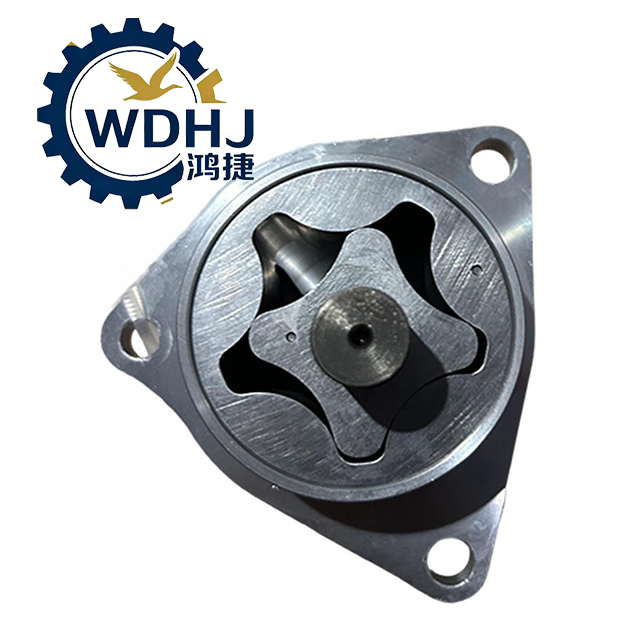

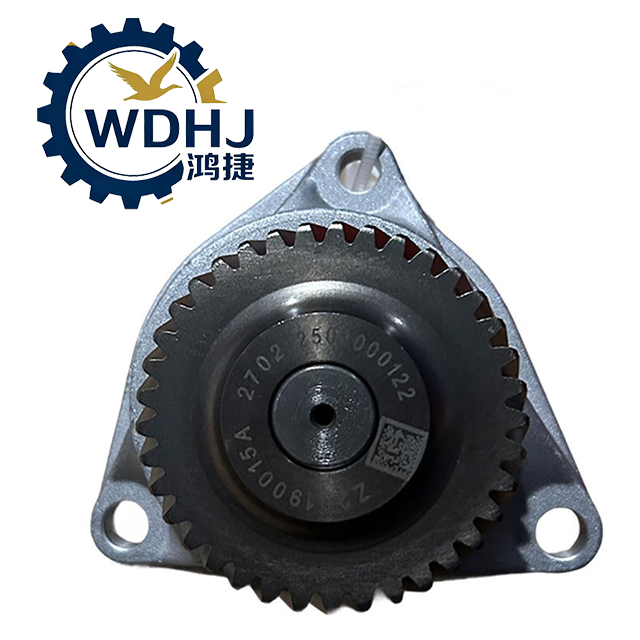

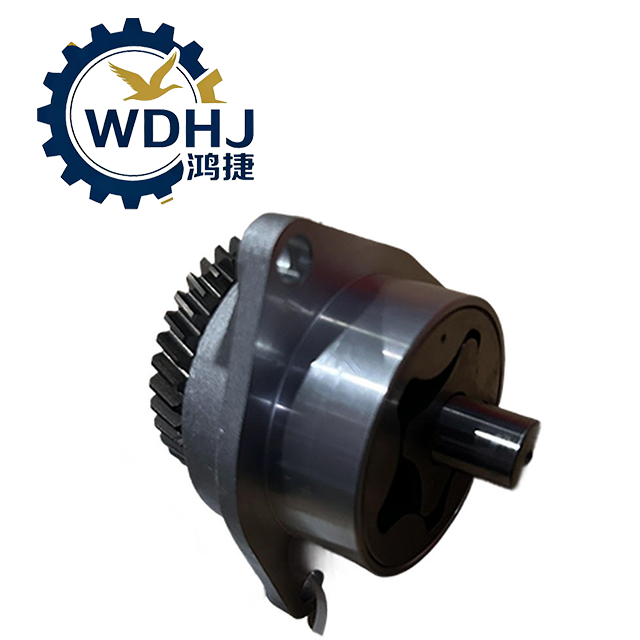

Fast Logistics Speed Engine Oil Pump Faw Semi Trailer Truck Accessories Z20190015 Oil Pump

The Engine Oil Pump Assembly (Part No. Z20190015) is an original equipment (OE) component produced by Weichai Power, designed specifically for light- to medium-duty diesel engines within the Weichai WP3 series platform. As a core element of the engine lubrication system, it functions as the "heart" of the powertrain — drawing engine oil from the sump and pressurizing it for delivery to critical components such as the crankshaft, camshaft, connecting rods, and turbocharger bearings.

Featuring either an internal gear-type or rotor-type mechanical design, this oil pump delivers consistent flow and stable pressure across a wide RPM range, ensuring reliable hydrodynamic lubrication under both cold start-up and high-temperature operating conditions. Built with precision-machined gears/rotors and durable housing materials, Z20190015 supports extended engine life, reduced internal wear, and improved reliability in commercial and passenger applications alike.

Quantity:
Availability:





Inquire Add to Basket

Model:
Z20190015
Brand:
FAW

Product Description

Attribute	Description
Product Name	Engine Oil Pump Assembly
Manufacturer	Weichai Power Co., Ltd. (China)
Type	Mechanical Drive – Internal Gear or Rotor Type
Function	Generates and maintains oil pressure to lubricate engine internals
Application	Front-mounted or mid-mounted oil pumps on inline 4-cylinder diesel engines
Drive Method	Crankshaft-driven via timing gear or intermediate shaft
Housing Material	High-strength cast iron or die-cast aluminum alloy
Internal Components	Heat-treated powder metal or alloy steel rotors/gears
Quality Standard	Meets Weichai OEM specifications; tested for flow stability, pressure control, and noise performance

Name1

Name2

Parameter	Value / Detail
OEM Part Number	Z20190015
Pump Type	Internal gear pump or trochoid rotor pump (batch-dependent)
Operating Pressure	0.3 MPa – 0.5 MPa (normal working temperature range: 80°C–100°C)
Flow Rate	Designed to meet WP3 engine requirements (~15–25 L/min at rated speed)
Drive Speed Ratio	Typically 1:1 or 1:2 relative to crankshaft RPM
Inlet Connection	Direct sump pickup (via oil suction screen/filter)
Outlet Port	Integrated into engine block gallery; no external hoses required
Weight	Approx. 2.5 kg – 3.8 kg (varies slightly by housing material)
Noise Level	Optimized for low operational noise (<75 dB at full load)
Cold Start Performance	Capable of rapid oil pressure build-up even at -15°C, supporting quick engine protection during cold cranking
