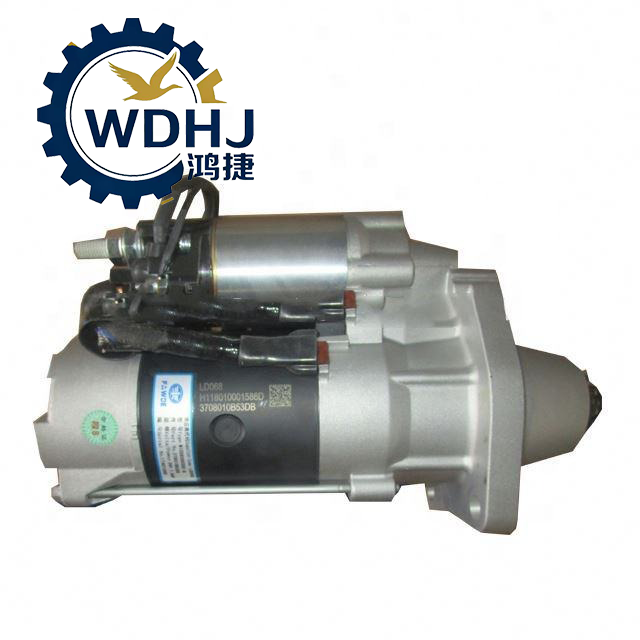

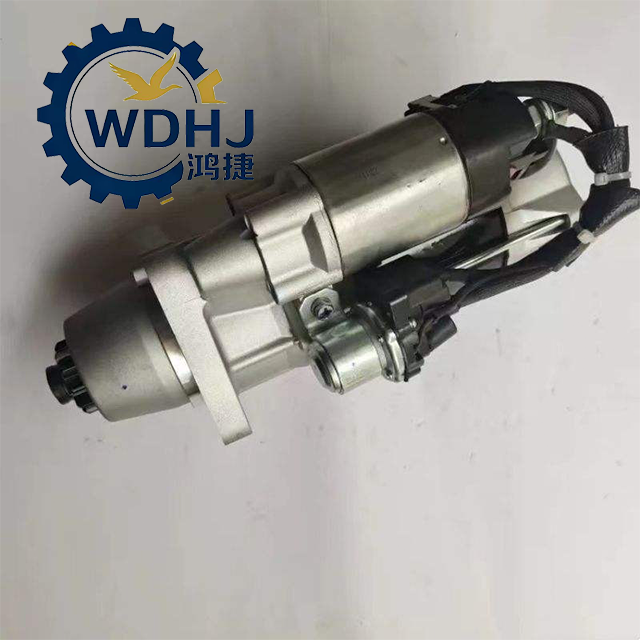

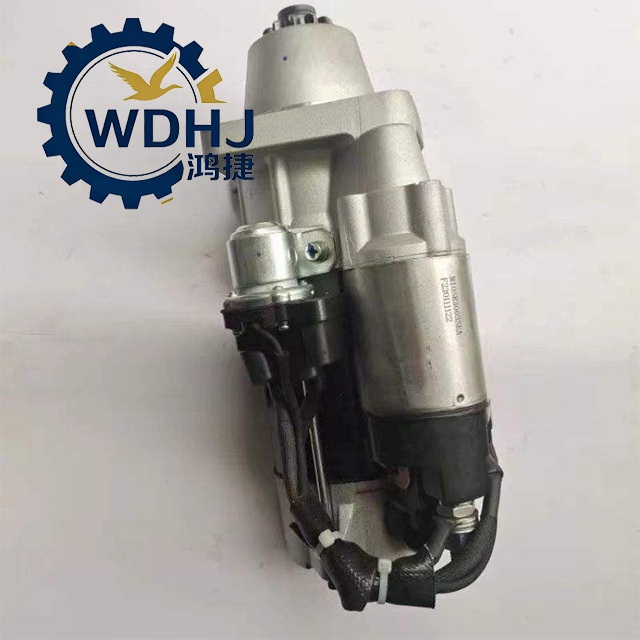

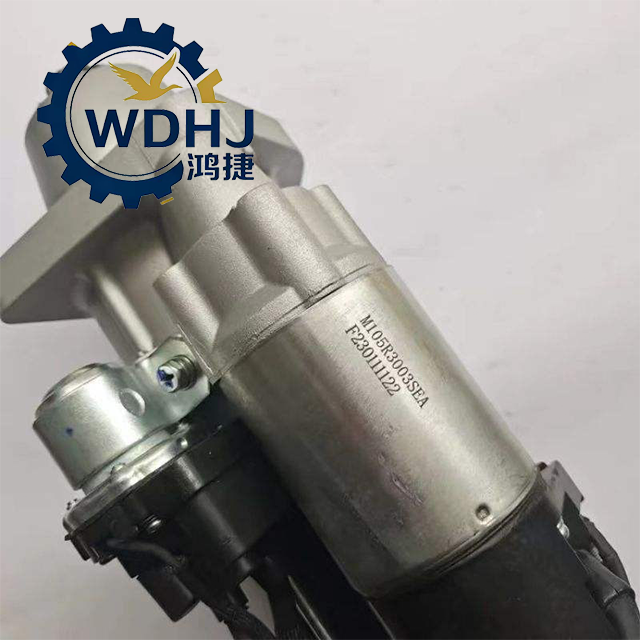

FAW Truck Body Parts 3708010B53DB Engine Starter for Truck Engine Assembly

The Starter Motor Assembly (Part No. 3708010B53DB) is an original equipment (OE) electric starting unit designed specifically for FAW Jiefang’s heavy-duty diesel trucks, including flagship models such as the J6P, JH6, and J7 series. As a core component of the engine's starting system, it reliably cranks high-compression diesel engines under extreme conditions — from sub-zero Arctic cold starts to high-altitude mining operations.

Featuring a planetary gear-reduction design, this starter delivers superior torque in a compact, lightweight form compared to traditional direct-drive units. It operates on a 24V electrical system, with standard power ratings of 7.5kW or 8.0kW, making it ideal for large-displacement engines like the CA6DM2 and CA6DL2 series from FAWDE (AWEIL). With its 11-tooth pinion gear and clockwise rotation, it ensures precise meshing with the flywheel ring gear during startup.

Quantity:
Availability:





Inquire Add to Basket

Model:
3708010B53DB
Brand:
FAW

Product Description

Attribute	Description
Product Name	Gear-Reduction Starter Motor / Starter Assembly
Manufacturer	FAW Jiefang / FAWDE (AWEIL), China
Type	Planetary gear-reduced, 24V DC electric motor
Function	Cranks the engine by engaging with the flywheel ring gear to initiate combustion
Application	Heavy-duty diesel engines – inline 6-cylinder configurations
Drive Mechanism	11T drive pinion with one-way clutch (Bendix-type engagement)
Rotation Direction	Clockwise (CW) when viewed from drive end
Quality Standard	Meets FAW OEM specifications; tested for cold cranking performance, thermal endurance, and electromagnetic reliability

Name1

Name2

Parameter	Value / Detail
OEM Part Number	3708010B53DB, 3708010-B53DB, 3708010B53D
Voltage Rating	24 Volts DC
Rated Power Output	7.5 kW or 8.0 kW (high-torque variant)

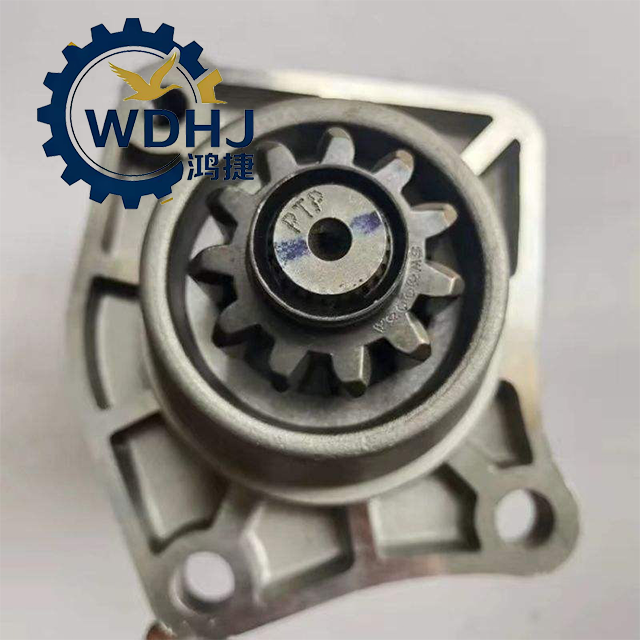

Drive Pinion Teeth	11 teeth (11T)
Gear Module	3.0 mm or 3.175 mm (must match ring gear pitch)
Rotation Direction	Clockwise (CW) — observed from drive side
Starter Type	External planetary gear reduction (compact size, high torque gain)
Weight	Approx. 10 kg – 12 kg
Mounting Configuration	Standard three-bolt flange (SAE #1 or FAW-specific pattern)
Terminal Type	M8 stud for B+ cable; solenoid control terminal (small spade or threaded post)
Protection Level	IP54 equivalent — dust-resistant and splash-proof (not fully submersible)
Cold Cranking Performance	Capable of starting 11L diesel engines at -25°C with healthy battery setup
