31ZB1-03051
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 31ZB1-03051 |

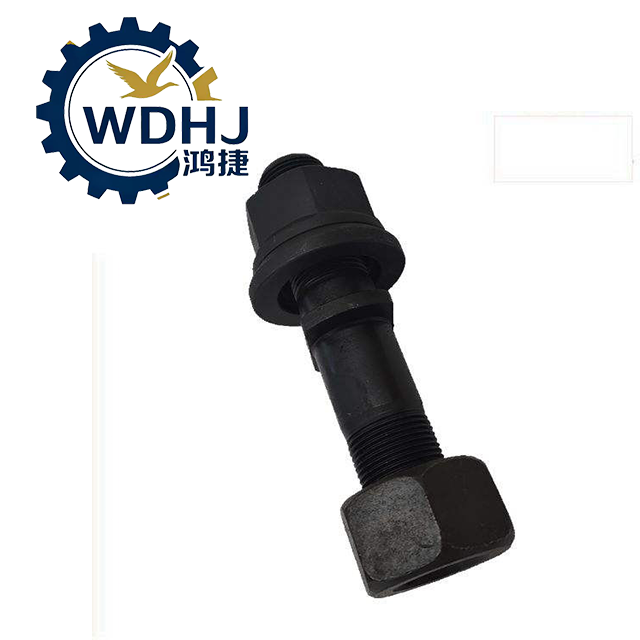

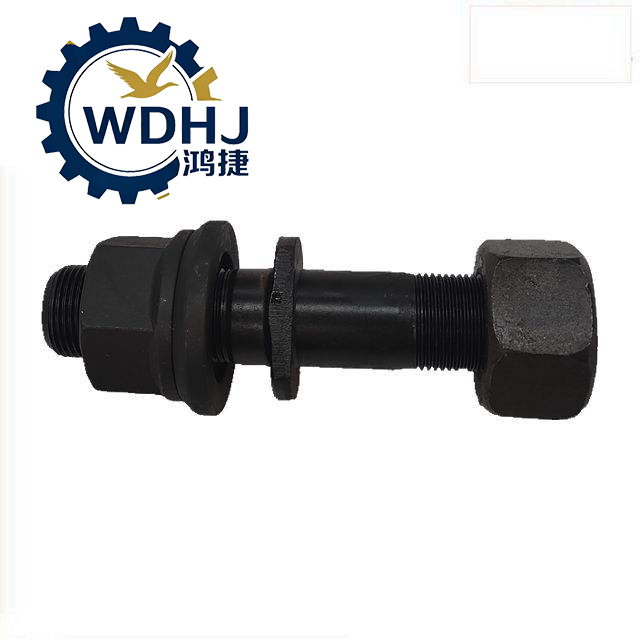

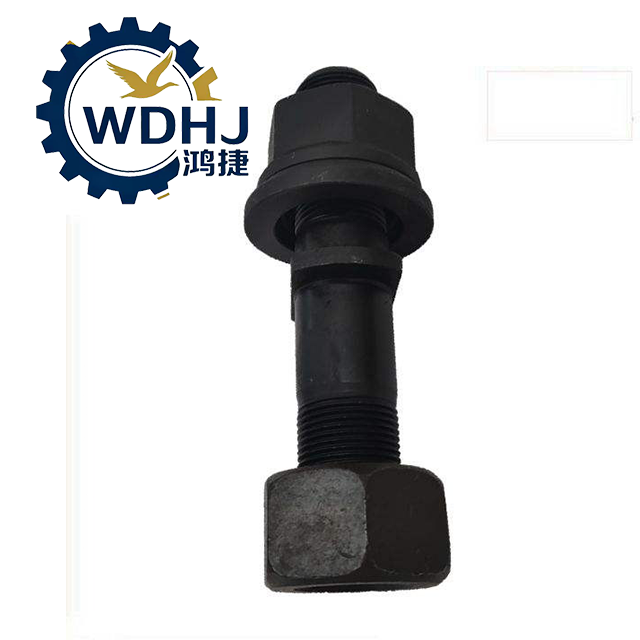

| Product Name | Front Wheel Hub Bolt Assembly (with Nuts) |
| Function | Secures front wheel rim to hub and brake drum |
| Installation Position | Front axle hub (left/right side), dual-wheel configuration |
| Vehicle Type | Heavy-Duty Trucks, Tractors, Dump Trucks, Mixers |
| Axle Compatibility | Dongfeng Dana 435, 460, VGD71, VGD75, VGD90 Series |
| Material Grade | Alloy Steel – Grade 12.9 (highest commercial strength) |
| Surface Treatment | Phosphated or Dacromet Coating (anti-rust & corrosion resistant) |
| Thread Size | M22 × 1.5 mm (standard) |
| Number per Wheel | Typically 10 bolts per front hub |
| OEM Manufacturer | Dongfeng Commercial Vehicle / Dongfeng Dana Joint Venture |
| Standards Compliance | GB/T 3098.1, ISO 898-1, QC/T 290–2013 |
| Parameter | Specification |
|---|---|
| Tensile Strength | ≥ 1,220 MPa |
| Yield Strength | ≥ 1,100 MPa |
| Hardness | HRC 39–44 |
| Torque Specification | 550–650 N·m (must use calibrated torque wrench) |
| Length (L) | Model-specific (~140–160 mm; varies by hub design) |
| Weight (Per Bolt + Nut) | ~0.58 kg – 0.62 kg |
| Operating Temperature Range | -40°C to +150°C |
| Fatigue Life | ≥ 1 million load cycles |
| Corrosion Resistance | > 500 hours salt spray test (Dacromet-coated version) |
| Friction Coefficient (Dry) | μ ≈ 0.10–0.14 (clean, unlubricated threads) |
| Design Load Capacity | Supports up to 9-ton front axle applications |
