12JS160T-1703015
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 12JS160T-1703015 |

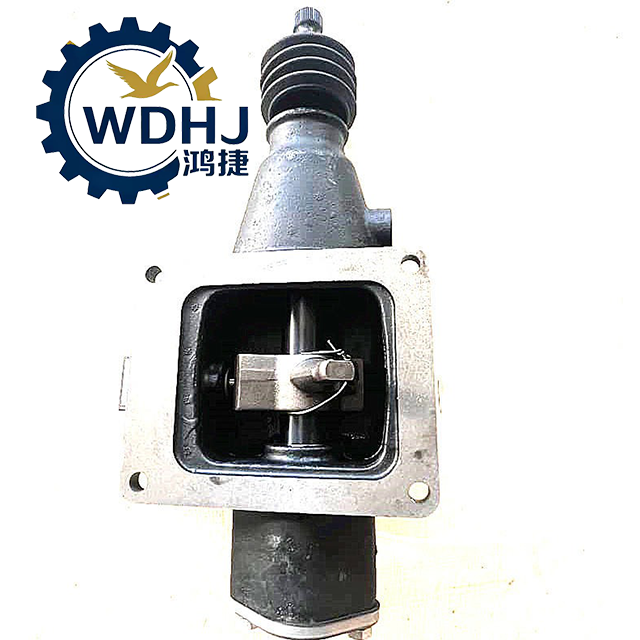

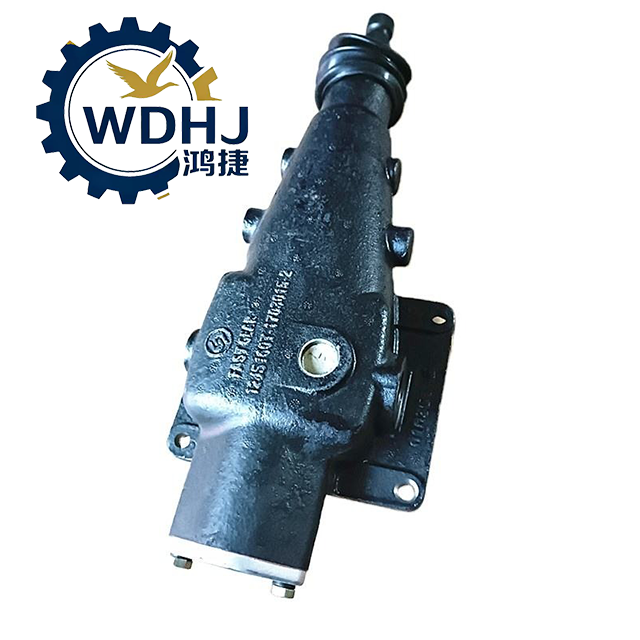

| Product Name | Transmission Gear Shift Top Cover / Shift Control Cover |
| Function | Converts manual shift input into precise internal gear selection |
| Transmission Type | Manual Heavy-Duty Truck Gearbox (Dual Countershaft Design) |
| Number of Speeds | 12-Speed (H-pattern with splitter or range shift logic) |
| Primary Material | High-Strength Die-Cast Aluminum Alloy (some heavy-duty versions use ductile cast iron) |
| Key Components Included | - Shift forks (external) - Longitudinal & lateral shift rods - Detent balls & springs - Mechanical interlock system - Neutral switch port |
| Mounting Interface | Bolted to top of transmission housing |
| OEM Manufacturer | Fast Gear (FA Shi Te) |
| Compliance Standards | GB/T 34891, QC/T 292–2019, ISO/TS 16949 |
| Parameter | Specification |
|---|---|
| Applicable Torque Range | Supports input torque up to 1,800 N·m |
| Compatible Models | 12JS160T, 12JS160TA, 12JSD160T, 12JSD180T, etc. |
| Weight (Approx.) | 6.8 kg – 8.2 kg (aluminum version) |
| Operating Temperature Range | -40°C to +130°C |
| Shift Force Reduction (vs older models) | Up to 15% smoother action (optimized bushings and pivot points) |
| Interlock Function | Prevents simultaneous engagement of two gears |
| Detent Position Accuracy | Ensures stable gear retention; prevents "jumping out" of gear |
| Neutral Switch Port | M12 × 1.5 threaded port for neutral position sensor |
| Sealing Method | Gasket-sealed (use new gasket during installation) |
| Design Life | ≥ 2 million shift cycles |
| Ventilation Feature | Integrated breather/vent plug to prevent pressure build-up |
