| Quantity: | |
|---|---|
3412010-KB100
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 3412010-KB100 |

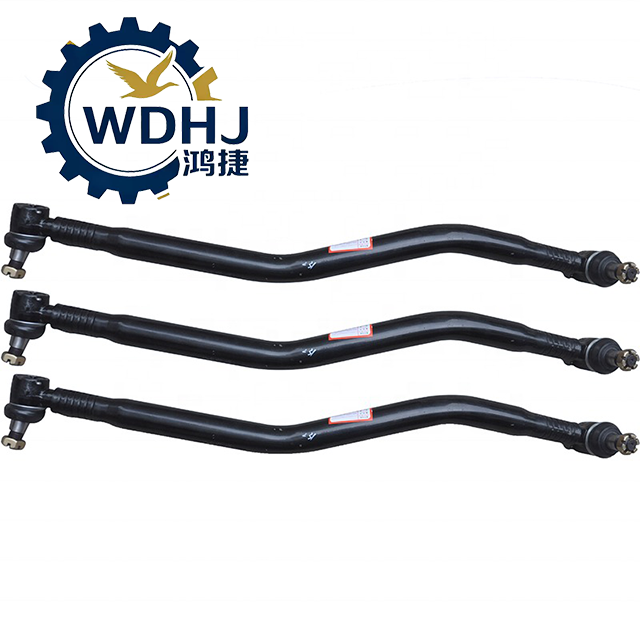

| Product Name | Steering Drag Link Assembly (commonly known as Steering Longitudinal Rod) |
| Application Type | Heavy-Duty Commercial Trucks / Medium-Duty Chassis |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Model Compatibility | Dongfeng Kinland (KL), Kingrun (KR), KC Hercules Series |
| Axle Compatibility | DANA 5T, 7T, and lightweighted front axles |
| Structure Type | Straight or slightly curved seamless steel tube with integrated ball joints |
| Ball Joint Material | Forged 40Cr or CrMnTi alloy steel, induction hardened |
| Rod Body Material | High-tensile cold-drawn seamless steel tube |
| Corrosion Protection | Electrophoretic coating (E-coat) or Dacromet® process |
| Lubrication Point | Grease nipple(s) on ball joint(s) – requires periodic greasing |
| Assembly Status | Complete assembly (ready to install) |
| Warranty | Typically 12 months or 150,000 km (subject to manufacturer terms) |
| Production Standard | Meets DFCV OE specifications; compliant with GB/T and ISO standards |
| Parameter | Specification |
|---|---|
| Functional Role | Transmits steering motion from pitman arm to steering knuckle arm |
| Load Capacity | High tensile strength; capable of withstanding hydraulic assist forces up to 15 kN |
| Ball Joint Wear Resistance | Equipped with PTFE-lined bushings or high-strength polymer socket for low friction and minimal play over time |
| Operating Temperature Range | -40°C to +120°C |
| Corrosion Resistance | >1000 hours salt spray test resistance (per ASTM B117) |
| Fatigue Life | ≥500,000 cycles under dynamic load testing (simulated rough terrain) |
| Design Life | Minimum 5 years or 800,000 km under normal operation (2026 fleet expectations) |
| Adjustability | Non-adjustable length; alignment maintained via tie rod ends or steering geometry |
