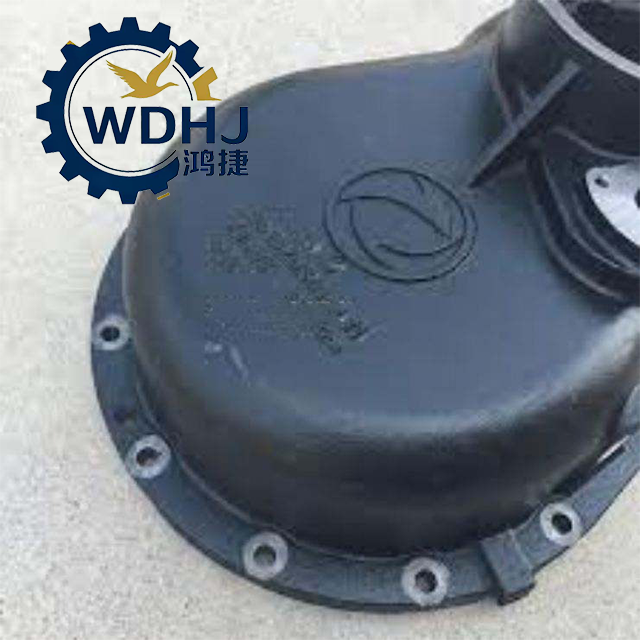

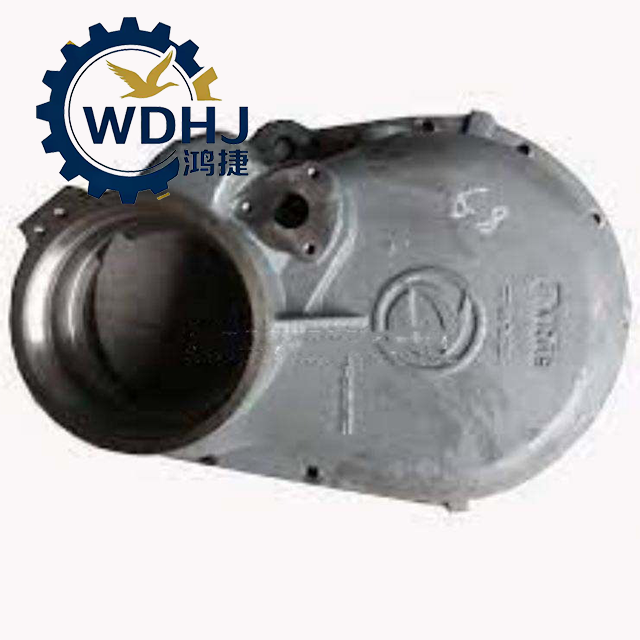

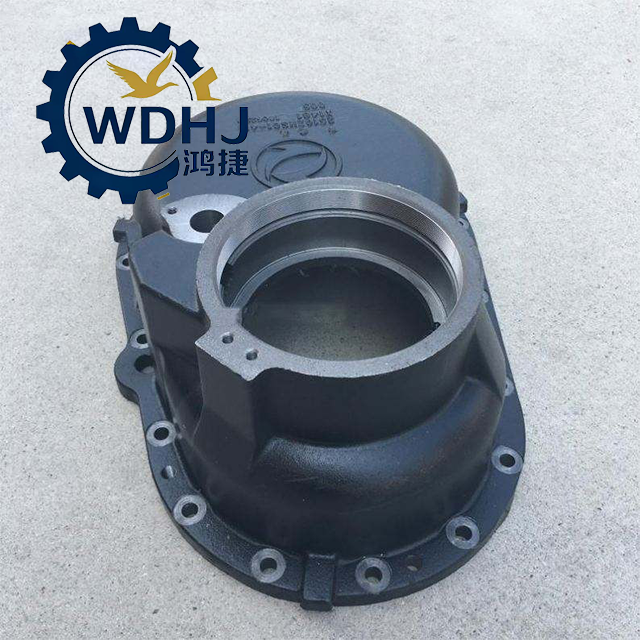

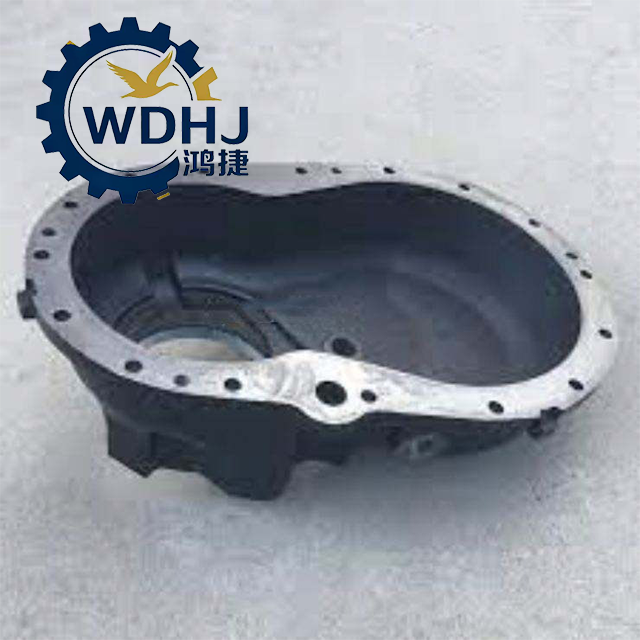

2510ZHS01-411
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 2510ZHS01-411 |
| Product Name | Inter-Axle Differential Housing / Center Axle Diff Case |
| Function | Houses and supports inter-axle differential gears and cross shaft |
| Installation Position | Installed within the center drive axle’s main reducer assembly |
| Vehicle Type | Heavy-Duty Trucks, Dump Trucks, Tractors, 6×4 / 8×4 Configuration |
| Axle Compatibility | Dongfeng Dana 435, 440, 460 Series Tandem Axles |
| Material | High-Strength Cast Steel or Ductile Cast Iron (QT500-7) |
| Heat Treatment | Quenched & Tempered (Q&T) for enhanced toughness and durability |
| Bearing Bore Finish | Precision-ground inner bores (micron-level tolerance) |
| Mounting Method | Bolted as two halves using high-grade fasteners (split-case design) |
| OEM Manufacturer | Dongfeng Dana (Joint Venture) |
| Compliance Standards | GB/T 9439, QC/T 517–2000, ISO 7431 (Axle Component Standards) |
| Parameter | Specification |
|---|---|
| Weight (Housing Only) | 5.0 kg – 7.5 kg |
| Outer Dimensions (Approx.) | Varies by model; typical: Ø280 × 200 mm |
| Wall Thickness | 10 mm – 15 mm |
| Bearing Seat Diameter | Matches planetary gear shaft journals (~Φ45–55mm) |
| Torque Capacity | Supports > 20,000 N·m input torque |
| Lubrication System | Internal oil splash + optimized groove design for cooling |
| Operating Temperature Range | -40°C to +150°C |
| Fatigue Strength | ≥ 500,000 km under full-load cycle testing |
| Surface Hardness | HB 240–280 |
| Sealing Interface | O-ring or gasket-sealed mating surface |
| Required Fasteners | 8 × Q151B1245 M12×45 bolts + Q40512 spring washers |
| Assembly Torque (M12 Bolts) | 95–110 N·m (cross-tightening sequence required) |
