| Quantity: | |
|---|---|
5001030-C6101
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 5001030-C6101 |

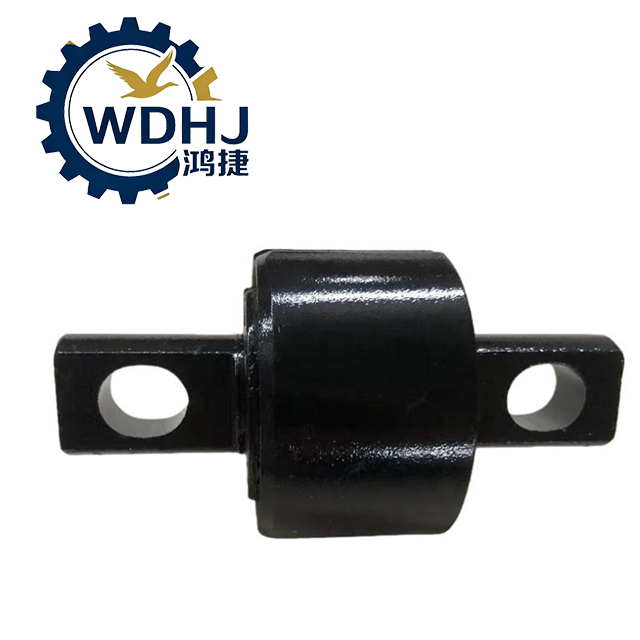

| Product Name | Cab Flip Arm Rubber Bushing Assembly – Movable/Active End |
| Function | Provides flexible connection and shock absorption for cab tilting mechanism |
| Installation Position | Mounted on the movable end of the front cab flip arm (between arm and pivot shaft) |
| Vehicle Type | Heavy-Duty Trucks, Tractor Units |
| Compatible Platform | Dongfeng Tianlong KX / GX Series |
| Model Examples | DFH4180, DFH4250 |
| Material – Elastomer | High-Flex Synthetic Rubber (NR/SBR blend), oil-resistant |
| Metal Components | Inner and outer precision steel sleeves |
| Bonding Technology | High-Temperature Vulcanization (steel-rubber adhesion) |
| Working Mode | Dynamic articulation with compression, shear, and torsional movement |
| OEM Manufacturer | Dongfeng Original Equipment Supplier |
| Standards Compliance | GB/T 14961, ISO 4661, QC/T 630 (Automotive Rubber Mounts) |
| Parameter | Specification |
|---|---|
| Outer Diameter (OD) | ~Φ60 mm – Φ70 mm |
| Inner Bore Diameter | Matches flip shaft diameter (~Φ25–30 mm) |
| Overall Length | Approx. 80 mm – 100 mm |
| Weight (Each) | ~0.3 kg – 0.5 kg |
| Durometer Hardness (Shore A) | 55° ± 5° |
| Operating Temperature Range | -45°C to +90°C (-49°F to +194°F) |
| Dynamic Load Capacity | Withstands repeated articulation up to 15 kN peak load |
| Fatigue Life | ≥ 300,000 cycles under standard test conditions |
| Oil Resistance | Moderate; resistant to light oil mist only — not for immersion |
| Compression Deflection | ~3–6 mm at rated load |
| Torsional Flexibility | Allows angular adjustment during cab tilt |
