9700511570
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 9700511570 |

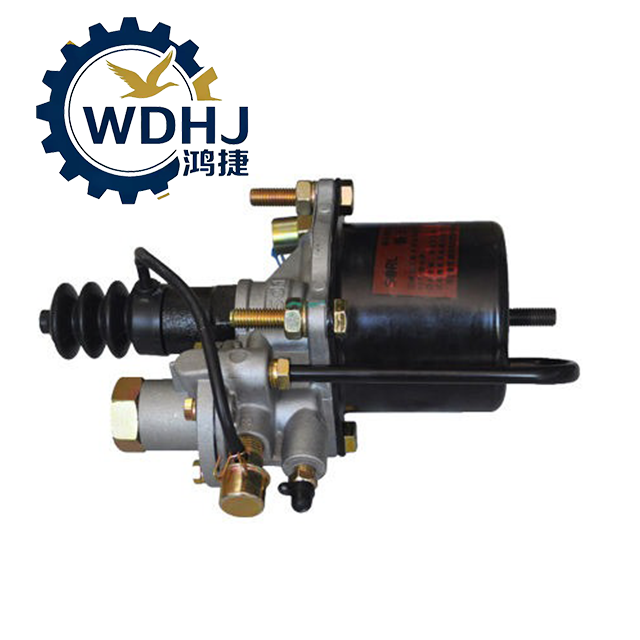

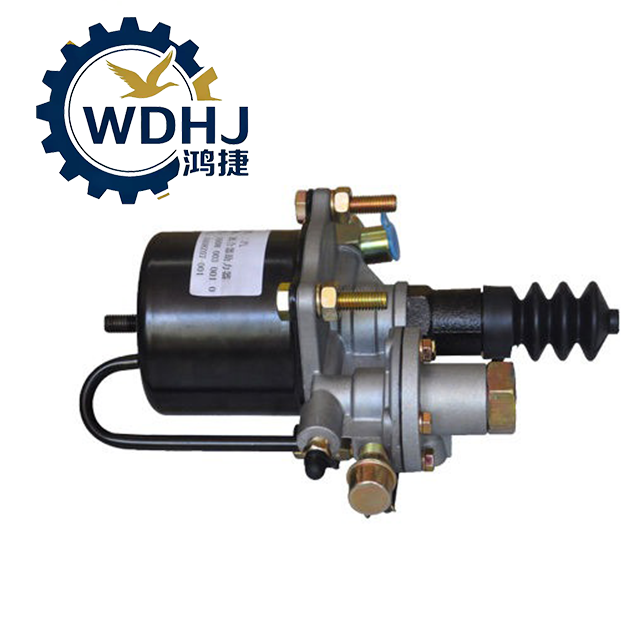

| Product Name | Clutch Servo Assembly / Pneumatic-Hydraulic Clutch Booster |
| Function | Amplifies clutch pedal force using compressed air to assist hydraulic actuation |
| Operating Principle | Air-Over-Hydraulic (Pneumatic Assist + Hydraulic Output) |
| Primary Application | Heavy-Duty Trucks, Coaches, Buses, Commercial Vehicles |
| Manufacturer | WABCO (now ZF Aftermarket / Commercial Vehicle Solutions) |
| Housing Material | High-Strength Corrosion-Resistant Aluminum Alloy |
| Internal Components | Precision-ground piston, rubber seals, return spring, check valves |
| Mounting Style | Bracket-mounted on chassis frame or transmission tunnel |
| Compatibility | Direct OE replacement for MAN, DAF, Scania, and other European platforms |
| Standards Compliance | ECE R54, ISO 4138, WABCO Technical Bulletin Standards |
| Parameter | Specification |
|---|---|
| Maximum Operating Pressure | 10.0 bar (145 psi) |
| Working Media | - Compressed air (clean, dry) - Brake fluid: DOT 3 / DOT 4 / SAE J1703 |
| Effective Stroke (Max) | 85 mm |
| Air Inlet Port (Port 11) | M16 × 1.5 threaded |
| Hydraulic Outlet Port (Port 1–4) | M14 × 1.5 threaded |
| Push Rod Specification | Ball-end push rod, Ø12 mm ball diameter |
| Operating Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Weight (Approx.) | 3.2 kg |
| Sealing System | NBR/FKM (Viton®) seals for oil and temperature resistance |
| Response Time | < 0.3 seconds (fast actuation) |
| Return Mechanism | Integrated return spring |
| Design Life | ≥ 1 million cycles (under normal operating conditions) |
