3502ZS10B-107
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 3502ZS10B-107 |

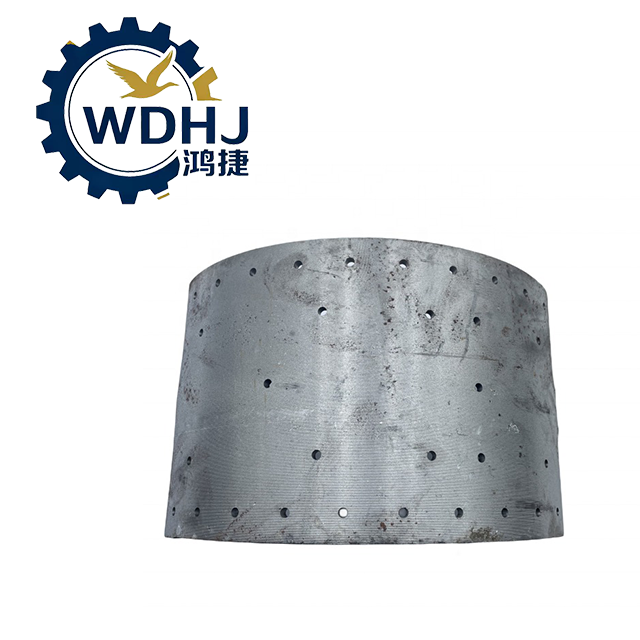

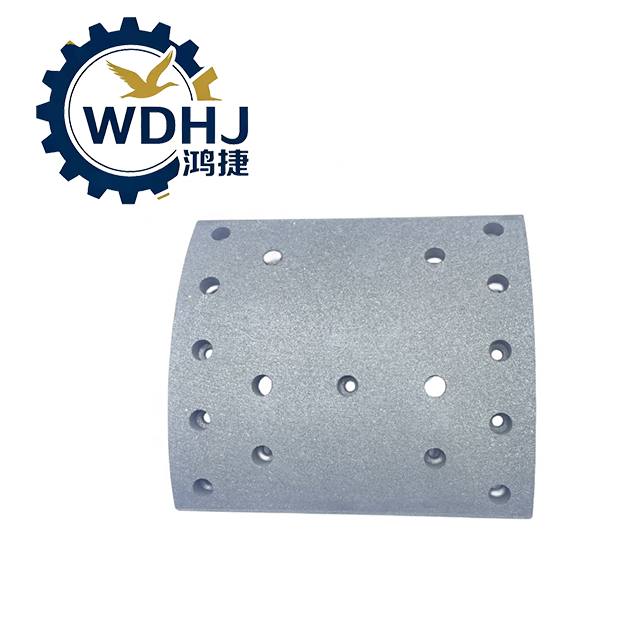

| Product Name | Rear Brake Lining Assembly / Drum Brake Friction Pad |
| Function | Provides friction surface between brake shoe and drum to generate braking force |
| Installation Position | Installed on rear axle brake shoes (left/right) |
| Vehicle Type | Heavy-Duty Trucks, Tractors, Dump Trucks, Mixers |
| Axle Compatibility | Dongfeng Dana 435, 440, 460 Series |
| Brake Drum Size Match | Ø410 mm × 220 mm |
| Friction Material Type | Semi-Metallic (Low-Copper, Environmentally Compliant) |
| Mounting Method | Riveted using dedicated rivets (e.g., 3502ZS10B-108) |
| OEM Manufacturer | Dongfeng Dana (Joint Venture) |
| Standards Compliance | GB12676-2026, ECE R90, ISO 611, QC/T 224–2023 |
| Parameter | Specification |
|---|---|
| Nominal Thickness | 18 mm – 20 mm |
| Minimum Service Limit | 5 mm (excluding steel backing plate) |
| Friction Coefficient (μ) | 0.38 – 0.42 (stable across temperature range) |
| Operating Temperature Range | 100°C to 450°C (peak short-term) |
| Heat Fade Resistance | < 15% reduction in braking efficiency at 350°C |
| Compressive Strength | ≥ 80 MPa |
| Shear Strength | ≥ 15 MPa |
| Impact Resistance | High — resists cracking under shock loading |
| Hardness (Shore D) | 65–75 |
| Asbestos Content | 0% (fully asbestos-free formulation) |
| Weight (Per Set, per Wheel) | ~2.8 kg – 3.2 kg |
| Service Life (Typical) | 180,000 – 250,000 km (varies by duty cycle) |
