AZ9100414055
Shacman Sinotruk HOWO Dongfeng FAW
| Attribute | Specification |
|---|---|
| Part Number | AZ9100414055 |

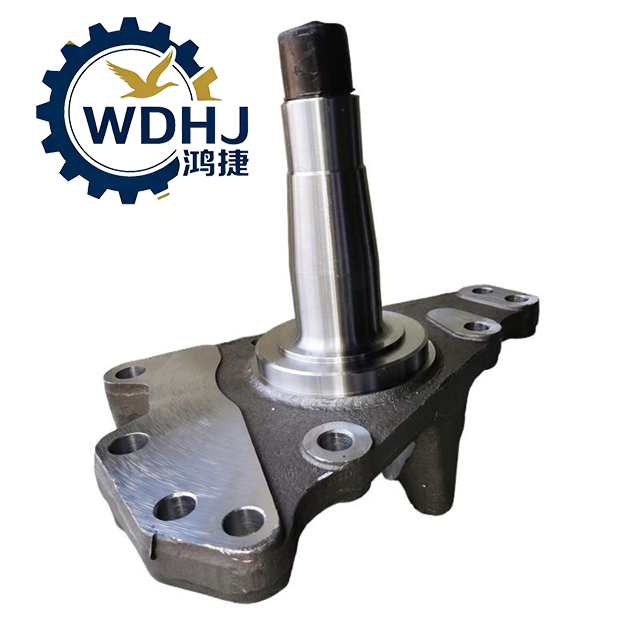

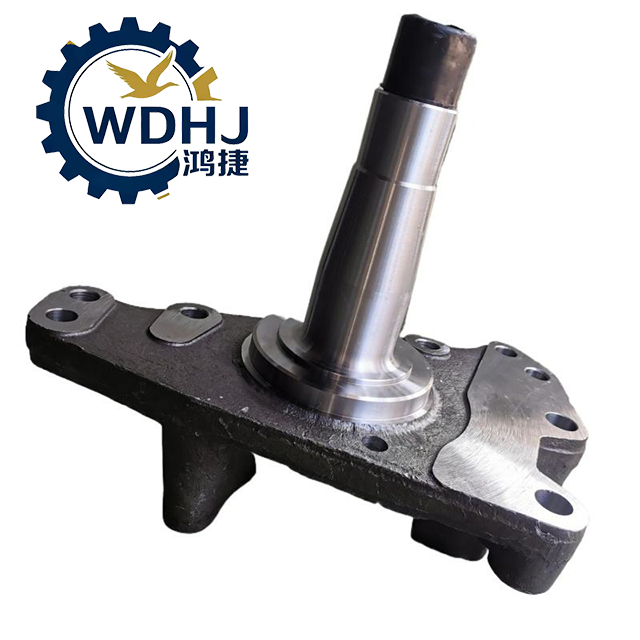

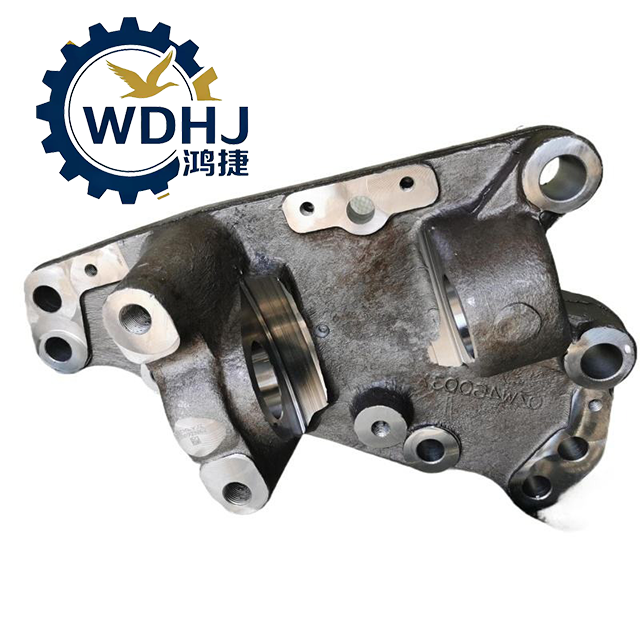

| Product Name | Right Front Steering Knuckle Assembly / Steering Spindle (RH) |
| Function | - Supports front wheel load - Enables steering motion - Mounting base for brake, arm, and suspension components |
| Installation Position | Front Axle – Right-Hand Side (RH) |
| Vehicle Type | Heavy-Duty Trucks, Tractors, Freight & Construction Vehicles |
| Compatible Platform | Sinotruk HOWO, SITRAK, Steyr D7B Series |
| Axle Compatibility | VGD71, VGD75 (7-ton to 7.5-ton class non-driven front axles) |
| Main Material | Forged Alloy Steel (40Cr or 42CrMo) |
| Heat Treatment | Overall forging + quenching & tempering + local induction hardening |
| Brake Type Compatibility | Disc Brake Configuration (specifically for disc-brake front ends) |
| Mounting Interfaces | - Kingpin bore (upper & lower) - Hub bearing seat - Brake caliper bracket - Tie rod & drag link attachment points - Steering arm mounting |
| OEM Manufacturer | Sinotruk Original Equipment |
| Standards Compliance | GB/T 28938, QC/T 310, ISO/TS 16949 |
| Parameter | Specification |
|---|---|
| Material Yield Strength | ≥ 800 MPa |
| Hardness (Surface Treated Area) | HRC 50–58 (main pin bores and journal areas) |
| Kingpin Bore Diameter | ~Φ55 mm – Φ60 mm (for upper/lower bushings) |
| Hub Bearing Seat Diameter | Matches double-row taper roller bearings |
| Weight (Approx.) | 38 kg – 45 kg |
| Overall Dimensions (L×W×H) | Approx. 600 × 300 × 500 mm |
| Tolerance Grade | IT7–IT8 (precision machined surfaces) |
| Fatigue Life | ≥ 1 million cycles under rated load |
| Load Capacity | Designed for 7–7.5 ton front axle applications |
| Operating Temperature Range | -40°C to +120°C |
| Grease Fitting (Zerk) | 2 locations (upper and lower bushings) |
| Recommended Lubrication Interval | Every 5,000–10,000 km using EP Lithium Grease |
