WG9925810001
Sinotruk HOWO
| Attribute | Specification |
|---|---|

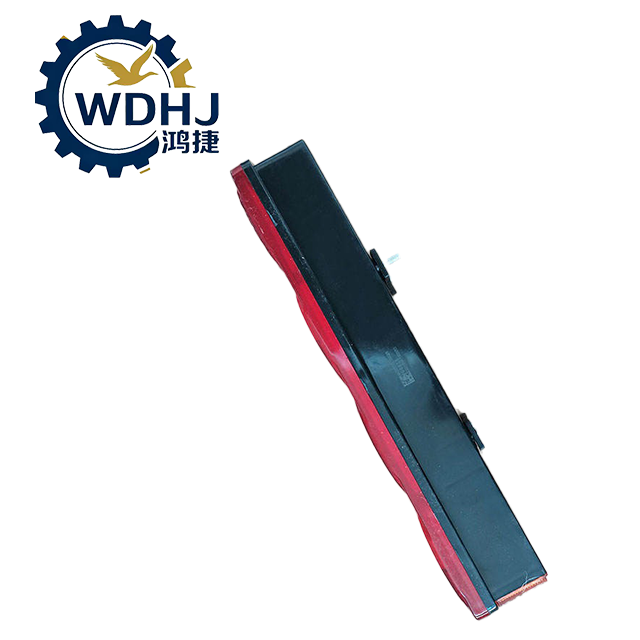

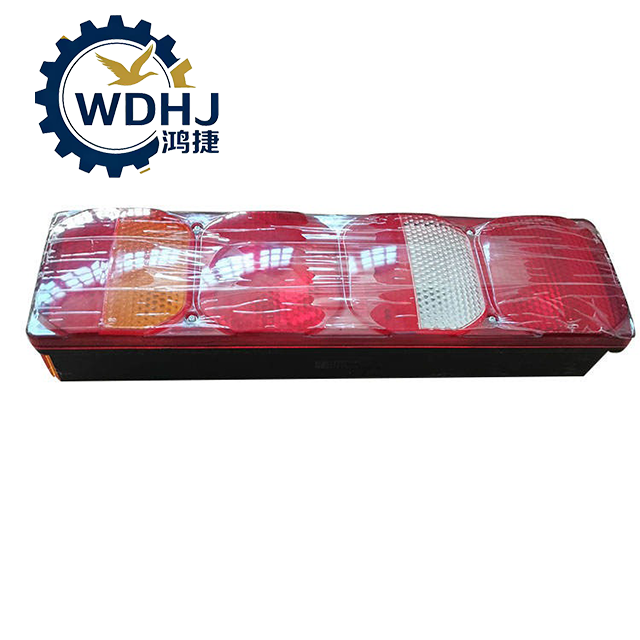

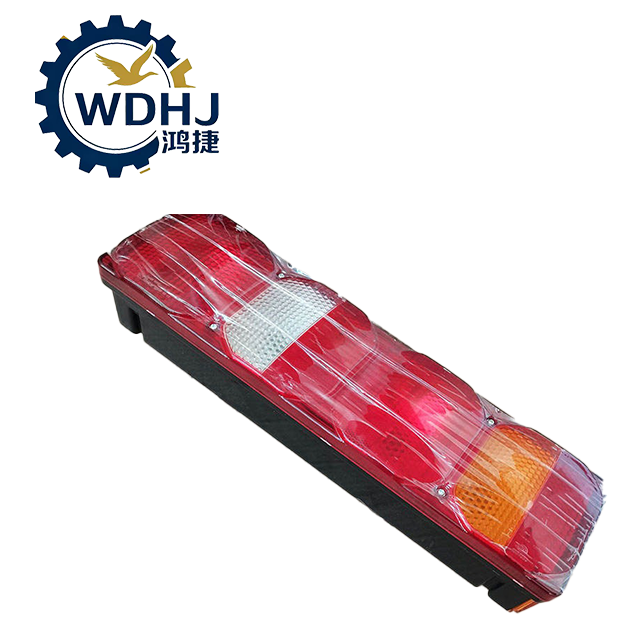

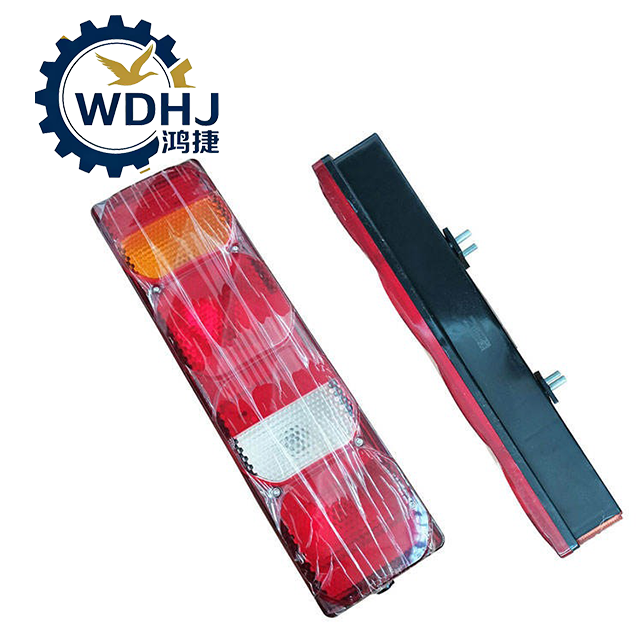

| Part Name | Left Combined Rear Light Assembly / Left Tail Lamp Unit |
| OEM Part Number | WG9925810001 |
| Side | Left-hand side (driver side) — NOT interchangeable with right |
| Voltage Rating | 24V DC (standard for Chinese/European commercial vehicles) |
| Integrated Functions | • Rear Position Light (Red) • Brake Light (Bright Red) • Turn Signal (Amber/Yellow) • Reverse Light (White) • Rear Fog Light (Red) • Reflective Panel (Red reflex reflector) |
| Light Source Type | Available in two versions: • Halogen bulb version • LED module version (preferred; more common in 2025 models) |
| LED Advantages | Lower power consumption (~3W vs 21W), longer lifespan (>50,000 hrs), instant response |
| Lens Material | High-impact polycarbonate (PC) with UV-resistant coating to prevent yellowing |
| Housing Material | High-strength engineering plastic (ABS/PC blend), impact- and vibration-resistant |
| Sealing System | Rubber gasket + IP67-rated sealed multi-pin connector |
| Protection Level | IP67 — Dust-tight and protected against temporary immersion (1m depth for 30 minutes) |
| Mounting Method | Bolt-on using brackets or screws into chassis/tail frame |
| Connector Type | Multi-pin OEM plug (typically 7–11 pins), anti-reverse design |
| Weight | Approx. 1.2 kg – 1.5 kg |
| Dimensions (Approx.) | 460 mm × 130 mm × 30 mm (varies slightly by model year) |
| Certifications | ISO9001, CE, RoHS, GB/T 4785 (automotive lighting standards) |
Name1
Name2
Proper installation ensures correct sealing, grounding, and signal functionality.
Power Off: Disconnect battery negative terminal before starting.
Inspect Mounting Area: Clean any rust, dirt, or old sealant from the chassis.
Check New Unit: Verify lens clarity, gasket condition, and wiring integrity.
Compare Old vs New: Confirm identical function layout (e.g., fog light position).
Remove existing tail light by unscrewing 2–3 mounting bolts/screws.
Unplug the multi-pin electrical connector carefully.
Install new WG9925810001 onto the chassis — align with holes and press firmly to seat the rubber seal.
Secure with stainless steel screws (torque: ~5–8 Nm).
Plug in the electrical connector until it clicks — ensure locking tab engages.
Restore power and test all functions:
Tail light ON
Brake pedal pressed → bright red brake light
Turn signal activated → flashing amber
Reverse gear engaged → white reverse light
Rear fog switch ON → red fog light
