812W27202-6215
Sinotruk HOWO
| Attribute | Description |
|---|---|

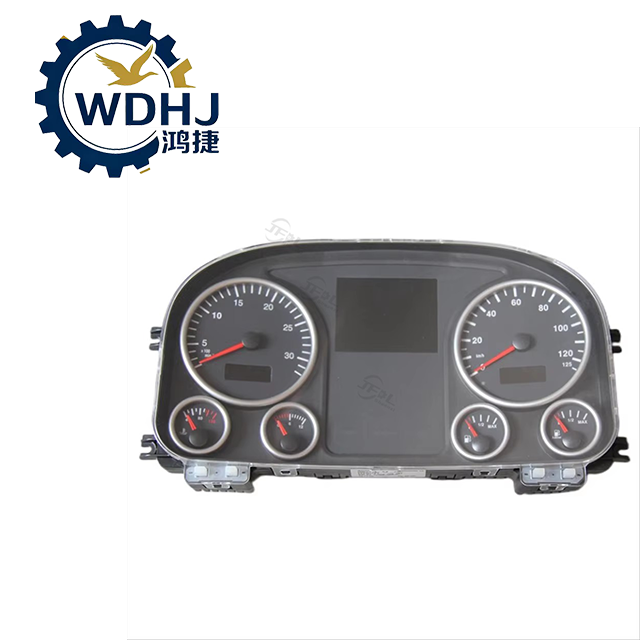

| Part Name | Combination Instrument Cluster / Digital Dashboard Assembly |
| OEM Part Number | 812W27202-6215 |
| Alternative Numbers | See Section 4 – Cross Reference |
| Voltage Rating | 24V DC (standard for Chinese commercial vehicles) |
| Display Type | Hybrid design: Analog dials + Digital LCD screen |
| Analog Gauges | Speedometer, Tachometer (RPM), Dual-circuit Air Pressure, Coolant Temperature, Fuel Level |
| Digital LCD Display | Odometer, Trip Meter, Instantaneous & Average Fuel Consumption, Urea (AdBlue) Level, Gear Position Indicator, DTCs (Diagnostic Trouble Codes), Driver Alerts |
| Backlighting | White/orange LED backlight; auto-dimming based on ambient light conditions |
| Communication Protocol | High-Speed CAN Bus (CAN 2.0B) – interfaces with Engine ECU, Transmission, ABS, and Aftertreatment Systems |
| Housing Material | Flame-retardant PC+ABS engineering plastic (UV-resistant and anti-aging) |
| Lens Material | Optical-grade transparent polycarbonate with anti-glare coating |

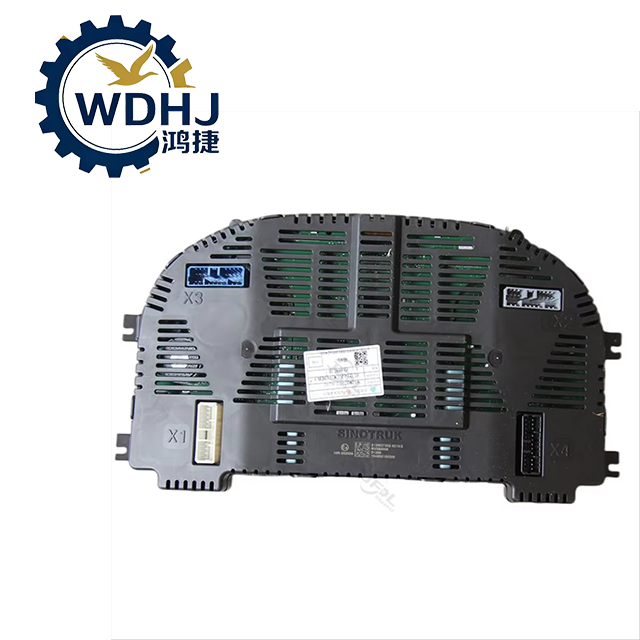

| Connector Type | Multi-pin sealed electrical connector (AMP or equivalent) at rear |
| Operating Environment | Designed for harsh conditions: vibration, dust, temperature extremes |
| Certifications | ISO9001, CCC (China Compulsory Certification), GB/T standards for automotive electronics |
Name1
Name2
Due to its electronic complexity, proper installation requires adherence to strict procedures.
Power Off: Disconnect battery ground terminal and fully depressurize electrical system.
Anti-Static Precautions: Wear an ESD wrist strap; avoid touching circuit pins directly.
Inspect Connector: Ensure mating plug and socket are clean, dry, and free from bent pins or corrosion.
Verify Compatibility: Confirm that the new instrument cluster matches your vehicle’s VIN, engine type (Euro V / Euro VI), transmission (manual/auto), and axle ratio.
Remove old instrument panel carefully using trim tools — avoid scratching the dashboard.
Unplug multi-pin connector(s) at the back of the cluster.
Install the new 812W27202-6215 into the dashboard housing securely.
Reconnect all electrical connectors firmly until they click.
Reinstall trim panels and reconnect battery.
❗ Critical Step – Post-Installation Programming Required
The new instrument must be programmed using SINOTRUK official diagnostic equipment (e.g., EOL Tester or SCN Coding Tool).
Required processes:
VIN Write-In: Program the actual vehicle VIN into the instrument memory.
Configuration Download: Load correct parameters (engine model, gear ratios, tire size, etc.).
Odometer Synchronization: Match current mileage from original unit or legal records.
Failure to perform this step may result in:
Blank or incorrect readings
Missing gear display
Inability to start or pass inspection
Violation of regulatory compliance
✅ Recommendation: Perform programming at an authorized SINOTRUK service center.
