| Quantity: | |
|---|---|

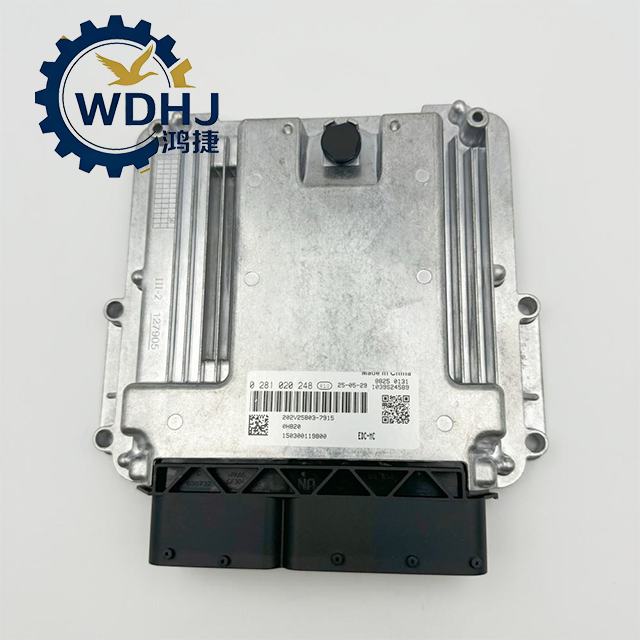

0281020248 0281020292
Sinotruk HOWO
| Attribute | Description |
|---|---|
| Part Name | Engine Control Unit (ECU) / Engine Control Module (ECM) |
| Common Names | Diesel Engine Management System, Electronic Control Module, Bosch ECU |
| OE Number (Original Equipment) | 0281020292 |
| Hardware Model | Bosch EDC17CV44 |
| Manufacturer | Robert Bosch GmbH (Germany) |
| Function | Central processing unit that monitors and controls all aspects of diesel engine operation including: |
Fuel injection timing and quantity
Turbocharger boost pressure
Idle speed regulation
EGR (Exhaust Gas Recirculation)

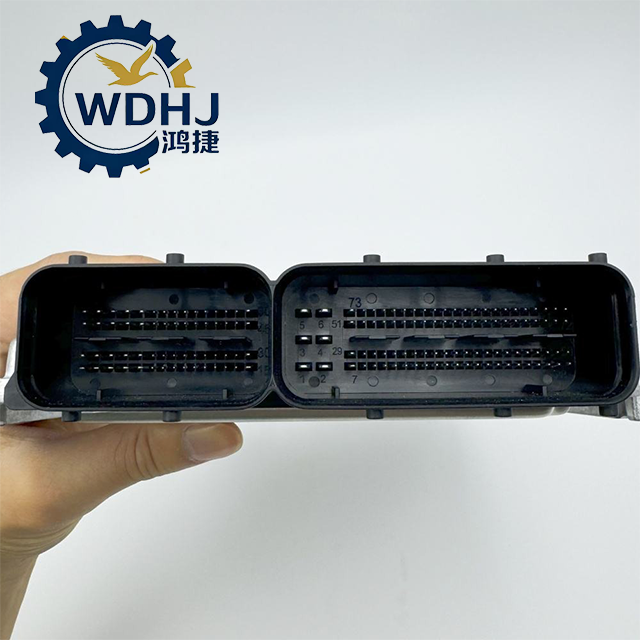

OBD-II diagnostics and fault logging | Mounting Location | Typically mounted on the driver’s side chassis rail or inside cab near firewall for vibration damping | | Interface Type | Multi-pin waterproof connector (typically 100+ pins), CAN bus communication enabled |
Name1
Name2
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC – Standard for heavy-duty commercial vehicles |
| Operating Voltage Range | 18–32V DC (compatible with charging system fluctuations) |
| Supported Cylinder Configurations | Up to 12-cylinder inline diesel engines (e.g., MC11, MC13) |
| Microcontroller Platform | 32-bit TriCore™ processor (Infineon), optimized for real-time engine control |
| Memory Type | Flash memory (program/data storage), EEPROM, RAM |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature | -40°C to +100°C |
| Environmental Protection | • Vibration resistance up to 1000 Hz • Dust/water protection equivalent to IP6K9K under sealed conditions |
| Cooling Method | Passive conduction cooling via metal housing; no fan required |
| Weight | Approx. 1.2 – 1.6 kg |
| Dimensions (Approx.) | 22 cm × 14 cm × 6 cm (varies slightly by harness type) |
| Compliance Standards | ISO 26262 (functional safety), OBD-II, EOBD, Euro 5 / Euro 6 emission standards |
| Communication Protocols | CAN Bus (Controller Area Network), K-Line (for diagnostics) |
⚠️ WARNING: Never install or replace an ECU without proper diagnostic tools and security access.
Park securely and apply parking brake.
Turn off ignition and disconnect both battery terminals.
Wait 3–5 minutes for system discharge.
Locate the ECU (usually under dash or on frame rail).
Remove protective cover and clean area.
Take photo of wiring layout.
Unplug multi-pin connector carefully.
Inspect pins for corrosion, bending, or overheating signs.
Unscrew mounting brackets or bolts.
Gently remove unit — avoid shock or static discharge.
Mount new unit securely using original hardware.
Ensure grounding strap is connected properly.
Torque screws to ~8–10 N·m.
Align connector correctly and push firmly until it clicks.
Secure secondary locking lever (if equipped).
