712W61942-1315
Sinotruk HOWO
| Attribute | Description |
|---|---|

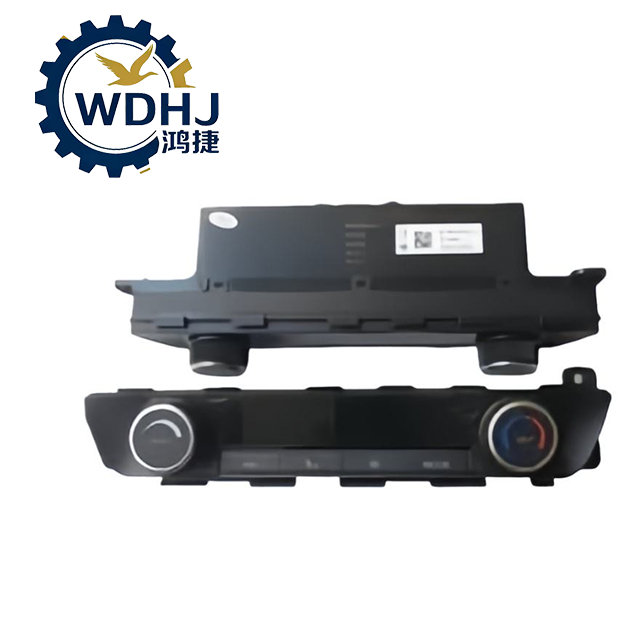

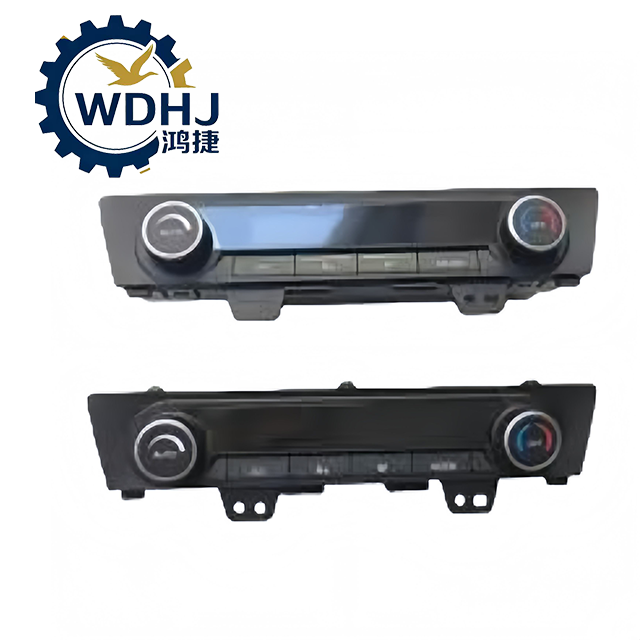

| Part Name | A/C Control Unit / Climate Control Panel / HVAC Control Module |
| Common Names | Air Conditioning Controller, Climate Console, Digital HVAC Interface |
| OE Number (Original Equipment) | 712W61942-1315 |
| Manufacturer | China National Heavy Duty Truck Group (Sinotruk / CNHTC) |
| Function | Central user interface and logic controller for the truck’s heating, ventilation, and air conditioning (HVAC) system |
| Control Type | Electronic push-button and rotary knob interface with integrated microprocessor |
| Display | Digital LCD screen showing set temperature, fan speed, mode status, and system feedback |
| Mounting Location | Center console of the dashboard (driver-accessible position) |
| Interface Type | Multi-pin electrical connector with CAN bus communication support |
| Condition | New Original Equipment Manufacturer (OEM) part |
Name1
Name2
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC – Standard for commercial vehicle electrical systems |
| Operating Voltage Range | 18–32V DC (compatible with battery charging fluctuations) |
| Control Functions | • Temperature setting (manual or auto) • Fan speed adjustment (stepless or multi-level) • Airflow mode selection: Face, Feet, Defrost, Mix • Recirculation / Fresh air toggle • A/C compressor on/off command |
| User Interface | Combination of tactile buttons and rotary dial(s); some versions include backlighting |
| Communication Protocol | Supports CAN Bus (J1939) for integration with vehicle ECU, HVAC actuators, and sensors |
| Housing Material | Flame-retardant, high-impact engineering plastic (ABS/PC blend) |
| Internal Components | PCB with MCU (Microcontroller Unit), capacitors, resistors, LED drivers |
| Sealing Level | IP54 – Dust protected and splash resistant (not submersible) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Dimensions (Approx.) | 20 cm × 10 cm × 5 cm |
| Weight | Approx. 0.7 – 1.0 kg |
| Durability | Keypad tested for over 100,000 actuations; designed for long-term use in harsh environments |
⚠️ WARNING: This is an electronic control module connected to the vehicle’s CAN network. Improper handling can cause communication failure.
Park securely and apply parking brake.
Turn off ignition and disconnect both battery terminals.
Wait 2–3 minutes to discharge stored energy.
Remove trim bezel around the center console carefully (use plastic pry tools).
Take note of wiring harness routing and grounding points.
Unplug multi-pin connector from the back of the panel.
Inspect pins for corrosion, bending, or moisture damage.
Unscrew mounting brackets or release clips.
Gently pull out the old control unit — avoid damaging surrounding components.
Insert new unit into dash opening.
Secure with original fasteners.
Reconnect main electrical plug firmly until it clicks.
Reconnect battery.
Turn key to ON (do not start engine).
Observe display: should light up and show default settings
