| Quantity: | |
|---|---|

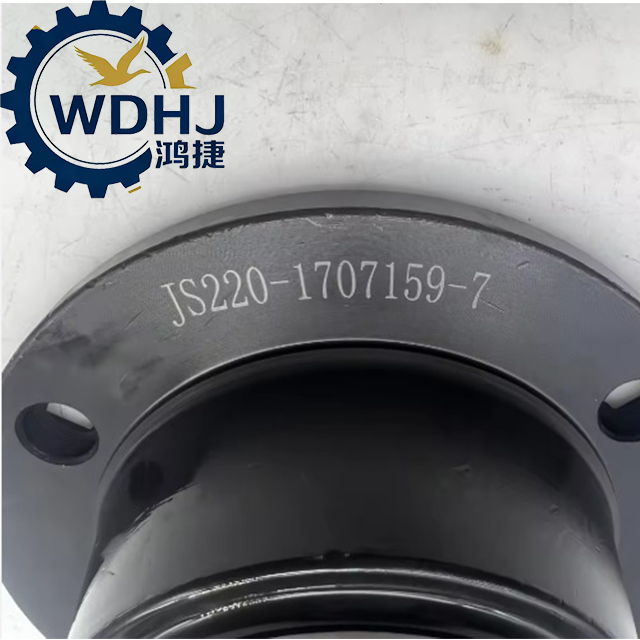

JS220-1707159-7
Shacman
| Attribute | Description |
|---|---|

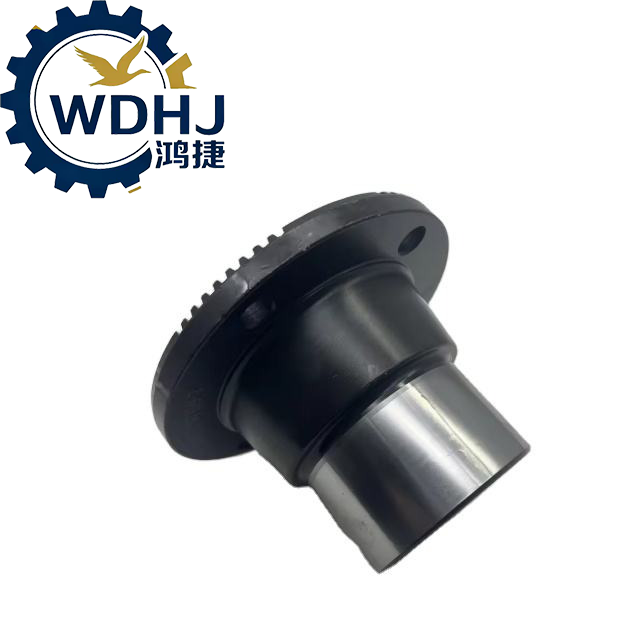

| Part Name | Transmission Output Flange Assembly / Drive Shaft Coupling Flange |
| Primary Function | Transfers rotational power from the gearbox output shaft to the universal joint of the propeller shaft |
| Manufacturer | Designed for Fast Gear (FaShiTe) 10JS / 12JS series transmissions (e.g., 10JS160, 12JS200TA, etc.) |
| Material | Forged steel or alloy cast steel – high strength and wear resistance |
| Heat Treatment | Surface hardened (quenched & tempered) for durability under high-torque conditions |

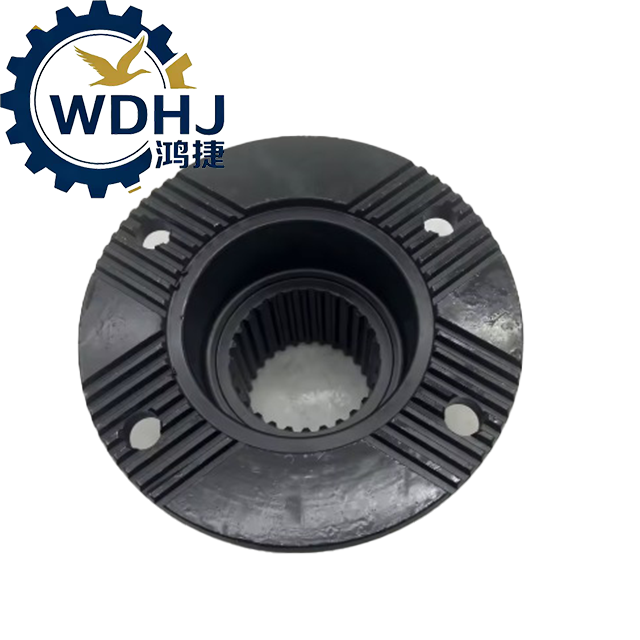

| Spline Type (Z) | 28 teeth (28-spline) internal/external spline profile |
| Total Height (H) | Approximately 123 mm (standardized length for compatibility with Fast Gear output shafts) |
| Mounting Hole Pattern | 4-bolt circular pattern (commonly M16 or M18 bolts, spaced evenly on pitch circle diameter) |
| Flange Diameter | Typically Ø180–200 mm (varies slightly by supplier; must match U-joint yoke) |
| Connection Type | Bolted to drive shaft yoke using high-tensile fasteners |
| Sealing Interface | Features machined surface for proper fitment with rear output oil seal |
| Balance Grade | Precision-balanced to minimize vibration at high speeds |
| Quality Standard | OEM Specification / High-Quality Aftermarket Equivalent |
| Weight (Approx.) | 4.5 – 6.0 kg |
|
|
|
