| Quantity: | |
|---|---|
DZ9014932005
Shacman
| Attribute | Description |
|---|---|

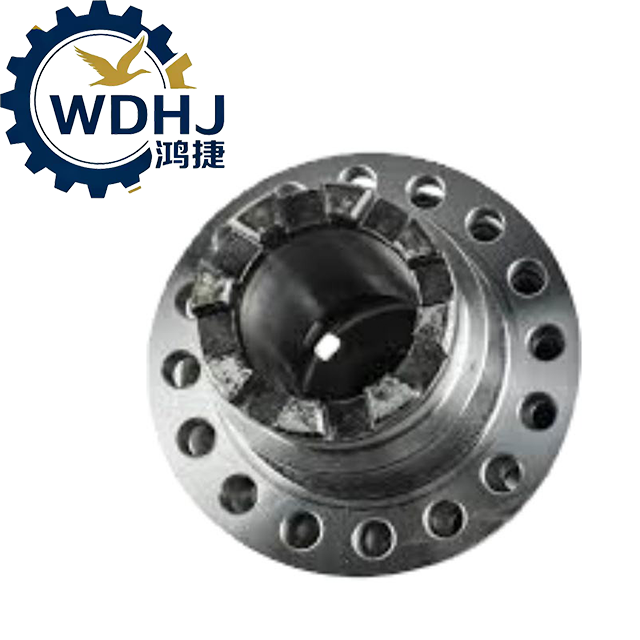

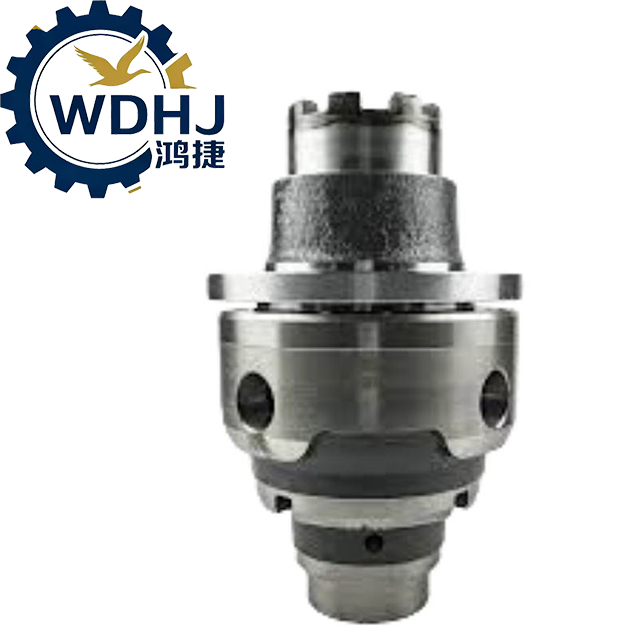

| Part Name | Middle Axle Differential Housing / Differential Case |
| Primary Function | Encloses and supports the differential gears (side gears, pinion gears, cross shaft), maintaining alignment and allowing smooth differential action during cornering |
| Installation Position | Located inside the center or tandem drive axle housing — specifically on the middle axle of 6x4 or 8x4 heavy-duty trucks |
| Design Type | Typically two-piece split housing (left and right halves bolted together), precision-machined for alignment |
| Material | High-strength cast iron (e.g., QT500-7 ductile iron) or forged cast steel, ensuring rigidity and shock resistance |
| Manufacturing Process | Precision casting + CNC machining to ensure accurate bearing bores, flange surfaces, and mounting interfaces |
| Bearing Support | Integrated bore housings for differential side bearings (tapered roller bearings) |
| Gear Compatibility | Designed to accommodate standard spiral bevel gears used in Shacman/HanDe axle systems |
| Mounting Interface | Bolted connection to main carrier housing; attaches to ring gear (crown wheel) via bolts |
| Quality Standard | OEM Original Specification / Premium Aftermarket Equivalent |
| Weight (Approx.) | 35–50 kg (depending on design and material thickness) |
|
|
|
