| Quantity: | |
|---|---|

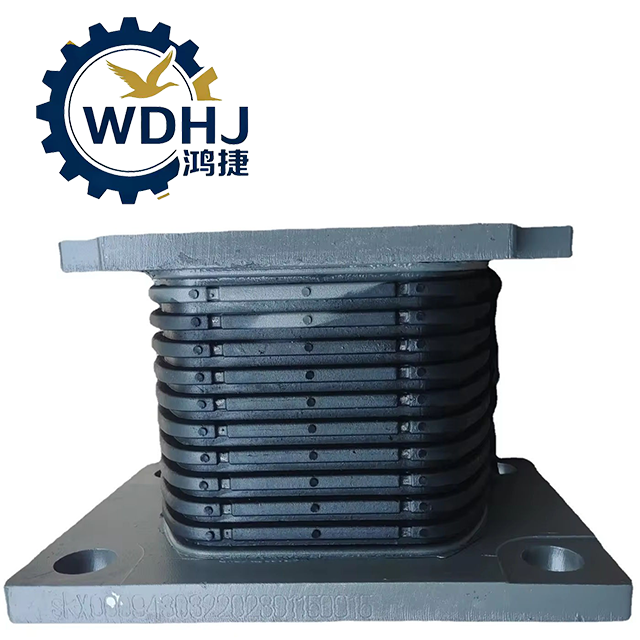

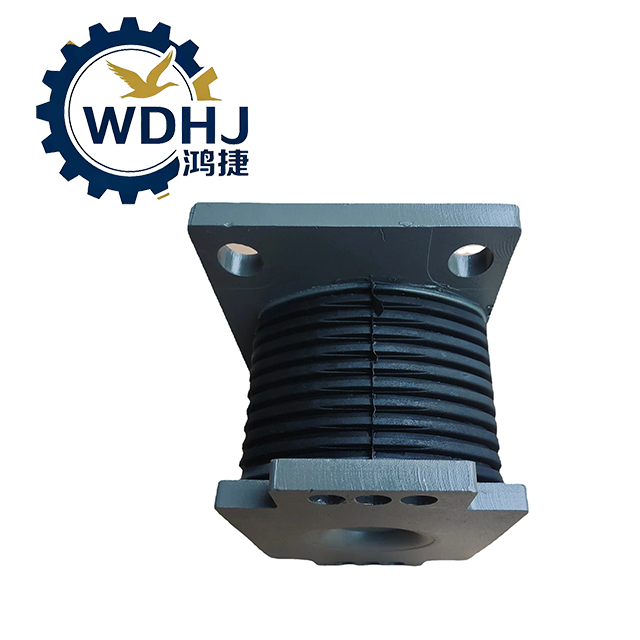

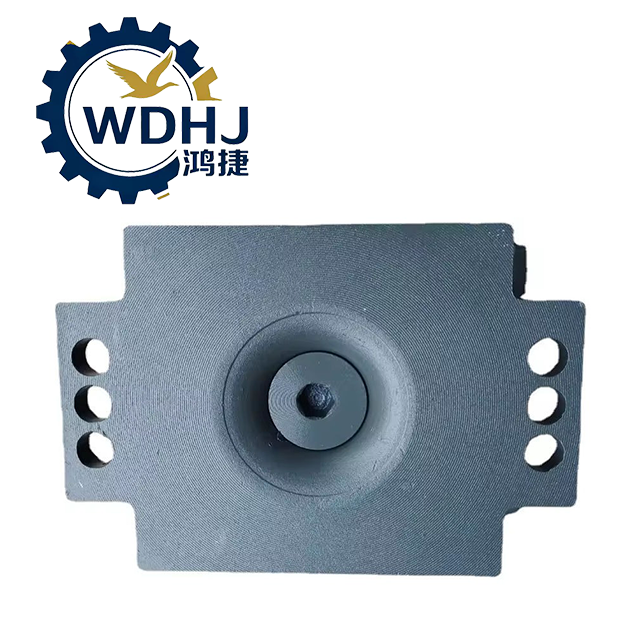

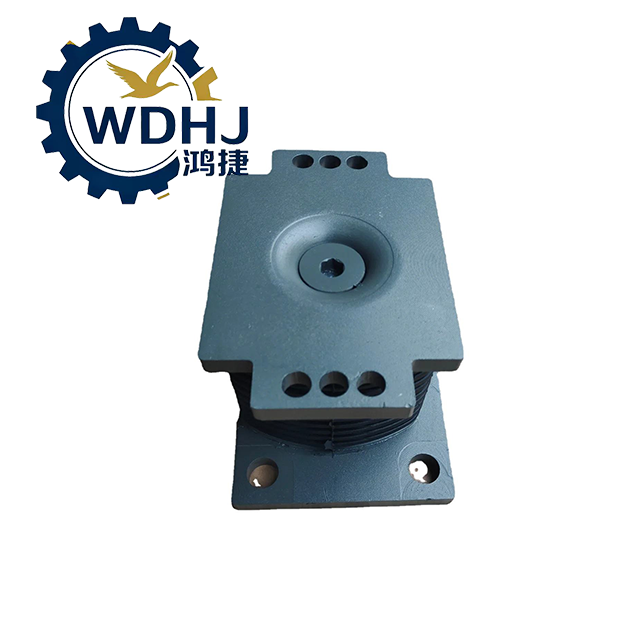

AZ9725520278
Shacman Sinotruk HOWO Dongfeng FAW
| Attribute | Specification |
|---|---|
| Part Number | AZ9725520278 |
| Product Name | Rubber Mount Assembly / Vibration Isolator |
| Function | Shock absorption, vibration damping, noise reduction, structural isolation |
| Application Location | Engine Mounting, Gearbox Support, Cab Suspension, Frame Bracket Interface |
| Vehicle Type | Heavy-Duty Trucks, Tractors, Construction Vehicles, Long-Haul Freight Carriers |
| Core Material – Rubber | Natural Rubber (NR) + Styrene-Butadiene Rubber (SBR), high resilience |
| Hardness (Shore A) | 65° ± 5° |
| Reinforcement Core | Internal steel insert (zinc-coated or galvanized) |
| Mounting Type | Bolt-through center bore (male stud or female sleeve style depending on variant) |
| Installation Method | Bolted between two components using washers and nuts |
| Load Direction | Vertical compression and shear loads |
| Working Environment | Resistant to oil mist, moisture, dust, and moderate UV exposure |
| OEM Compatibility | Designed for Sinotruk HOWO, MAN TG series derivatives |
| Standards Compliance | GB/T 14961, ISO 4661, QC/T 630 (Rubber Automotive Mounts) |
| Parameter | Specification |
|---|---|
| Outer Diameter (OD) | Approx. 80 mm – 90 mm |
| Inner Bore / Stud Size | M16 threaded stud or Φ17 mm smooth bore (common variants) |
| Overall Height | 40 mm – 50 mm |
| Steel Insert Dimensions | Inner thread: M16×1.5; Flange diameter: ~70 mm |
| Static Load Capacity | 8,000 N – 15,000 N (depending on application) |
| Dynamic Load Rating | Up to 5,000 N cyclic |
| Compression Deflection | 3–6 mm at rated load |
| Spring Rate (Approx.) | 200–350 N/mm |
| Operating Temperature Range | -40°C to +90°C (-40°F to +194°F) |
| Oil & Fluid Resistance | Good resistance to engine oil mist and brake fluid (short exposure) |
| Fatigue Life | ≥ 2 million cycles (per GB/T 14961 test standard) |
| Weight (Each) | ~0.8 kg – 1.2 kg |
| Color | Black rubber with metallic sheen (steel core visible at ends) |
