WG9725520076
Shacman Sinotruk HOWO FAW
| Attribute | Description |
|---|---|

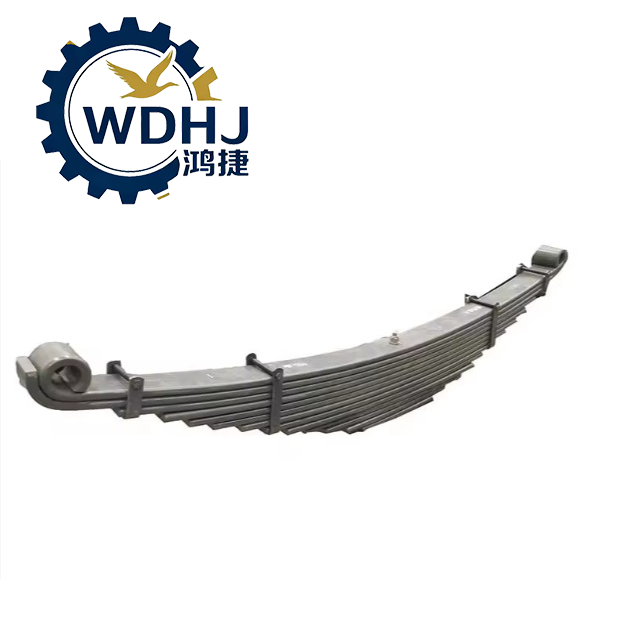

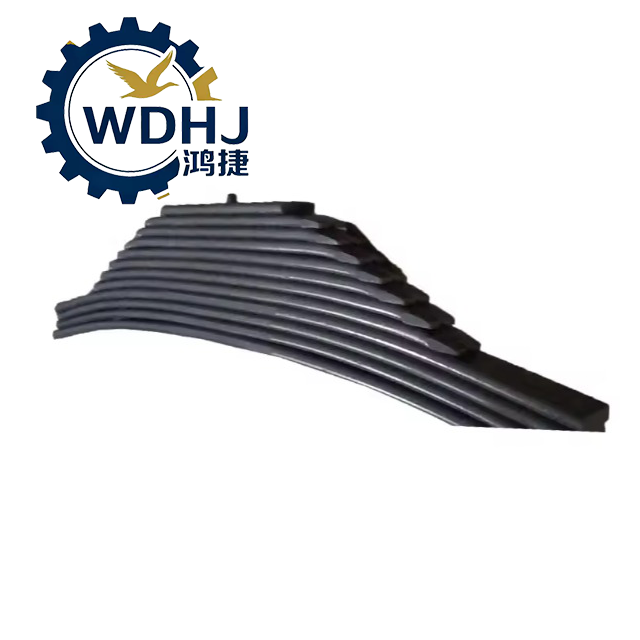

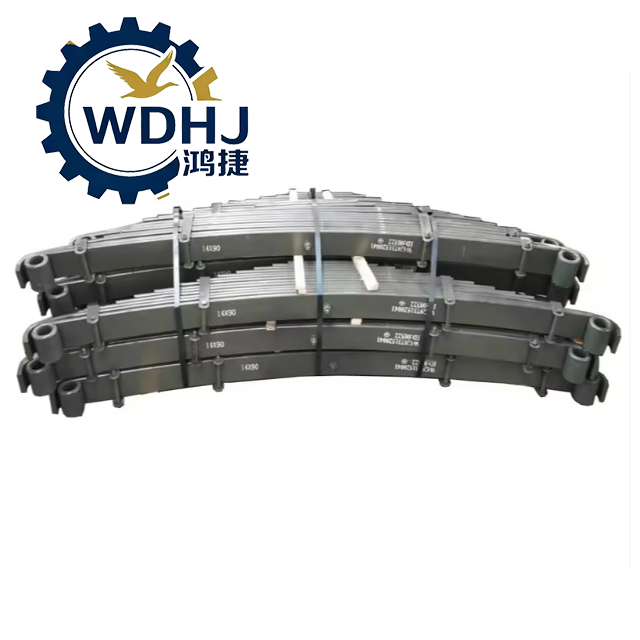

| Product Name | Front Left Leaf Spring Assembly |
| Part Number | WG9725520076 |
| Position | Front Axle – Left Side |
| Function | Supports vehicle weight, absorbs road shocks, maintains ride height and axle alignment |
| Design Type | Multi-Leaf Semi-Elliptical Spring |
| Material | High-Strength Alloy Steel (e.g., 60Si2Mn, SUP9, SUP10, 50CrV4) |
| Surface Treatment | Shot-peened for enhanced fatigue resistance; anti-rust coating |
| Application | Heavy-Duty Commercial Vehicles – Trucks & Chassis |
| Quality Standard | Meets or exceeds SINOTRUK OEM specifications |
| Parameter | Specification |
|---|---|
| Overall Length | Approx. 1800 mm |
| Width | 90 mm (standard) |
| Thickness per Leaf | 18 mm (main leaf), tapering on secondary leaves |
| Number of Leaves | Typically 9 to 11 leaves (varies by model/year) |
| Weight (Total Assembly) | 20 kg – 100 kg (depending on configuration) Single Leaf Weight: ~14–24 kg |
| Load Capacity | Designed for medium-to-heavy duty loads (up to rated GVW of vehicle) |
| Spring Rate | Optimized for balance between comfort and load-carrying capability |
| Mounting Style | U-bolt clamped to axle housing with center bolt and rebound clips |
