612600030020/33 612600030033/34 Connecting Rod Bearing WD615 Diesel Engine Parts for FAW Jiefang Tipper Truck Tractor Truck

612600030020/33 612600030033/34 Connecting Rod Bearing WD615 Diesel Engine Parts for FAW Jiefang Tipper Truck Tractor Truck

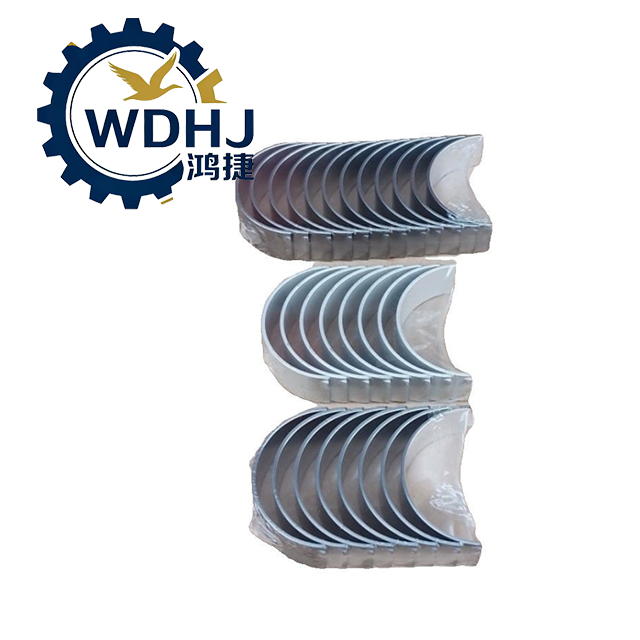

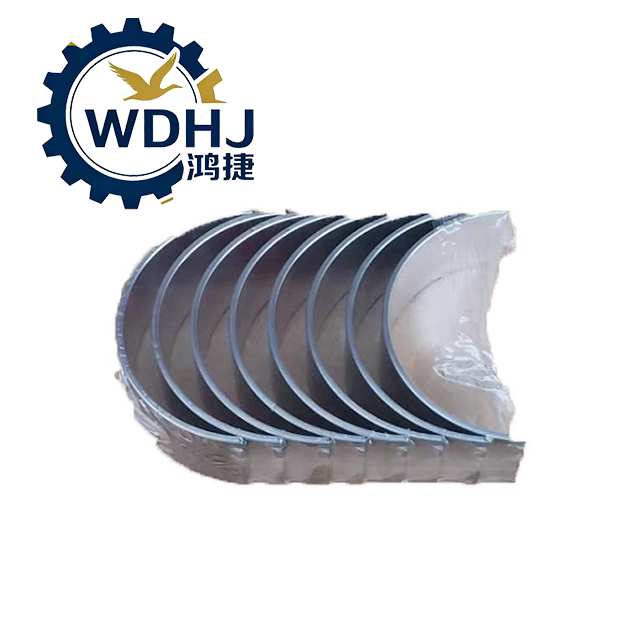

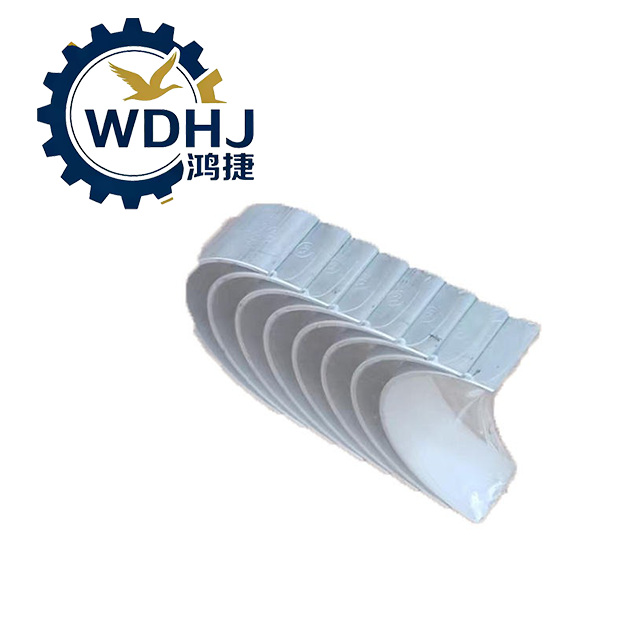

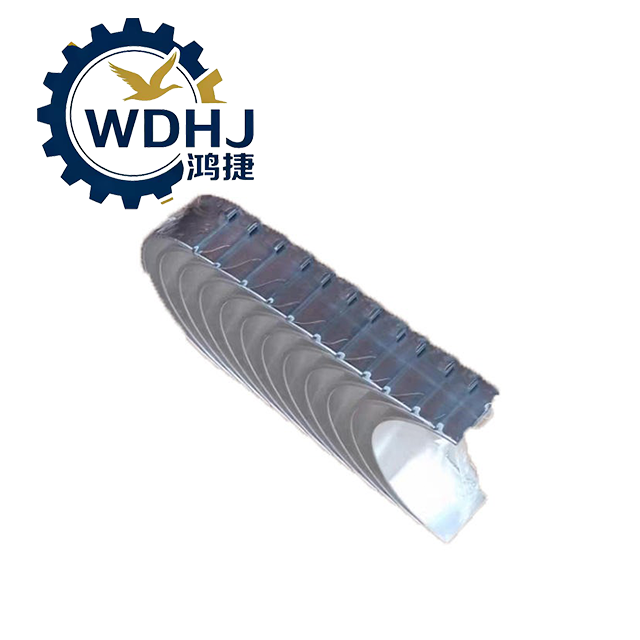

The Connecting Rod Bearing (Part No. 612600030020) is an original equipment (OE) precision wear component produced by Weichai Power, designed for use in heavy-duty diesel engines within the Weichai WD and WP series. Commonly referred to as the "small bearing" or "conrod bushing," this critical engine part serves as the sliding interface between the connecting rod big end and the crankshaft journal.

Engineered for high-load operation under extreme pressure and temperature conditions, this bearing ensures smooth rotational motion while maintaining hydrodynamic oil film integrity. It plays a vital role in reducing friction, preventing metal-to-metal contact, and protecting both the crankshaft and connecting rod from premature wear or catastrophic failure such as bearing seizure ("burned bearing") or crankshaft damage.

Quantity:
Availability:





Inquire Add to Basket

Model:
612600030020
Brand:
FAW

Product Description

Attribute	Description
Product Name	Connecting Rod Bearing / Conrod Bushing
Manufacturer	Weichai Power Co., Ltd. (China)
Type	Original Equipment (OE) Replacement Part
Function	Supports the crankshaft connecting rod journal with low-friction, high-load bearing surface; enables efficient power transmission
Application	Internal combustion diesel engines – mid-lower assembly
Material Construction	Steel-backed with copper-lead alloy overlay (some variants feature sputter-coated anti-scuff layer)
Performance Features	High fatigue resistance, excellent embeddability, corrosion resistance, and conformability
Quality Standard	Manufactured to strict Weichai OEM specifications for dimensional accuracy, load capacity, and thermal stability

Parameter	Value / Detail
OEM Part Number	612600030020
Bearing Type	Split shell-type connecting rod main bearing (standard size – STD)
Journal Diameter	Approx. 90mm (designed for Weichai WD615, WP10, WD10 series crankshafts)
Width	34mm – 36mm (varies slightly by application)
Wall Thickness	Standard: ~2.5mm
Back Material	High-strength steel backing for structural support
Overlay Layer	Copper-lead alloy or aluminum-based bimetal with solid lubricant impregnation
Lubrication Design	Precision-machined oil grooves and holes to ensure uniform oil film distribution under pressurized lubrication system
定位 Feature	Equipped with anti-rotation tang (locating tab/ledge) to prevent spinning inside the conrod bore
Load Capacity	Designed to withstand peak loads exceeding 100 MPa in continuous duty cycles
Operating Environment	Compatible with standard diesel engine oil (API CF-4/CH-4 or higher); functions effectively at temperatures up to +180°C locally
