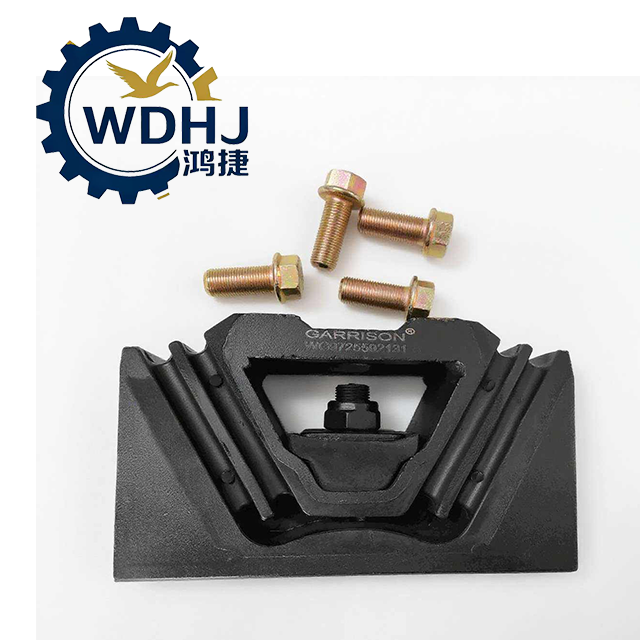

Brand New Rear Engine Bearer WG9725592131 for Heavy Truck Sinotruk Shacman Faw Foton Beiben Engine rear support / Rear engine mount / Rear wedge bearing assembly

The WG9725592131 Rear Engine Support Assembly, commonly known as the Rear Engine Mount, Engine Rear Foot Pad, or Wedge Block Bearing, is a critical vibration-isolating component in the powertrain system of SINOTRUK (China National Heavy Duty Truck Group) HOWO series heavy-duty commercial vehicles. This high-strength composite mount connects the rear end of the engine to the chassis frame, providing both structural support and dynamic damping of engine vibrations, torque reaction forces, and operational shocks.

Designed specifically for HOWO A7, T7H, TX, NX, and SITRAK models equipped with Weichai WD615, WD10, WD12 engines, this wedge-shaped rubber-metal assembly plays a vital role in:

Reducing NVH (Noise, Vibration, Harshness) transmitted into the cab
Preventing excessive engine movement during acceleration and braking
Protecting transmission, exhaust, and drivetrain components from misalignment damage
Manufactured using high-temperature vulcanization technology, it combines a multi-layer steel-reinforced core with high-damping natural rubber (NR), delivering excellent fatigue resistance, anti-settlement performance, and long-term durability under full-load conditions.

Quantity:
Availability:





Inquire Add to Basket

Model:
WG9725592131
Brand:
FAW

Product Description

Attribute	Description
Product Name	Rear Engine Support Assembly / Wedge Block Mount
Common Names	Rear Motor Mount, Engine Rear Foot, Rubber Wedge Block
Function	Supports rear engine load; isolates vibration and absorbs torque impact
Position	Installed at left/right sides of the engine rear mounting points
Design Type	Wedge-shaped rubber-steel bonded structure with through-bolt hole
Application Type	Heavy-Duty Trucks, Tractors, Dumpers, Long-Haul Freighters

Parameter	Specification
OEM Part Number	WG9725592131
Alternative Numbers
• AZ9725592131 (SINOTRUK standard prefix variant)
• WG9725593016 (different design – verify fitment before use)
Weight per Unit	4.8 kg – 5.2 kg (heavy-duty construction)
Structure Type	Wedge block design with multi-directional damping capability
Rubber Material	High-damping natural rubber (NR), hardness: 70–75 Shore A
Metal Frame	Q235 carbon steel or cast steel, phosphated + anti-rust paint coating
Bonding Process	High-temperature vulcanization for permanent rubber-to-metal adhesion
Operating Temperature Range	-40°C to +120°C
Load Capacity	Designed for 336HP–420HP diesel engines (e.g., Weichai WD615, WD10, WD12)
Performance Features	3D damping (vertical, longitudinal, lateral), anti-shear strength, low settlement rate
