| Quantity: | |
|---|---|
3502407-4E
FAW
| Attribute | Description |
|---|---|

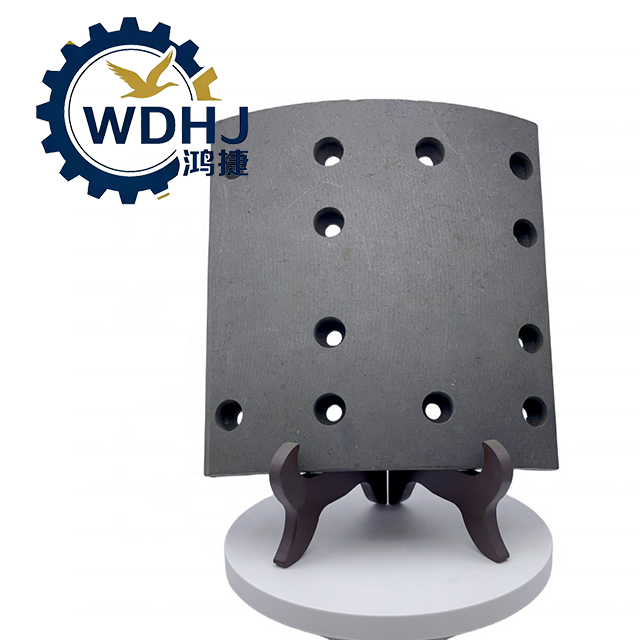

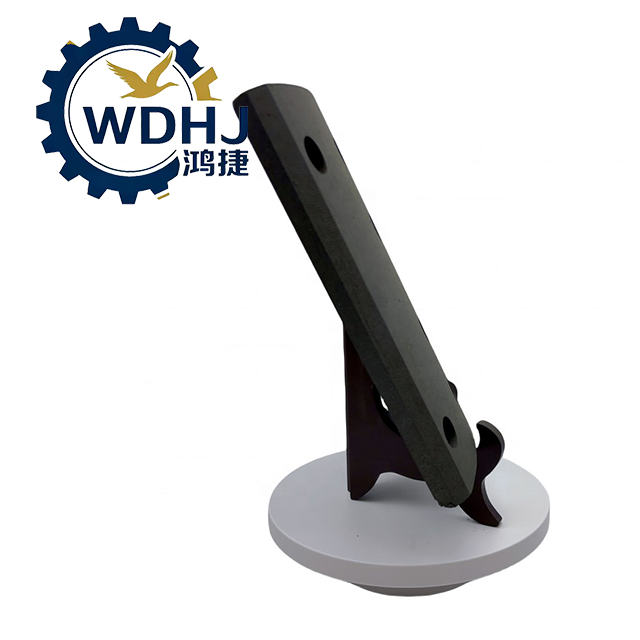

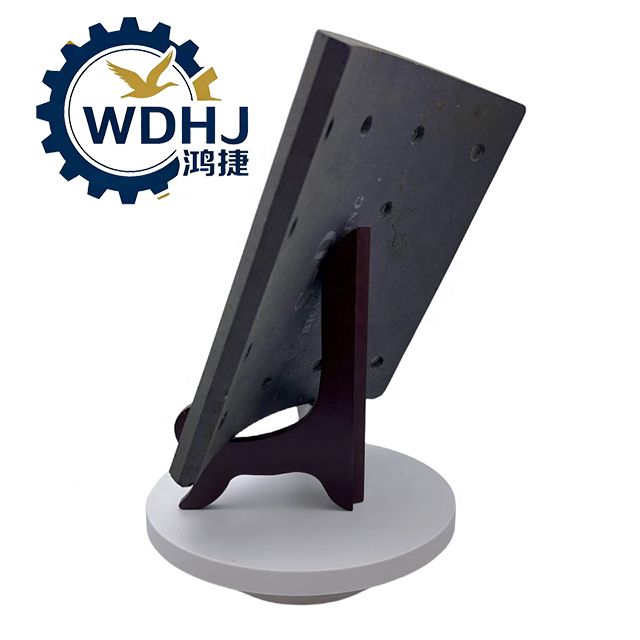

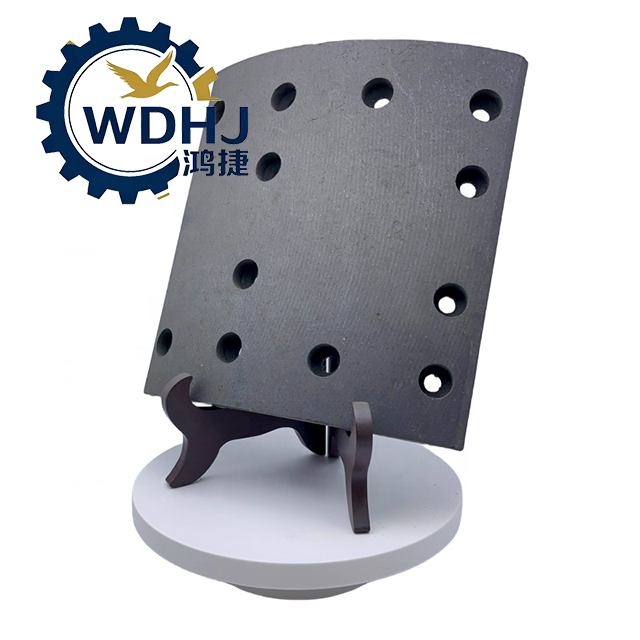

| Product Name | Rear Brake Lining / Friction Plate (Single Piece) |
| Common Names | Brake Shoe Liner, Drum Brake Pad, Friction Block |
| Function | Generates friction force between brake shoe and drum to decelerate the vehicle |
| Position | Riveted onto rear axle brake shoe assembly |
| Design Type | Arc-shaped friction pad with multiple rivet holes |
| Application Type | Heavy-Duty Trucks, Tractors, Dumpers, Trailers |
| Parameter | Specification |
|---|---|
| OEM Part Number | 3502407-4E |
| Alternative Numbers | |
| • 3502407-4E-A (improved version or alternate supplier) | |
| • 3502407-A0E / 3502407-A6E (variant for different sub-models) | |
| • 3502408-4E (companion plate for paired installation) | |
| Arc Length | ~192 mm – 200 mm |
| Width | 200 mm or 220 mm (matches brake shoe width) |
| Thickness | 14.5 mm – 16.5 mm (upgraded versions: 18 mm for worn drums) |
| Number of Holes | 10 or 12 holes (for M8 rivets) |
| Material Composition | Asbestos-free semi-metallic or advanced fiberglass composite |
| Friction Coefficient (μ) | 0.38 – 0.42 (stable under high temperature, minimal fade) |
| Operating Temperature Range | Up to 350°C – 400°C (resists thermal degradation) |
| Compliance Standards | Meets GB12676, QC/T 239, and ECE R90 safety regulations |
| Expected Service Life | 80,000 – 120,000 km under normal highway logistics conditions |
