H0292140003A0 FRONT TRAIN U-BOLT Use for SINOTRUK HOWO HOHAN FAW SHACMAN DONGFENG BEIBEN FOTON Spare Parts Front Leaf Spring U-bolt

H0292140003A0 FRONT TRAIN U-BOLT Use for SINOTRUK HOWO HOHAN FAW SHACMAN DONGFENG BEIBEN FOTON Spare Parts Front Leaf Spring U-bolt

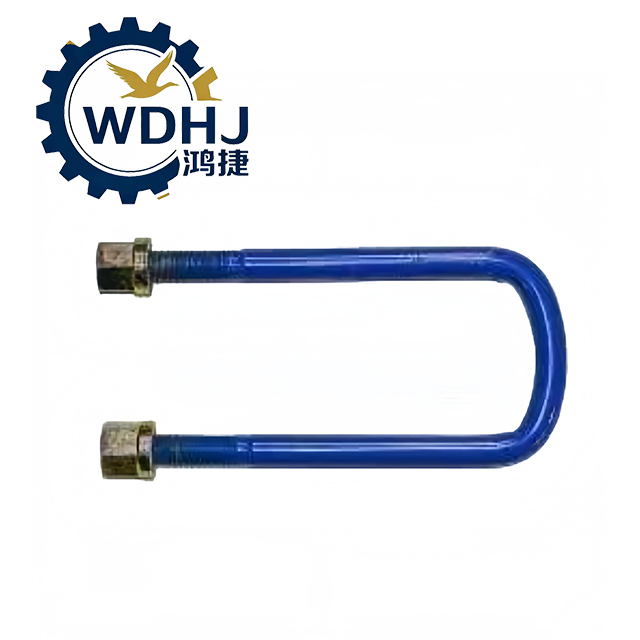

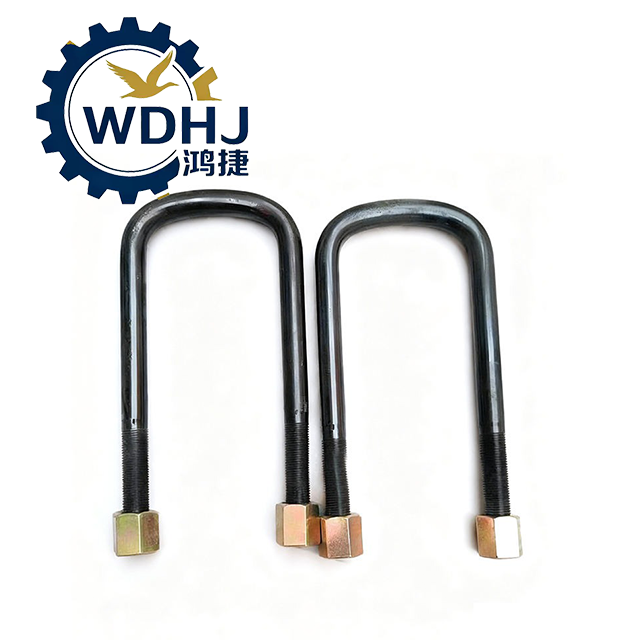

The H0292140003A0 Front Leaf Spring U-Bolt is a critical chassis fastener specifically designed for Foton Auman heavy-duty trucks. Commonly referred to as a Front U-Bolt, Ride U-Bolt, or Front Axle Clamp Bolt, this component plays a vital role in securing the front leaf spring pack firmly to the front axle beam, ensuring stable suspension performance under extreme load and harsh operating conditions.

Originally engineered as an OEM part for Foton Auman GTL, EST, ETX, and other series, this U-bolt has demonstrated high compatibility across major Chinese heavy truck platforms due to standardized front axle dimensions. It is widely used in 6x4, 8x4, 4x2 configurations of freight carriers, dump trucks, and tractor units.

Built with premium materials and precision manufacturing, the H0292140003A0 ensures reliable clamping force, excellent fatigue resistance, and long service life—making it a top choice for both original equipment and aftermarket replacements.

Quantity:
Availability:





Inquire Add to Basket

Model:
H0292140003A0
Brand:
FAW

Product Description

Attribute	Description
Product Name	Front Leaf Spring U-Bolt (with Nuts)
Common Names	U-Bolt, Ride Bolt, U-Clamp, Front Axle U-Bolt, Spring U-Bolt
Application Position	Front Suspension – Leaf Spring to Axle Mounting
Function	Securely fastens leaf spring assembly to front axle housing
Design Type	One-piece U-shaped bolt with dual threaded ends and flat mounting surface
Intended Use	Heavy-Duty Commercial Vehicles, Long-Haul Trucks, Dump Trucks, Tractors

Parameter	Specification
Part Number (OEM)	H0292140003A0
Alternative Part Numbers	H0292140003A1 (improved version), H0292140002A0 (shorter variant)
Length (L)	Approximately 220 mm (standard for Foton Auman models)
Diameter	M24 or M27 fine thread (common: M24×2.0 or M27×2.0)
Inner Width (Span)	90 mm or 100 mm (matches standard leaf spring width)
Material	40Cr alloy steel (quenched and tempered)
Strength Grade	10.9 or higher (high tensile strength)
Surface Treatment	Phosphated (blackening), Zinc Plated, or Dacromet Coating (for enhanced corrosion resistance)
Included Components	U-bolt + 2 Hex Nuts (typically H0292140004A0 type) + Flat Washers (optional)
Torque Specification	550–650 N·m (M24); confirm exact value per Foton 2025 Service Manual
Performance Features	High anti-fatigue strength, vibration-resistant threads, precise dimensional tolerance
