| Quantity: | |
|---|---|
WG9114610061
FAW
| Attribute | Description |
|---|---|
| Part Number | WG9114610061 |

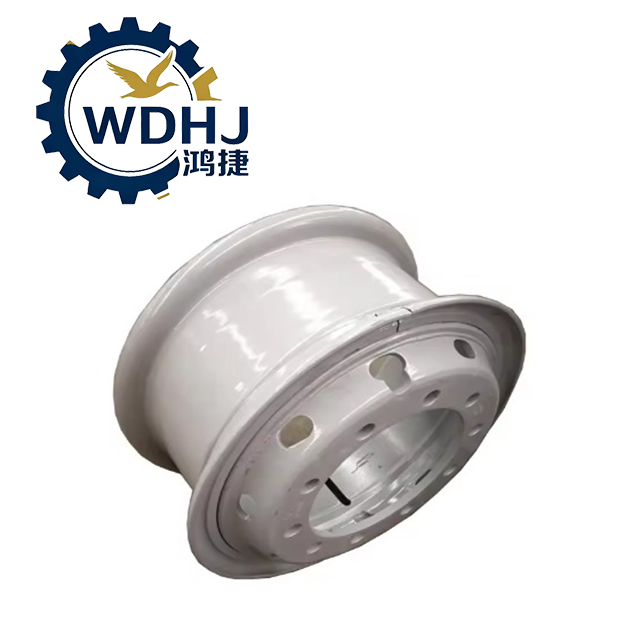

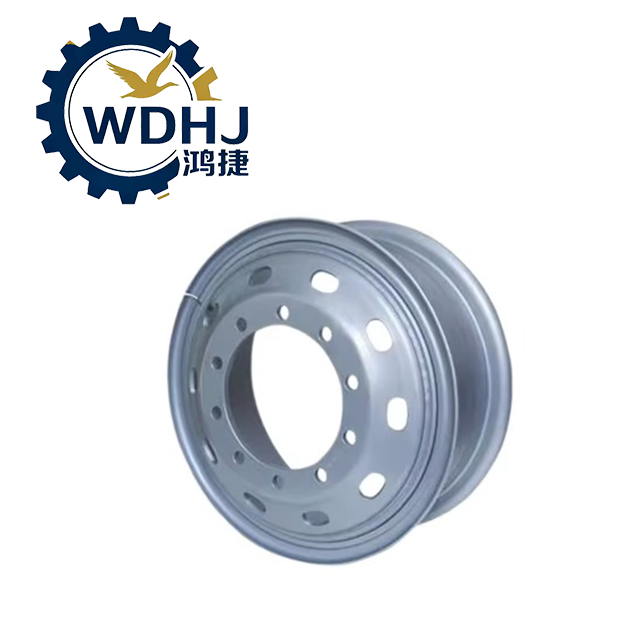

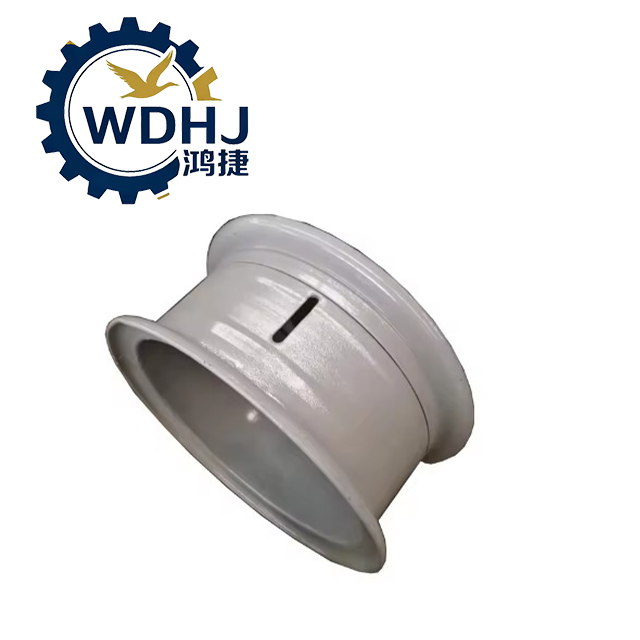

| Product Name | 8.5-24 Tube-Type Steel Wheel Rim Assembly |
| Type | Demountable Flange Type – With Inner Tube (Tube Wheel) |
| Application | Front/Axle Wheel for Heavy-Duty Trucks & Construction Vehicles |
| Design Standard | Meets Sinotruk OEM specifications; compliant with GB/T standards |
| Material | High-Strength Automotive Grade Carbon Steel (OEM Spec) |
| Finish | Silver Paint Coating (anti-corrosion treatment) |
| Structure | Includes Rim Body, Lock Ring, Retaining Ring (Split Ring), Bead Seat |
| Mounting System | Bolt-on design with multi-hole lug pattern |
| Parameter | Specification |
|---|---|
| Rim Size | 8.5J × 24" (Width × Diameter in inches) |
| Bead Seat Diameter | 24 inches (fits 24-inch tires) |
| Width | 8.5 inches (approx. 216 mm) |
| Type | Tube-Type (requires inner tube for inflation) |
| Lug Hole Pattern | Typically 10-Hole (10-lug), PCD varies by model — verify center bore and pitch circle diameter (PCD) before installation |
| Weight (Approx.) | ~32–36 kg per unit |
| Load Capacity | Engineered for GVW-rated axle loads (up to 18 tons per axle when paired with proper tires) |
| Compatible Tires | 12.00–24, 11.00–24, or equivalent bias-ply / radial tires with inner tubes |
| Operating Pressure | Up to 80 psi (5.5 bar), depending on tire rating |
| Surface Treatment | Electrostatic spray painting + rust-resistant primer |
