Hot-selling Item Truck Parts Left Door Electric Window Lift Assembly H4610140011A0

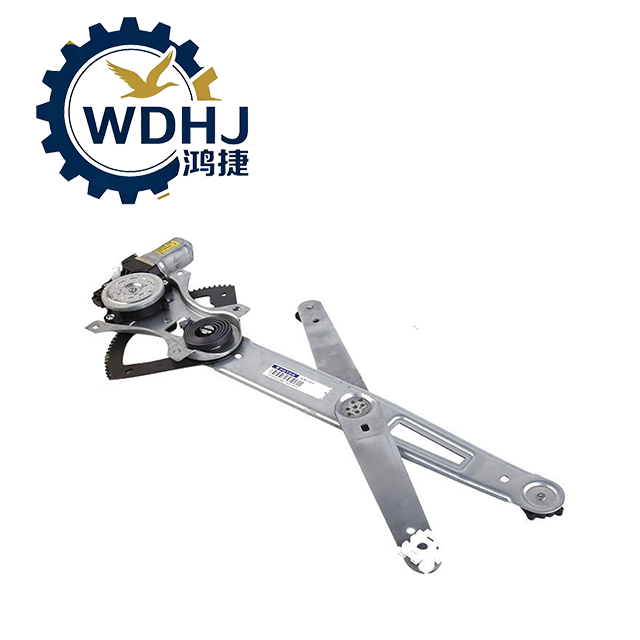

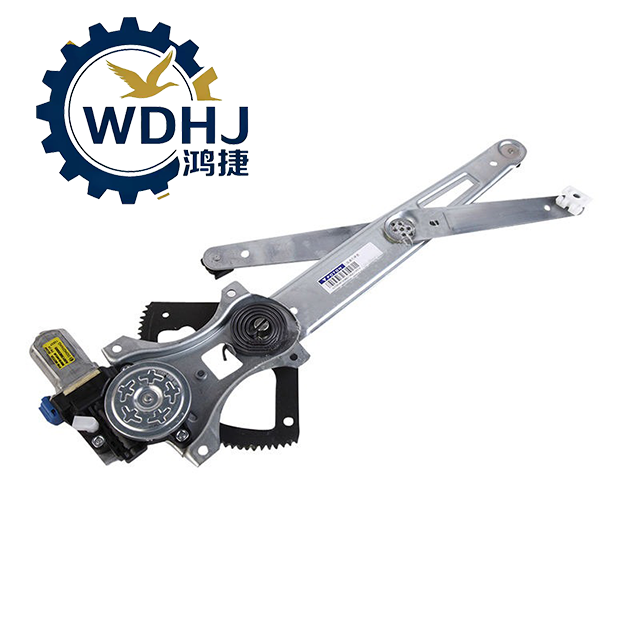

The Electric Window Regulator Assembly (Part No. H4610140011A0) is an OEM-specified power window lift mechanism designed specifically for use in Foton Auman GTL, EST (H5), and ETX series heavy-duty trucks. As a core component of the driver’s door system, this electric window regulator enables smooth, reliable vertical movement of the front left (driver-side) glass panel via a motor-driven cable-and-track system.

Engineered for durability under harsh operating conditions—including extreme temperatures, road vibration, dust exposure, and frequent usage—this unit features a high-torque permanent magnet DC motor, dual-guide rail structure, and galvanized steel bracket to ensure long-term performance and resistance to deformation. It supports both manual and one-touch up/down operation depending on vehicle configuration.

Quantity:
Availability:





Inquire Add to Basket

Model:
H4610140011A0
Brand:
Dongfeng

Product Description

Attribute	Specification
Product Name	Electric Window Regulator Assembly (with Motor)
Manufacturer	Foton Auman OEM; commonly produced by Tier 1 suppliers such as Jiangsu Chaoli or Bosch-affiliated factories
Primary Part Number	H4610140011A0
Alternative Names	Power Window Lift, Window Mechanism, Door Glass Actuator
Installation Position	Front Left Door (Driver Side / LHD Configuration)
Operating Voltage	24V DC (standard for Chinese heavy-duty trucks)
Drive Type	Cable-pulley with single/dual guide rail system
Motor Type	Permanent Magnet DC Motor with Overload Protection
Frame Material	Galvanized high-strength stamped steel (anti-corrosion & anti-warping)
Sliding Components	Wear-resistant engineering plastic rollers and guides
Connector Type	2-pin or 6-pin electrical plug (latter supports one-touch function)
Application Class	Heavy-Duty Commercial Trucks – Cab Interior Systems

Parameter	Value / Detail
Dimensions (Approx.)	600 × 200 × 50 mm (23.6 × 7.9 × 2.0 in)
Operating Voltage	24V DC nominal
Motor Output Torque	High-torque design for reliable lifting under load
Overload Protection	Built-in thermal cut-off or electronic protection to prevent coil burnout
Lift Mechanism	Wire rope drum + dual-track guided carriage
Noise Level	< 50 dB(A) during normal operation
Temperature Range	-40°C to +80°C (-40°F to +176°F)
Durability Life	Tested for over 30,000 cycles (equivalent to ~8–10 years of daily use)
Weight	~2.5 – 3.2 kg (5.5 – 7.1 lbs)
Compliance Standards	Meets Foton Q/FT A03-2025 and GB/T 17672 automotive electrical safety standards
