| Quantity: | |
|---|---|
DZ95319470085
Shacman
| Attribute | Description |
|---|---|
| Part Number | DZ95319470085 |

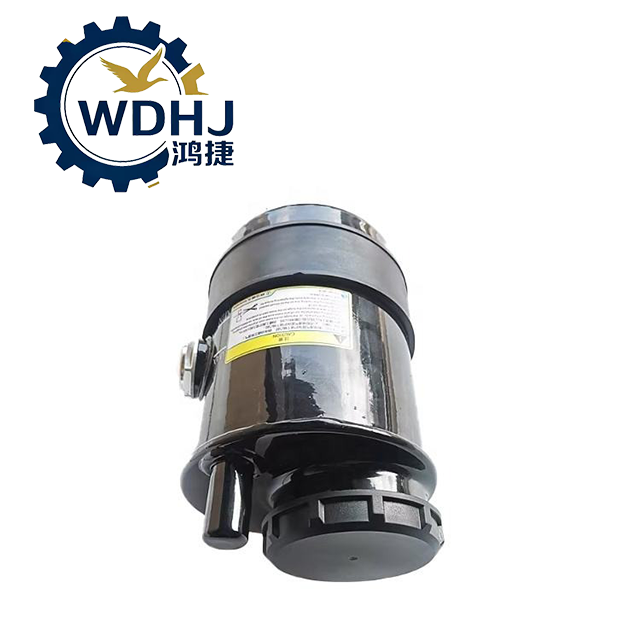

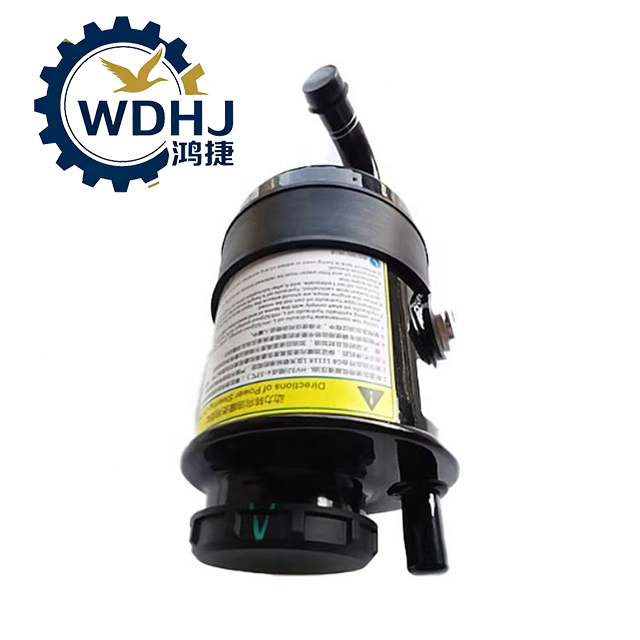

| Product Name | Power Steering Oil Reservoir Assembly (with Cap & Internal Filter) |
| OEM Status | Genuine SHACMAN Original Equipment Part |
| Application | Hydraulic Power Steering System |
| Vehicle Platform | SHACMAN Delong X3000 Series (Tractors, Dump Trucks, Cargo Vehicles) |
| Also Fits | Some M3000, F3000 Refresh Models, and Special Chassis |
| Mounting Location | Under cab frame rail or side wing near front axle / engine compartment |
| Main Function | Store, filter, and degas hydraulic fluid; provide stable oil supply to pump |
| Parameter | Specification |
|---|---|
| Tank Body Material | Modified Engineering Plastic (PA66 or Semi-Transparent Polypropylene - PP) |
| Heat Resistance | Withstands continuous operating temperatures up to +120°C |
| Oil Compatibility | Compatible with 8# Hydraulic Oil, ATF (DEXRON III/MERCON), and similar fluids |
| Capacity | Typically 1.8 – 2.5 liters (exact volume varies by model) |

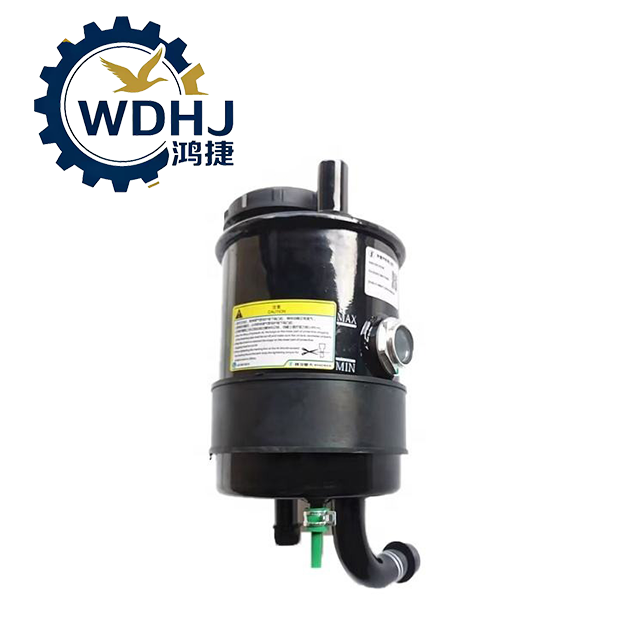

| Level Indicator | Clear side window with molded MIN / MAX刻度 lines (visible without opening) |
| Cap Design | Rotary compression seal with built-in pressure-relief breather valve |
| Sealing Gasket | Nitrile rubber (NBR) O-ring, resistant to oil swelling and aging |
| Inlet/Outlet Ports | Dual tube connections: one larger suction line, one smaller return line |
| Connection Type | Push-fit or hose barb ports; secured with clamp bands (typically Ø10–16 mm) |
| Internal Components | High-precision paper or stainless mesh filter cartridge (replaceable) |
| Filtration Rating | 10–25 μm particle retention efficiency |
| Anti-Foam Design | Baffled internal flow path reduces turbulence and promotes air bubble settling |
| Weight (Empty) | Approx. 0.8 – 1.2 kg |
