HD90149520027
Shacman
| Attribute | Description |
|---|---|

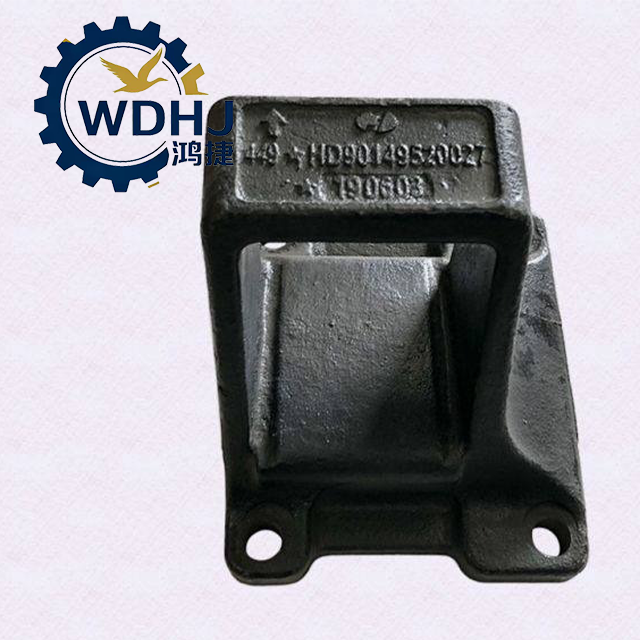

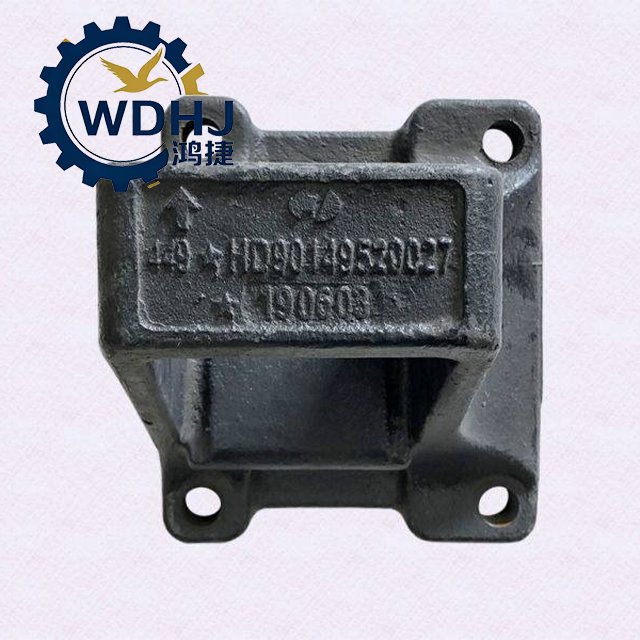

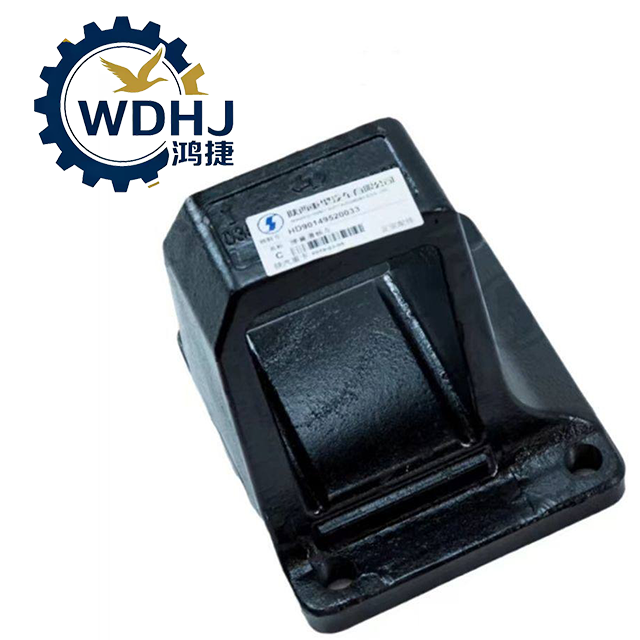

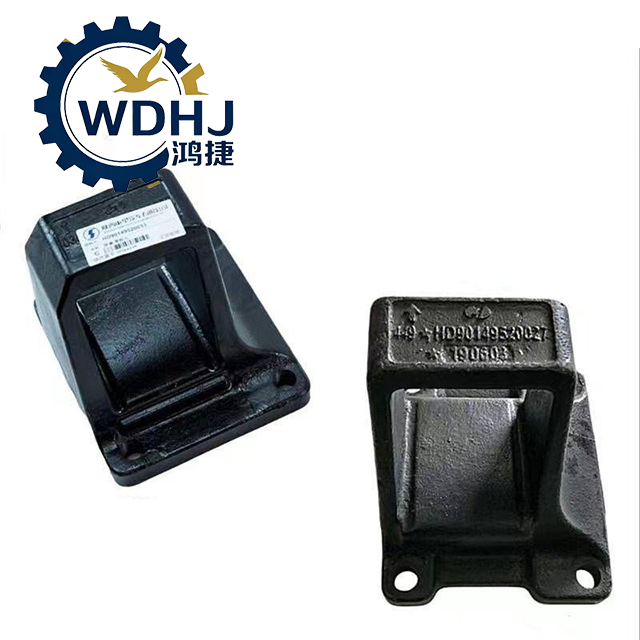

| Part Name | Rear Leaf Spring Bracket |
| OEM Part Number | HD90149520027 |
| Manufacturer | HanDe (Hande Axle) / SHACMAN Joint Standard Component |
| Brand Compatibility | SHACMAN Daimler Series Trucks |
| Application | Rear Suspension – Frame-to-Spring Mounting (Axle Load Transfer) |
| Position | Mounted on Both Sides of Chassis Frame (Used in Pairs) |
| Material | High-Strength Ductile Cast Iron (QT400-600) or Cast Steel |
| Weight | Approx. 11.5 kg |
| Processing Method | Precision Casting + Machined Mounting Surfaces |
| Surface Treatment | Black Anti-Corrosion Primer Coating |
| Function | Anchors rear leaf spring to frame; transfers vertical and lateral loads to chassis |
| Parameter | Value / Specification |
|---|---|
| Part Number | HD90149520027 |
| Material Type | QT-Series Ductile Iron or Equivalent Cast Steel |
| Tensile Strength | ≥ 400 MPa |
| Elongation at Break | ≥ 6% (ensures crack resistance under dynamic stress) |
| Impact Toughness | High (suitable for low-temperature environments) |
| Bolt Hole Diameter | φ18 mm or φ20 mm (for high-strength mounting bolts) |
| Center Distance (Pitch) | Matches SHACMAN frame rail standard spacing (precision-machined) |
| Mounting Configuration | Multi-Bolt Fixation (typically 4–6 holes per bracket) |
| Corrosion Resistance | Salt Spray Resistant (>500 hrs tested); ideal for wet/dusty areas |
| Operating Environment | -40°C to +85°C; resistant to dust, mud, oil, and vibration |
| Compliance Standards | Meets SHACMAN & HanDe joint quality and safety specifications |
| OEM Part Number | Full Part Name | Applicable SHACMAN Truck Models | Specification & Technical Feature |
|---|---|---|---|
| SZ970000024 | Front Leaf Spring Middle Support Bracket (Right) | Delong F2000 / F3000 8×4 Cargo Truck | Cast steel integrated casting, 14kg weight, standard front suspension matching |
| SZ970000021 | Front Leaf Spring Front Support Bracket | Delong X3000 / F3000 Tractor Truck | Universal front spring fixing base, black anti-rust coating |
| DZ96259690613 | Front Leaf Spring Rear Support Bracket (Left) | Delong X3000 National VI Tractor | Multi-hole reinforced bracket, matched with 7.5T front axle |
| DZ96259690614 | Front Leaf Spring Rear Support Bracket (Right) | Delong X3000 National VI Tractor | Heavy-duty reinforced design, highway transport exclusive |
| DZ95319690700 | Front Leaf Spring Intermediate Bracket (Left) | New M3000 / M3000S Dump Truck | Mining vehicle thickened cast iron, wear-resistant structure |
| DZ95319690701 | Front Leaf Spring Intermediate Bracket (Right) | New M3000 / M3000S Dump Truck | Integrated bushing mounting hole, load capacity upgrade |
| DZ9114520221 | Rear Leaf Spring Front Support Bracket (Right) | F3000 / X3000 / X6000 Heavy Truck | 16-ton rear axle general, dual-layer leaf spring matching |
| DZ9114520222 | Rear Leaf Spring Front Support Bracket (Left) | F3000 / X3000 / X6000 Heavy Truck | Standard rear suspension fixing seat, interchangeable OEM |
| DZ9114520223 | Rear Leaf Spring Rear Support Bracket (Left) | X5000 / X6000 New Generation National VI Truck | With lubricating oil hole, long service life |
| HD90149520027 | Hande Rear Spring Front Support Bracket (Left & Right Set) | All Delong series with Hande axle | Original Hande axle matching, high tensile cast steel |
| DZ9114524036 | Rear Leaf Spring Saddle Support Bracket (Spring Seat) | F2000 / F3000 / Aolong Cargo Truck | U-bolt integrated mounting base, rear leaf spring fixing support |
| DZ95189520405 | Auxiliary Leaf Spring Front Support Bracket | New M3000 / L3000 Light Tractor | Light-load auxiliary suspension special bracket |
