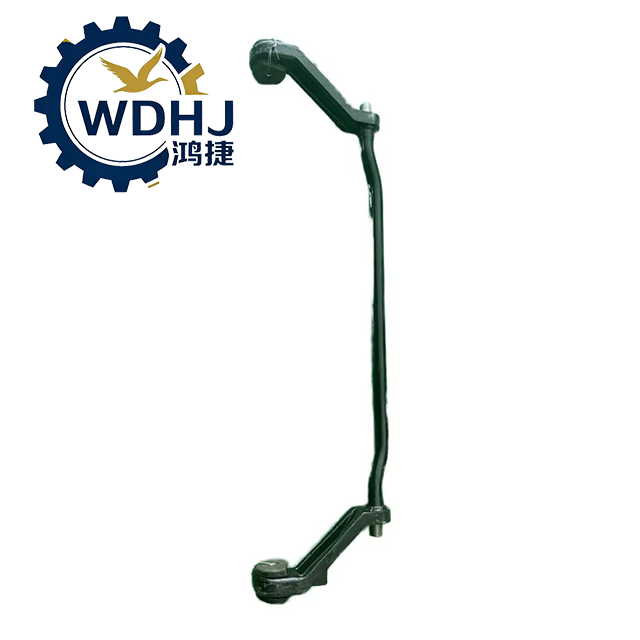

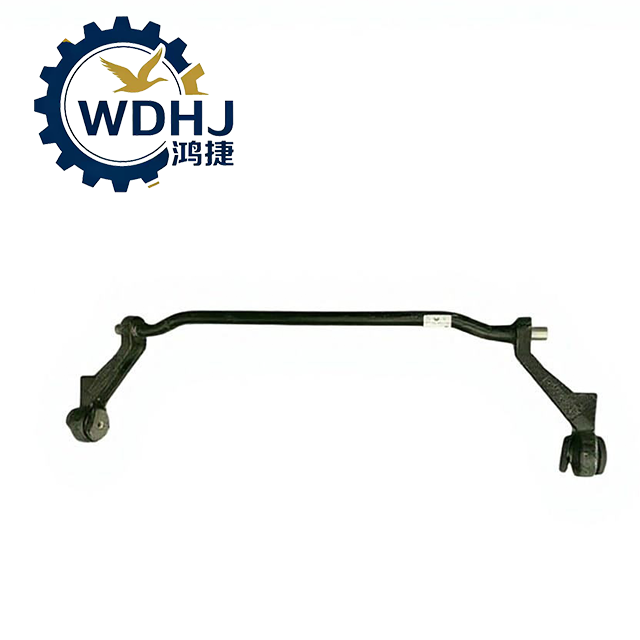

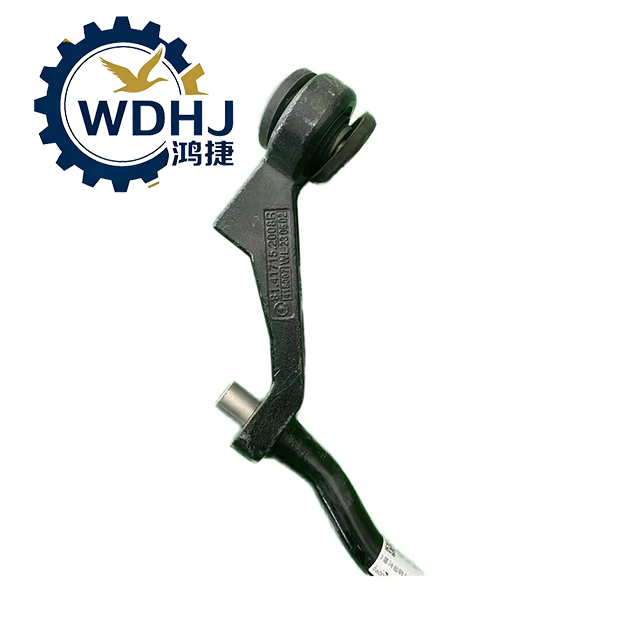

High Quality DZ13241430090 Iron Stabilizer Rod Assy Turnover Shaft Direct Mount Safety Assembly Black Shacman M3000S Body Parts

High Quality DZ13241430090 Iron Stabilizer Rod Assy Turnover Shaft Direct Mount Safety Assembly Black Shacman M3000S Body Parts

The DZ13241430090 Cab Front Tilting Shaft Assembly is a critical component in the cab suspension system of SHACMAN (Shaanxi Automobile) Daimon series heavy-duty trucks. Serving as the pivotal hinge point between the cab and chassis, this assembly enables smooth forward tilting of the cab for engine maintenance and inspection. Designed for high strength and durability, it ensures reliable performance under extreme loads and dynamic conditions such as braking and road vibration.

Precision-engineered from high-grade alloy steel and treated with advanced surface processes, this shaft provides excellent wear resistance, anti-corrosion protection, and long service life. It plays a vital role in maintaining cab stability, reducing NVH (Noise, Vibration, Harshness), and ensuring operational safety.

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ13241430090
Brand:
Shacman

Product Description

Attribute	Description
Part Name	Cab Front Tilting Shaft Assembly
OEM Part Number	DZ13241430090
Brand	SHACMAN / Shaanxi Automobile
Application	Heavy-Duty Trucks – Daimon F3000, X3000, M3000/M3000S, X5000 Series
Function	Primary pivot shaft for cab forward tilting; supports front cab load
Material	40Cr or equivalent high-strength alloy steel
Surface Treatment	High-frequency quenching on journal areas; zinc plating or painting on non-friction surfaces
Weight	Approx. 3.5 – 4.5 kg
Installation Position	Mounted on front cross-member of chassis frame, beneath the front of the cab

Parameter	Specification
Core Component	Central steel shaft, end flanges, dust sealing structure
Heat Treatment	Quenched and tempered for enhanced toughness and shear strength
Shaft Surface Hardness	≥ HRC 50 (after high-frequency quenching)
Load Capacity	Supports static cab weight; resists inertial forces during heavy braking
Tilting Angle Compatibility	Compatible with 45° and 60° cab tilt positions
Operating Smoothness	Works with bushings (e.g., DZ13241430085) to ensure no binding or jamming
NVH Contribution	Minimizes vibration transfer into cab by maintaining precise rotational clearance
Environmental Resistance	Sealed design protects against dust, water, and road splash

Part Number (OEM NO.)	Part Name	Compatible Shacman Models	Specification
DZ9114510042	Cab Tilt Shaft Assembly	Shacman Delong X3000, M3000, F3000 series	Material: High-strength alloy steel; Surface treatment: Zinc plating; Shaft diameter: 50mm; Length: 1200mm; Compatible with 6x4/4x2 heavy duty trucks; OEM standard fitment
DZ9114510043	Cab Tilt Shaft Assembly (Reinforced Type)	Shacman Delong X3000, X5000 series (heavy load version)	Material: 40Cr alloy steel; Quenched and tempered; Shaft diameter: 55mm; Length: 1250mm; Corrosion resistance: 500-hour salt spray test; For heavy-duty mining and transportation conditions
DZ9114510044	Cab Tilt Shaft Assembly (Standard Type)	Shacman Delong M3000, F3000 series	Material: Q355B steel; Surface treatment: Black oxide; Shaft diameter: 45mm; Length: 1150mm; Weight: 28kg; Compatible with standard cab tilt system
HD90009410012	Cab Tilt Shaft Assembly	Shacman Aolong, Xuande series	Material: High-carbon steel; Shaft diameter: 48mm; Length: 1180mm; Surface hardness: HRC 28-32; Compatible with manual and hydraulic cab tilt systems
DZ9114510045	Cab Tilt Shaft Assembly (Hydraulic Type)	Shacman Delong X3000, X5000 series (hydraulic tilt cab)	Material: 45# steel; Precision machining; Shaft diameter: 52mm; Length: 1220mm; Compatible with hydraulic cylinder tilt system; Oil seal groove design for enhanced durability
DZ9114510046	Cab Tilt Shaft Assembly (Manual Type)	Shacman Delong F3000, M3000 series (manual tilt cab)	Material: Q235B steel; Shaft diameter: 42mm; Length: 1100mm; Weight: 22kg; Compatible with manual lock tilt system; Easy installation and maintenance
HD90009410013	Cab Tilt Shaft Assembly (Extended Type)	Shacman 8x4 heavy duty trucks, Delong X3000 8x4 series	Material: High-strength alloy steel; Shaft diameter: 55mm; Length: 1350mm; Reinforced both ends; Suitable for 8x4 multi-axle heavy duty vehicles; OEM standard size
DZ9114510047	Cab Tilt Shaft Assembly (Corrosion Resistant Type)	Shacman coastal operation heavy duty trucks, Delong M3000 series	Material: 304 stainless steel; Shaft diameter: 48mm; Length: 1180mm; Surface treatment: Mirror polishing; Corrosion resistance: 1000-hour salt spray test; For high humidity and salt fog environments
DZ9114510048	Cab Tilt Shaft Assembly (Low Noise Type)	Shacman Delong X5000, X6000 series	Material: Wear-resistant alloy steel; Shaft diameter: 50mm; Length: 1200mm; Surface roughness: Ra ≤ 1.6; With self-lubricating bushings; Reduces vibration and noise during cab tilting
HD90009410014	Cab Tilt Shaft Assembly (Heavy Duty Type)	Shacman mining dump trucks, Delong F3000 mining series	Material: 42CrMo alloy steel; Ultra-high strength; Shaft diameter: 60mm; Length: 1280mm; Impact resistance: 200J; For harsh mining and construction site conditions
