81.43722.6055
Shacman
| Attribute | Description |
|---|---|

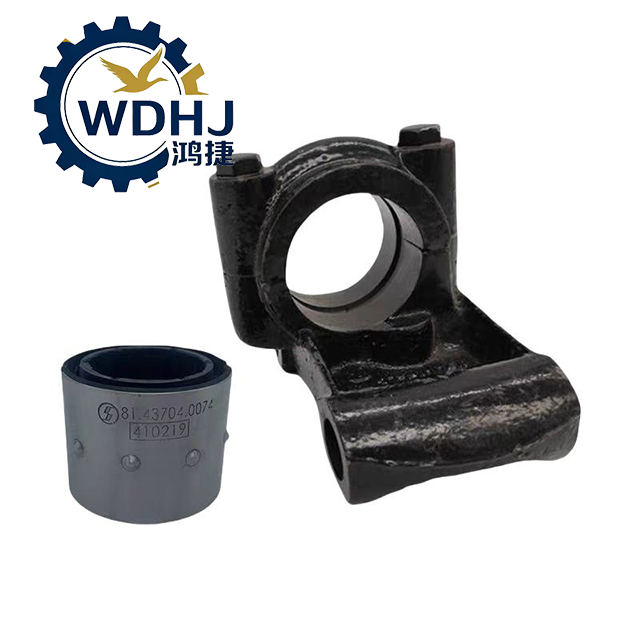

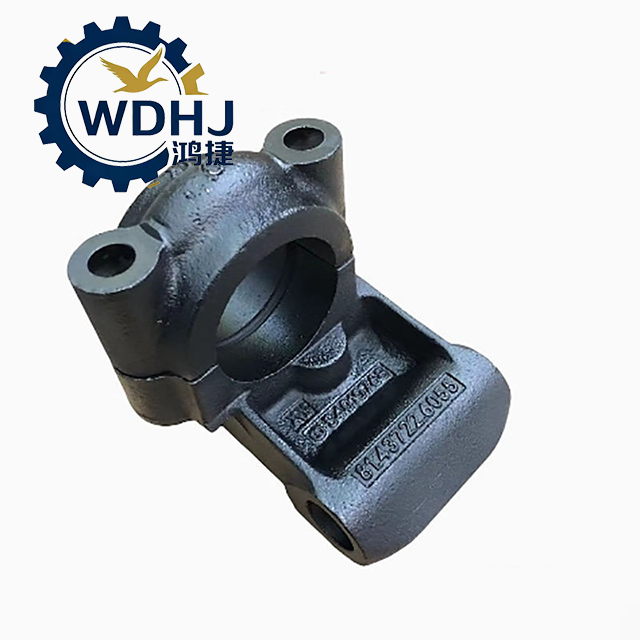

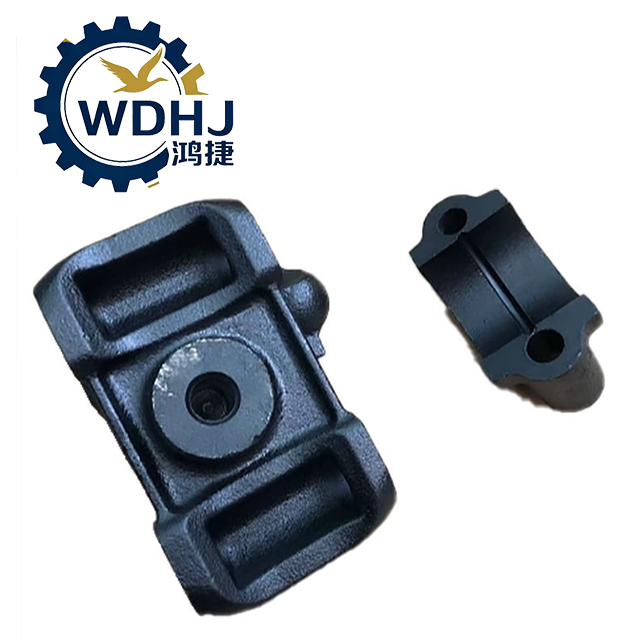

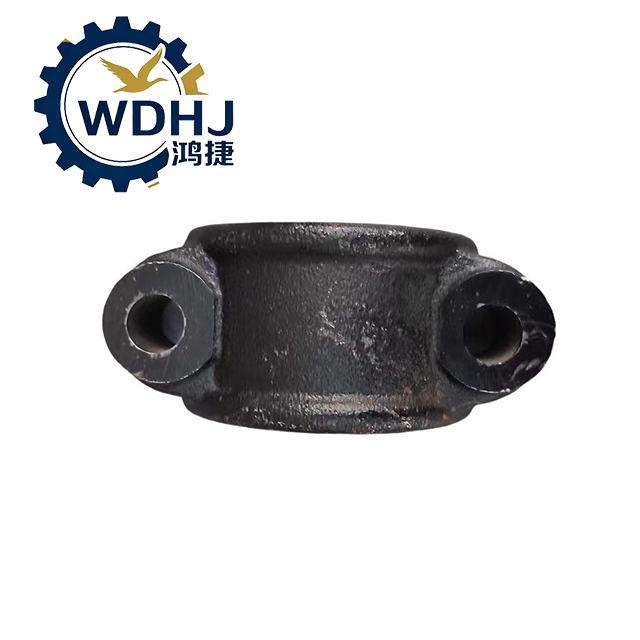

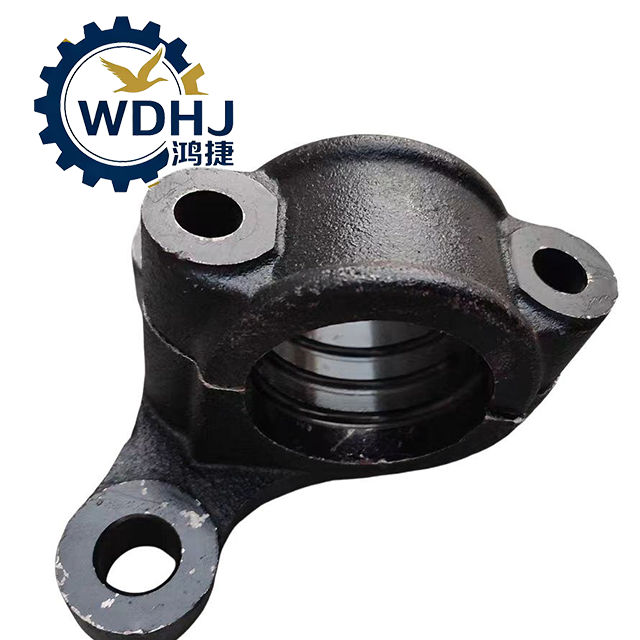

| Part Name | Cab Tilting Bearing Bracket (Left Side) / Stabilizer Bar Mount |
| Part Number (OEM) | 81.43722.6055 |
| Paired Part Number | 81.43722.6054 (Right Side) |
| Application Position | Front Cab Assembly – Left Pivot Point |
| Vehicle Compatibility | Shacman F3000, X3000, M3000; MAN F2000, TGA & related platform variants |
| Function | Supports cab weight, provides pivot point for tilting mechanism, enhances lateral stability |
| Material Type | High-strength cast iron or forged steel (high fatigue resistance) |
| Surface Treatment | Electrophoretic anti-corrosion coating |
| Design Feature | Precision-machined bore for tight bushing fit; integrated mounting flange |
| Brand Origin | German MAN Technology / Chinese Production (Shacman Licensed) |
| Parameter | Specification |
|---|---|
| Material Grade | High-tensile cast iron or alloy forged steel |
| Weight | 2.5 kg – 5.0 kg (depending on casting process) |
| Bore Diameter (Inner Hole) | Typically Ø30mm – Ø35mm (precision tolerance ±0.02mm) |
| Mounting Holes | 3–4 bolt holes (M12 or M14), pattern specific to MAN/Shacman front frame rail |
| Load Capacity | Designed to support ≥1,200 kg dynamic load (with safety factor) |
| Fatigue Life | >100,000 tilting cycles under standard conditions |
| Corrosion Resistance | E-coated surface; withstands salt spray test ≥500 hours |
| Operating Temperature Range | -40°C to +90°C |
| Installation Torque (Reference) | 80–100 Nm (for mounting bolts, check vehicle manual) |
