| Quantity: | |
|---|---|
DZ9100410121
Shacman
| Attribute | Description |
|---|---|

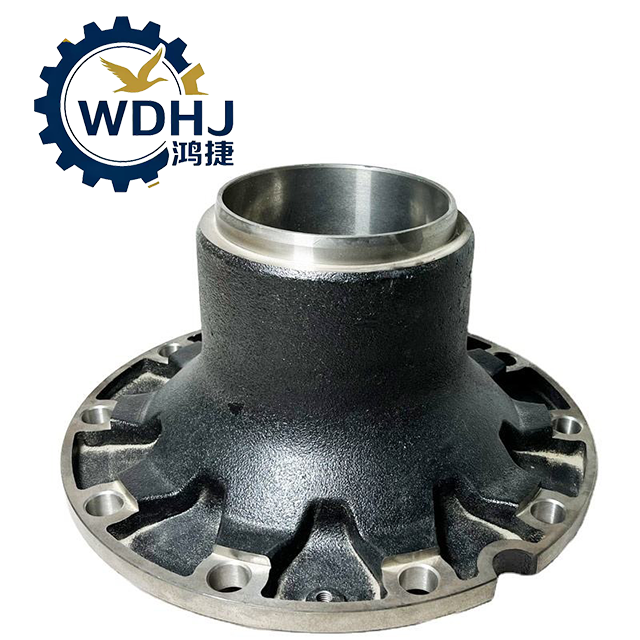

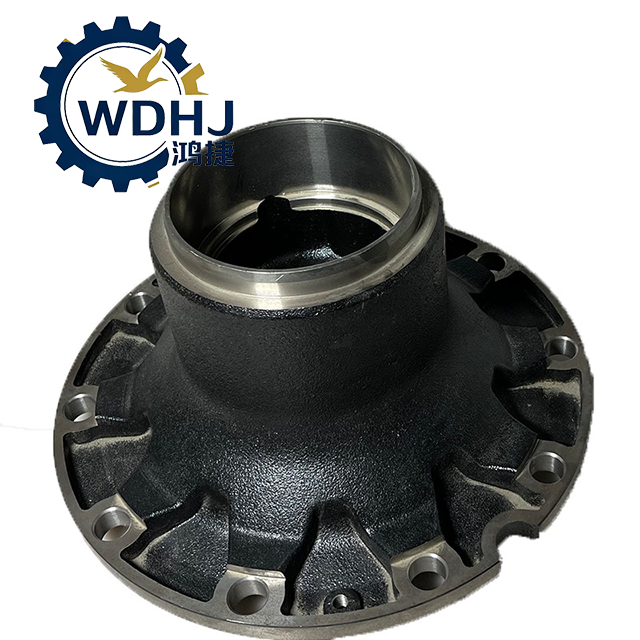

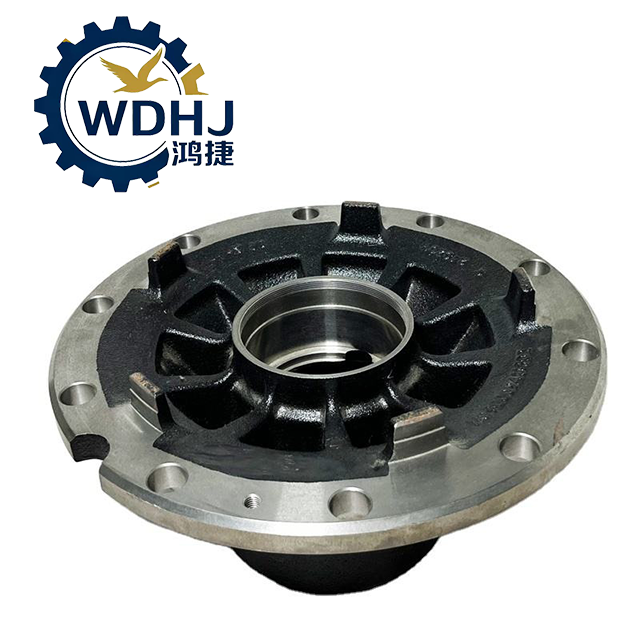

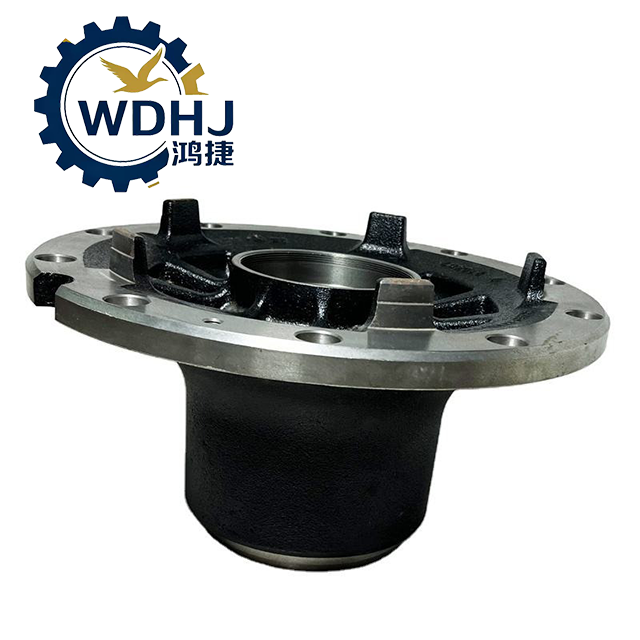

| Part Name | Front Wheel Hub |
| OEM Part Number | DZ9100410121 |
| Brand | SHACMAN / Shaanxi Automobile |
| Application | Heavy-Duty Trucks – Daimon X3000, F3000, M3000/M3000S, F2000 Series |
| Axle Compatibility | Hande (HanDe) 7.5 Ton & 9.5 Ton Class Front Axle (MAN Technology Based) |
| Function | Rotational center for front wheels; connects wheel, brake, and spindle |
| Material | High-Strength Alloy Cast Steel or Ductile Iron (Nodular Cast Iron) |
| Weight | Approx. 28.5 – 32.0 kg (varies depending on bearing seat inclusion) |
| Surface Finish | Precision-machined sealing surfaces; overall anti-rust paint (silver-gray or black) |
| Mounting Position | Front Axle, mounted on spindle via inner and outer bearings |
| Parameter | Specification |
|---|---|
| Bolt Pattern | 10-Hole (Standard ISO configuration for commercial vehicle wheels) |
| Center Bore Diameter | Matched to Hande 7.5T / 9.5T front axle spindle |
| Hub Bore Type | Tapered bore with dual-row tapered roller bearings |
| Dynamic Balance | High-precision casting and machining ensure minimal vibration at high speeds |
| Thermal Performance | Optimized rib design enhances heat dissipation during braking |
| Load Capacity | Designed for heavy-duty use; withstands high vertical loads and lateral cornering forces |
| Sealing Interface | Compatible with lip-type oil seal (e.g., DZ9100410037) |
| Environmental Durability | Resistant to road splash, dust, mud, and temperature fluctuations |
