SZ970000026
Shacman
| Attribute | Description |
|---|---|

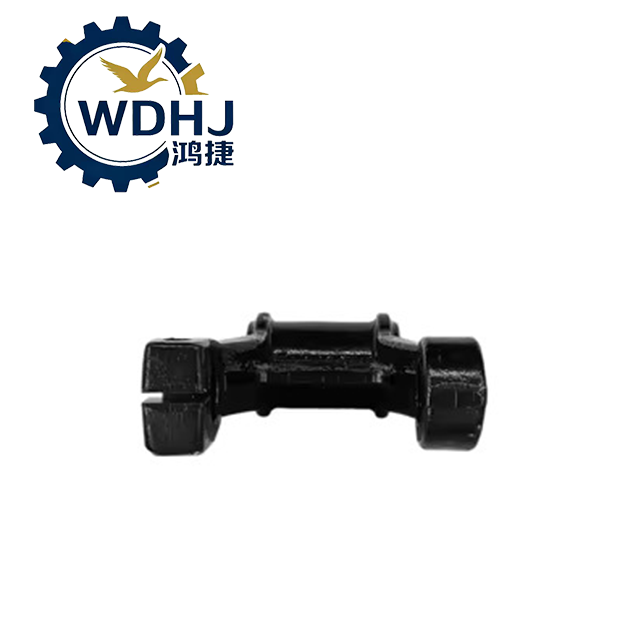

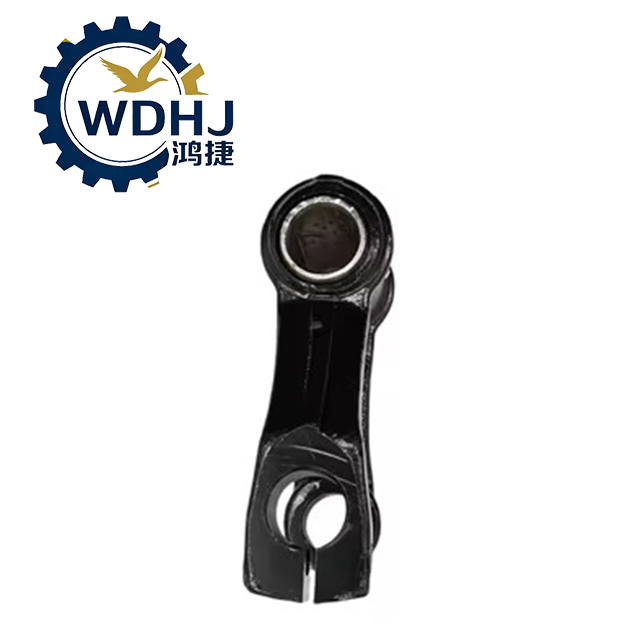

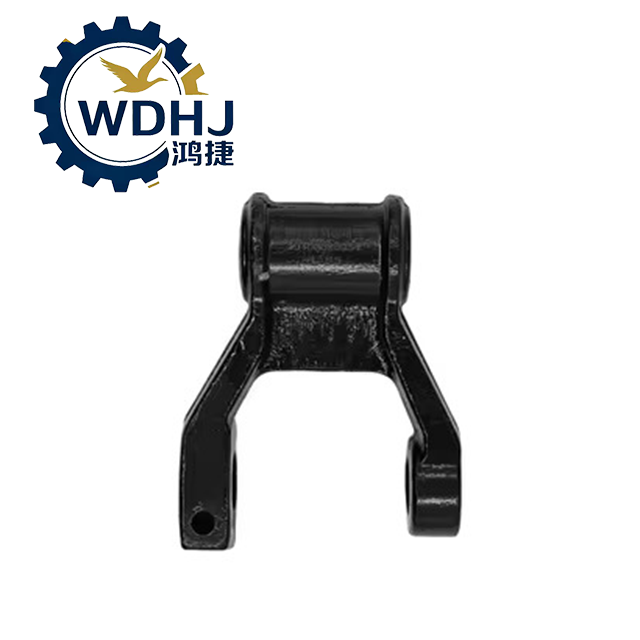

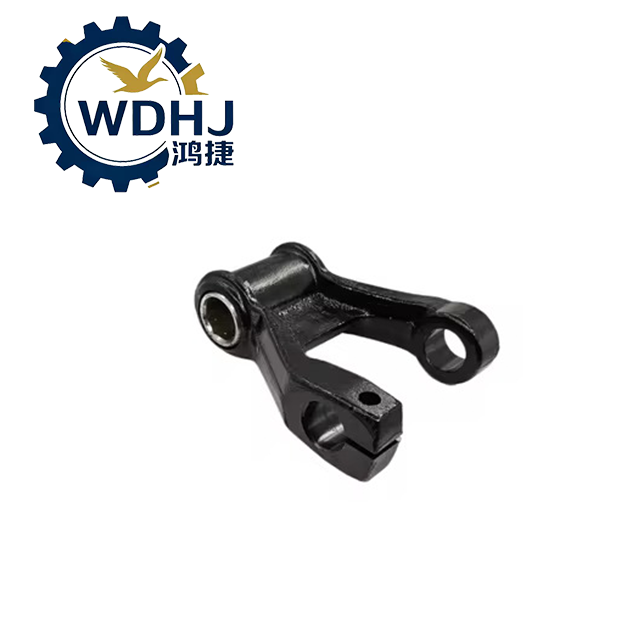

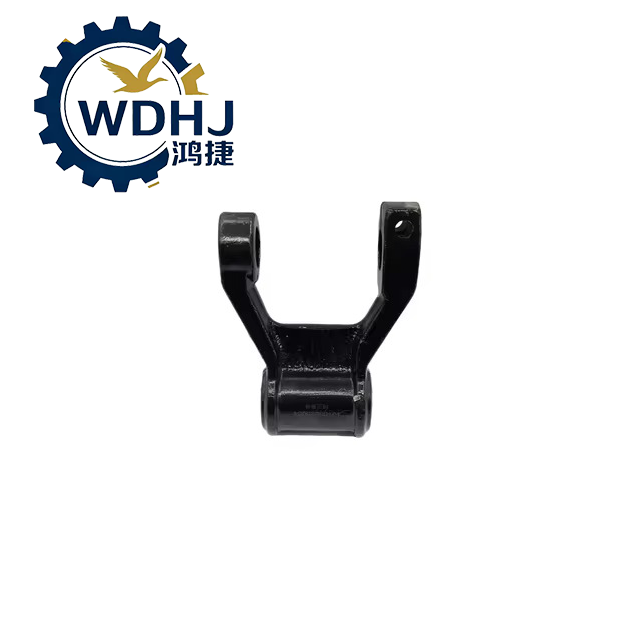

| Part Name | Front Leaf Spring Lifting Lug / Spring Earring |
| OEM Part Number | SZ970000026 |
| Brand | SHACMAN (Shaanxi Automobile) |
| Application | Heavy-Duty Truck Suspension System |
| Position | Front Suspension – Frame-to-Spring Mounting |
| Material | High-Strength Alloy Steel (e.g., 42CrMo or Equivalent) |
| Surface Treatment | Anti-Corrosion Coating (Rust-Resistant Finish) |
| Design Type | Cast/Forged Steel, Reinforced Structural Design |
| Color/Appearance | Metallic Gray with Protective Coating |
| Unit Weight | Approx. 1.5 kg |
| Package Dimensions | Approx. 20 × 20 × 10 cm (L×W×H) |
| Primary Function | Connects front leaf spring to chassis frame; ensures lateral stability and load transfer |
| Parameter | Value / Specification |
|---|---|
| Inner Diameter (I.D.) | 30 mm |
| Outer Diameter (O.D.) | 60 mm |
| Bore Diameter | 30 mm (for shackle pin insertion) |
| Mounting Hole Distance | Precision-machined (exact dimension per OEM blueprint) |
| Tensile Strength | 400 – 550 MPa |
| Impact Resistance | High (suitable for rough terrain and heavy loads) |
| Load Capacity (Per Unit) | Up to 8,000 kg (design static load) |
| Processing Method | CNC Machining + Forging/Casting |
| Heat Treatment | Quenching & Tempering (to enhance strength and toughness) |
| Environmental Resistance | Resistant to moisture, salt spray, dust, and vibration |
| Compliance Standards | Meets SHACMAN OEM technical and safety standards |
| OEM Part Number | Part Name | Applicable Truck Models | Specification & Feature |
|---|---|---|---|
| SZ970000026 / 199100520034 | Front Leaf Spring Hanger Assembly (Complete with bushing) | Delong F2000 / F3000 / New M3000 / M3000S / X3000 / X5000 / X6000 / H3000 | Standard cast steel hanger, integrated rubber bushing, 7.5T/11.5T front axle general use |
| DZ9700000025 | Front Spring Front Hanger Bracket Assembly | Delong F3000 / M3000 / Aolong | Reinforced thick cast iron, fixed front leaf spring front end |
| JZ93509520222 | Front Spring Hanger Assembly | Delong New M3000 | Light-duty suspension version, 10-hole mounting base |
| SZ970000835 | Front Spring Front Support Hanger Assembly (SCB) | Delong X3000 / New M3000 / L3000 | Upgraded nano wear-resistant bushing, highway traction truck exclusive |
| DZ95319690920 | Front Spring Fixed Hanger Assembly | Delong M3000 | Single-side front suspension bracket, dump truck special reinforcement |
| DZ9114524032 / DZ9114524031 | Front Spring Rear Hanger Assembly | Delong F3000 / X3000 / X6000 | Heavy-load reinforced model, 16-ton front axle matching |
| SZ970000737 | New Type Front Spring Rear Hanger Assembly | Delong X5000 / X6000 | Integrated lubrication nozzle, long service life for national VI trucks |
| DZ9114520012 | Front Leaf Spring Support Hanger Assembly | Delong F3000 / X3000 / X6000 | Universal spare replacement bracket, interchangeable OEM |
| SZ970000782 | Front Spring Hanger Assembly | Delong F3000 / M3000 / H3000 | Standard stock model for logistics cargo trucks |
