DZ97189361059
Shacman
| Attribute | Description |
|---|---|
| Part Number | DZ97189361059 |

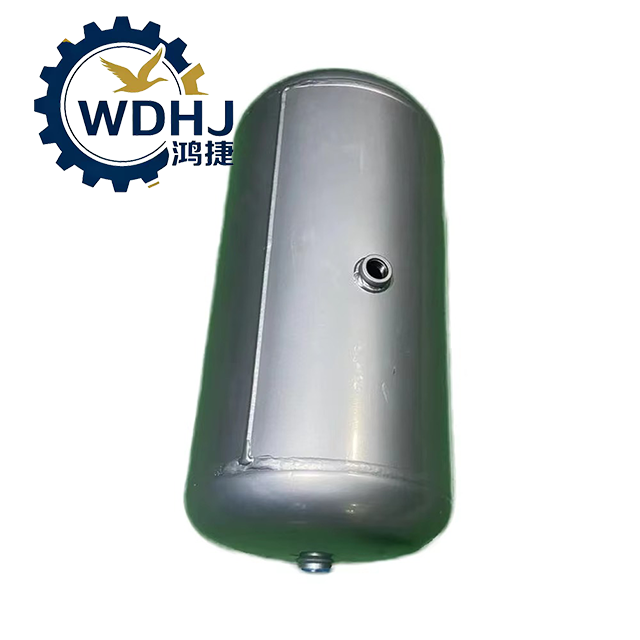

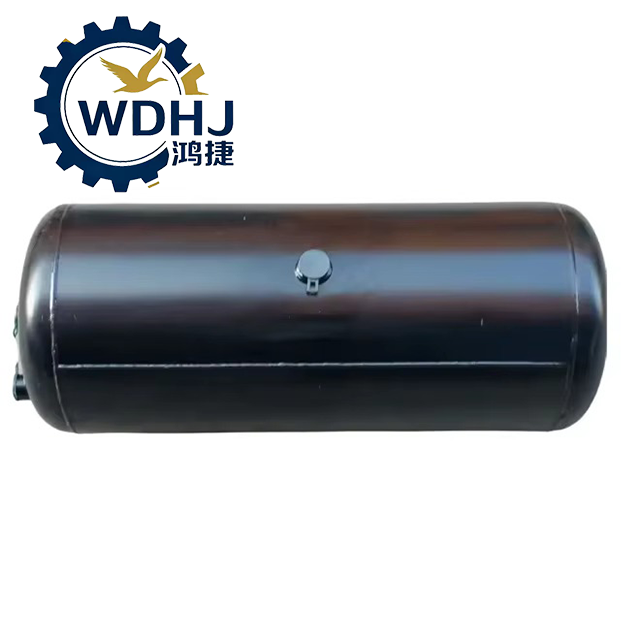

| Product Name | Aluminum Air Reservoir / Compressed Air Tank |
| OEM Status | Genuine SHACMAN Original Equipment Part |
| Application | Pneumatic Brake System & Air Auxiliary Systems |
| Vehicle Platform | SHACMAN Delong F3000, M3000(S), X3000, X5000, X6000 Series |
| Tank Capacity | 40 Liters (40L) |
| Material | High-Strength Aluminum Alloy (Corrosion-Resistant, Non-Rusting Interior) |
| Mounting Type | Frame rail-mounted with U-bolts or bracket assembly |
| Primary Function | Store compressed air, stabilize system pressure, supply air to brake and auxiliaries |
| Parameter | Specification |
|---|---|
| Capacity | 40 Liters (L) |
| Material Construction | Forged/Welded High-Strength Aluminum Alloy |
| Internal Surface | Smooth, oxidation-treated; no rust formation |
| Working Pressure | 0.8 – 1.0 MPa (≈ 116 – 145 PSI) |
| Burst Pressure (Design) | ≥ 2.5 MPa (tested during manufacturing per pressure vessel standards) |
| Port Configuration | Multi-hole (typically 5 ports) |
| Thread Size | M22 × 1.5 mm (standard for most pneumatic fittings) |
| Port Arrangement | Configured for inlet, outlet, drain, sensor, and interconnect lines |
| Drain Valve | Equipped with manual or automatic moisture ejector at bottom |
| Weight (Empty) | Approx. 6–8 kg (~40–60% lighter than equivalent steel tank) |
| Operating Temperature | -40°C to +80°C |
| Corrosion Resistance | Excellent – immune to internal rust and external oxidation |
| Dimensions (Approx.) | Ø300 mm × Length ~750 mm (varies slightly by supplier) |
| Certification | Meets Chinese GB Standards for automotive air tanks; compatible with ISO norms |
