Stabilizer Bar DZ9100680050 for New Shacman Delong X3000 M3000 F3000 Truck Parts

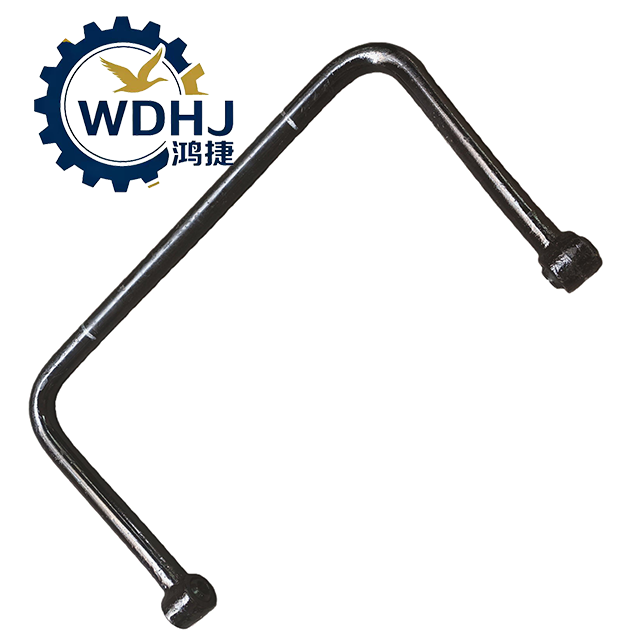

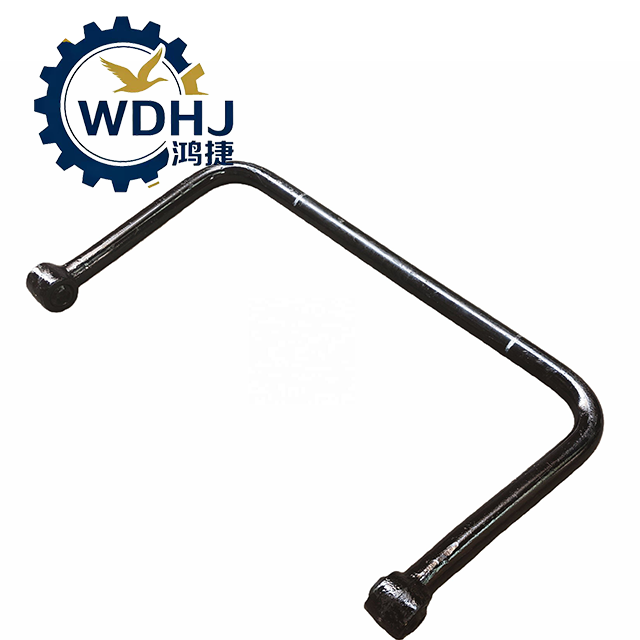

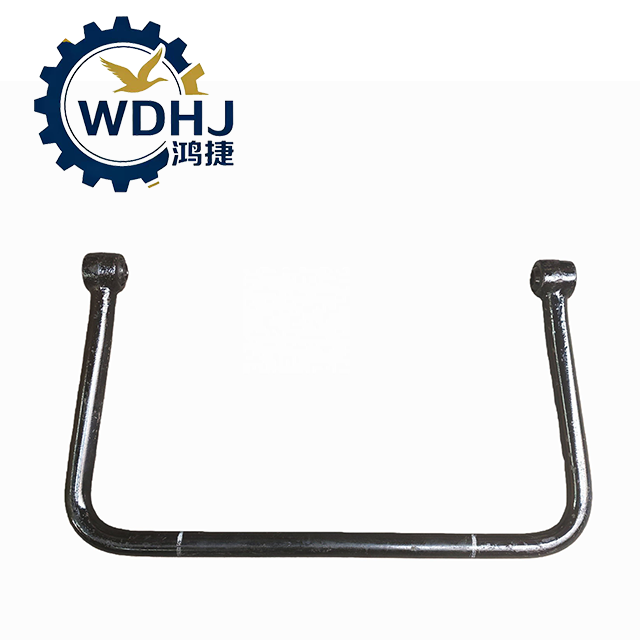

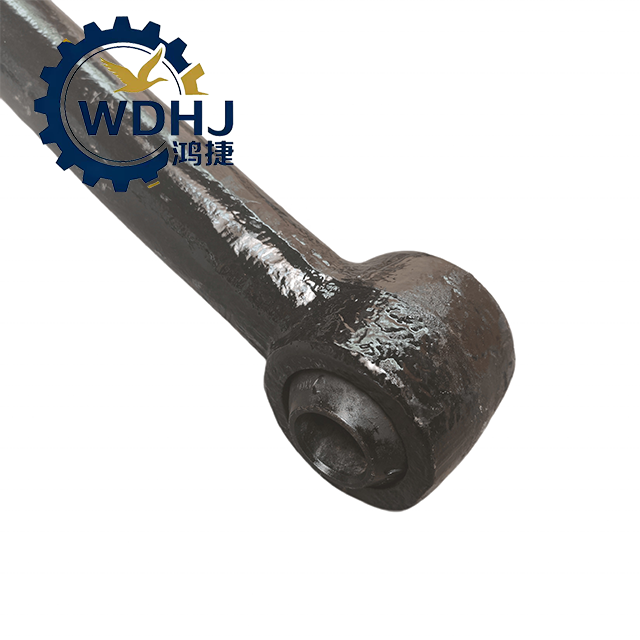

The DZ9100680050 Front Stabilizer Bar Assembly is a critical safety and handling component of the front suspension system on SHACMAN heavy-duty trucks, particularly models within the F2000, F3000, M3000, and H3000 series. Commonly known as the front anti-roll bar or sway bar, this OE-spec U-shaped torsion bar plays a vital role in improving vehicle stability by reducing body roll during cornering, lane changes, and operation on uneven terrain.

Constructed from high-strength alloy spring steel and engineered to withstand repeated twisting forces, the DZ9100680050 connects to the front axle via link rods (drop links) and is mounted to the frame rails using durable rubber bushings. It works in conjunction with leaf springs to enhance directional control, especially under heavy loads or at highway speeds — significantly lowering the risk of rollover and improving driver confidence.

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ9100680050
Brand:
Shacman

Product Description

Attribute	Description
Part Number	DZ9100680050
Product Name	Front Stabilizer Bar Assembly (Front Anti-Roll Bar / Sway Bar)
OEM Status	Genuine SHACMAN Original Equipment Part
Application	Front Suspension System – Heavy-Duty Trucks & Tractors
Vehicle Platform	SHACMAN Delong F2000, F3000, M3000, H3000 Series
Axle Compatibility	Hande (HanDe) 7.5 Ton and 9.5 Ton Front Axles
Main Function	Reduce body roll, improve steering response, enhance driving stability
Mounting Type	Frame-mounted via rubber bushings; connected to axle via link rods

Parameter	Specification
Bar Structure	U-shaped torsion bar (typical "sway bar" design)
Material	High-Strength Alloy Spring Steel (e.g., 60Si2Mn or 50CrVA)
Heat Treatment	Full quenching & tempering + shot peening for fatigue resistance
Surface Finish	Black electrophoretic coating or epoxy powder spray — excellent corrosion protection
Corrosion Resistance	Withstands >500 hours salt spray test (per GB/T standards)
Diameter (Typical)	~36–42 mm (varies slightly by load rating and model year)
Weight (Approx.)	8–12 kg
Installation Method	Secured with clamps and rubber bushings to frame; end links attach to front axle
Bushings Used	Rubber-bonded metal sleeves (e.g., 199100680054 / DZ9100680054)
Link Rod Connection	Ball-joint type drop links (allow angular movement)
Operating Principle	Resists lateral body tilt through torsional rigidity
Design Life	≥ 800,000 cycles under dynamic load testing

Part Number (OEM NO.)	Part Name	Compatible Shacman Models	Specification
81.43715.6063	Front Stabilizer Bar Assembly	Shacman Delong F3000, F2000 series, Shacman Aolong, Xuande series	Material: High-strength spring steel; Bar diameter: 30mm; Length: 1250mm; Surface treatment: Black oxide; Compatible with front suspension system of 6x4/4x2 heavy duty trucks; OEM standard fitment
DZ9100681015	Front Stabilizer Bar Assembly	Shacman Delong F3000, X3000 series	Material: 40Cr alloy steel; Quenched and tempered; Bar diameter: 32mm; Length: 1280mm; Corrosion resistance: 500-hour salt spray test; For heavy-duty transportation conditions; Direct OEM replacement
DZ9X259680029	Front Hollow Stabilizer Bar Assembly	Shacman Delong X6000, X5000 series	Material: High-carbon seamless steel pipe; Bar diameter: 35mm; Wall thickness: 5mm; Length: 1320mm; Weight reduction design; Compatible with MAN-type front axle suspension; OEM standard size
DZ93319680101	Front Stabilizer Bar Assembly	Shacman Delong X3000 series	Material: High-strength spring steel; Bar diameter: 30mm; Length: 1260mm; Surface hardness: HRC 28-32; Compatible with standard front suspension system; Includes mounting brackets and bushings
SZ965000729	Front Stabilizer Bar Assembly	Shacman Delong M3000, F3000 series	Material: Q355B steel; Bar diameter: 28mm; Length: 1200mm; Surface treatment: Zinc plating; Weight: 25kg; Compatible with light to medium duty transportation conditions; Easy installation
DZ15221431225	Front Stabilizer Bar Assembly	Shacman Delong M3000S series	Material: 45# steel; Precision machining; Bar diameter: 32mm; Length: 1240mm; With reinforced end brackets; Compatible with 10-speed/12-speed transmission models; Enhanced durability
WG9925682101	Front Stabilizer Bar Left Bracket Assembly	Shacman Delong X3000, M3000, F3000 series	Material: Cast iron; Surface treatment: Electrophoretic coating; Fitment: Left side of front stabilizer bar; Compatible with OEM stabilizer bar 81.43715.6063; Bolt hole size: M16
WG9925682121	Front Stabilizer Bar Right Bracket Assembly	Shacman Delong X3000, M3000, F3000 series	Material: Cast iron; Surface treatment: Electrophoretic coating; Fitment: Right side of front stabilizer bar; Compatible with OEM stabilizer bar 81.43715.6063; Bolt hole size: M16
DZ9X259680065	Front Stabilizer Bar Bracket Assembly	Shacman Delong X6000, X3000, F3000 series	Material: High-strength cast steel; Surface treatment: Black oxide; Fitment: Front stabilizer bar mounting; Compatible with hollow stabilizer bar DZ9X259680029; OEM standard fitment
SZ965000737	Stabilizer Bar Support Plate Assembly	Shacman Delong X3000, F3000 series	Material: High-carbon steel; Thickness: 12mm; Surface treatment: Zinc plating; Fitment: Support for front stabilizer bar; Compatible with OEM stabilizer bar assembly; Includes mounting bolts and nuts
