| Quantity: | |
|---|---|
DZ9114520215
Shacman
| Attribute | Description |
|---|---|

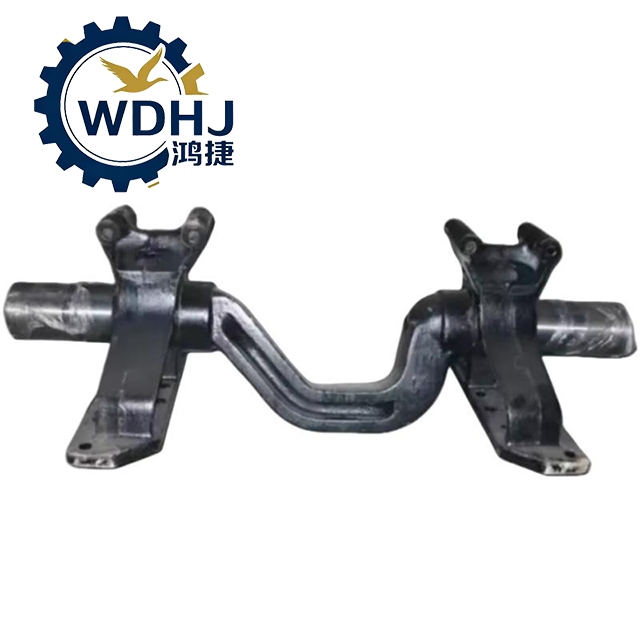

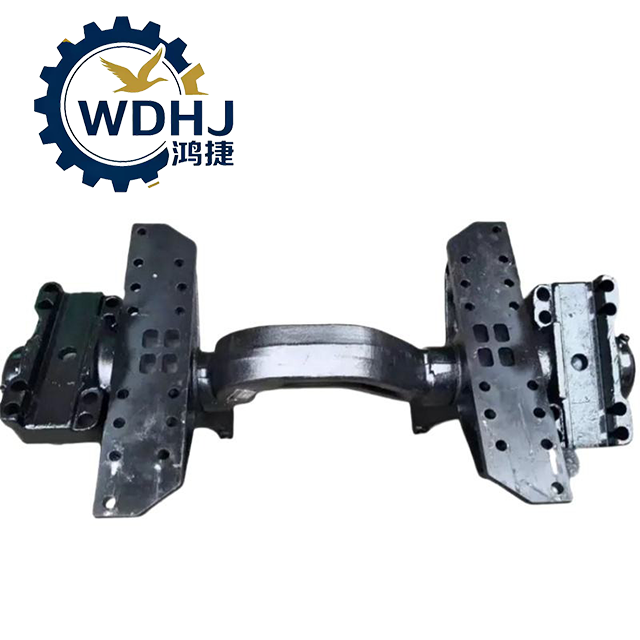

| Part Name | Balance Shaft Assembly |
| OEM Part Number | DZ9114520215 |
| Brand | SHACMAN (Shaanxi Automobile Group) |
| Application | Rear Suspension Load Balancing System |
| Function | Equalizes load between left and right rear leaf springs; enhances chassis stability |
| Position | Center-mounted transverse shaft connecting dual-side spring hangers |
| Design Type | Lever-type Mechanical Load Balancer |
| Assembly Status | Complete Unit (includes shaft, brackets, bushings, and mounting hardware) |
| Compatibility | Matches HanDe Axle-equipped SHACMAN chassis |
| Primary Use Case | Heavy-Duty Dump Trucks, Haulers, Mining & Construction Vehicles |
| Parameter | Value / Specification |
|---|---|
| OEM Number | DZ9114520215 |
| Overall Length | 786 mm (typical measurement for standard configuration) |
| Shaft Diameter | Approximately φ40–φ50 mm (exact value per model variant) |
| Material (Typical) | High-Strength Alloy Steel or Forged Carbon Steel |
| Heat Treatment | Quenched and Tempered for Enhanced Durability |
| Bushings & Bearings | Rubber-Metallic Composite Bushings (damping optimized) |
| Mounting Interface | Bolted connection to spring hangers and frame cross-member |
| Load Distribution Principle | Lever-based mechanical balancing (equal-arm rocker design) |
| Operating Environment | Suitable for -40°C to +85°C; resistant to dust, mud, vibration |
| Weight (Approximate) | 18–22 kg (varies slightly by production batch) |
